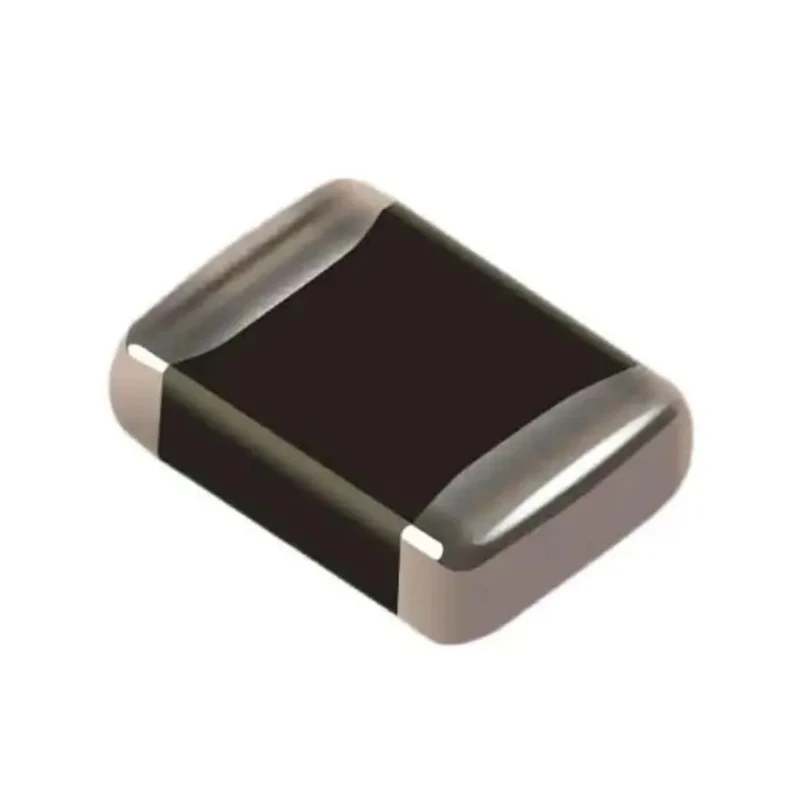

Bourns Low Voltage Surface Mount ZVHT Varistor 100 V 10 A Clamping 165 V Capacitance 100 pF 2220 Package ZV60K2220801NIR1HT
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| Material | Metal |
| THICKNESS | 1.25mm |
| Length | 5.7mm |
| Model | ZV60K2220801NIR1HT |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ZVHT |
| Energy Rating | 6.2J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 100pF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 85V dc |
| Standards/Approvals | RoHS, UL |
| Package/Case | 2220 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 60V ac |
| Clamping Voltage VC | 165V |
| Clamping Current | 10A |
| Maximum Surge Current | 800A |
| Varistor Voltage | 100 V |
Key Features
- Designed to protect sensitive electronics from high voltage surges.
- Features a capacitance of 100 pF suitable for low voltage applications.
- Surface mount design in a 2220 package ensures compact PCB layout.
- Wide operating temperature range from -55°C to 150°C.
- RoHS and UL certified for compliant industrial use.
- Maximum AC voltage 60 V and maximum DC voltage 85 V ratings.
- Energy rating of 6.2 joules supports durability against surges.
- Metal construction with 1.25 mm thickness and 5.7 mm length for robust performance.
Product Description
Bourns ZV60K2220801NIR1HT is a surface mount ZVHT series varistor designed for protecting low voltage electronic devices from transient voltage surges. It features a nominal varistor voltage of 100 V, with a clamping voltage of 165 V and clamping current capacity of 10 A, making it ideal for safeguarding sensitive circuits against voltage spikes.
This varistor offers a capacitance of 100 pF, supporting rapid response and low insertion loss in high-frequency applications. The device is packaged in a 2220 surface mount case, measuring 5.7 mm in length and 5 mm in depth with a thickness of 1.25 mm, allowing for efficient PCB space utilization.
The ZVHT varistor operates reliably across an extended temperature range from -55°C to 150°C, suitable for harsh industrial, automotive, and commercial environments. With a maximum AC voltage rating of 60 V and DC rating of 85 V, it handles common operational voltages with high surge handling capacity of up to 800 A and an energy rating of 6.2 joules.
The metal material construction and compliance with RoHS and UL standards ensure durability, safety, and environmental compatibility. This makes it an excellent choice for electronics manufacturing, industrial control systems, telecommunications equipment, automotive electrical systems, and power management circuits.
Available in tape & reel packaging, the ZV60K2220801NIR1HT varistor supports automated assembly processes, further enhancing production efficiencies. Protects against transient voltage surges in low voltage electronics. High surge current rating of 800 A with energy absorption of 6.2 J.
Wide operating temperature range caters to industrial and automotive uses. Compact 2220 surface mount package for space-constrained PCB designs. RoHS and UL approvals ensure compliance with global standards. Explore more Varistors and surge protection components at EnvMart for reliable transient voltage suppression solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal varistor voltage of this model is 100 V.
It has a maximum surge current rating of 800 A.
The clamping voltage for this varistor is 165 V.
The dimensions of the 2220 package are 5.7 mm in length, 5 mm in depth, and 1.25 mm in thickness.
This varistor operates within a temperature range of -55°C to 150°C.
The capacitance value of this model is 100 pF.
It is constructed from metal material.
This varistor is RoHS and UL certified, ensuring compliance with global standards.
It is available in tape & reel packaging, which supports automated assembly processes.
The maximum DC voltage rating for this model is 85 V.
This varistor is suitable for protecting low voltage electronic devices in applications such as industrial control systems, telecommunications equipment, and automotive electrical systems.
The energy rating of this varistor is 6.2 joules.
