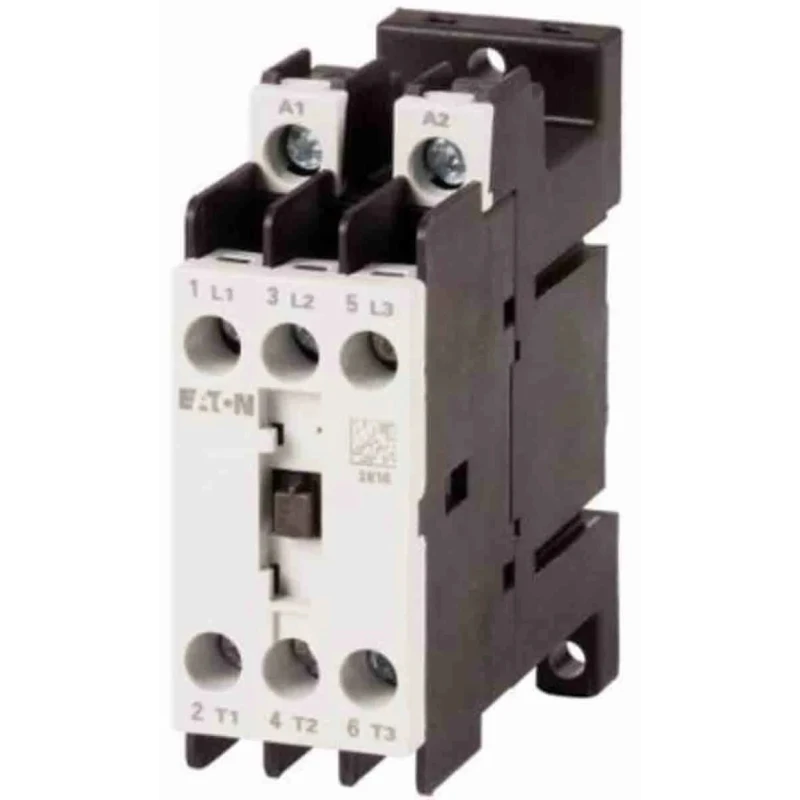

Eaton Contactor 24V dc Coil, 3-Pole, 9 A, 4 kW Motor Control DIN Rail Mount DILMT7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Function | Motor Control |
| Length | 71mm |
| Model | DILMT7 |
| Depth | 78mm |
| Width | 27mm |
| Mount Type | DIN Rail |
| Series | DILMT7 |
| Power Rating | 4kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, EN, IEC, UL |
| Contact Voltage | 660V |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for motor control applications with a 24V dc coil voltage.
- Features three poles with normal open (3 NO) contacts suitable for AC induction motor control.
- Supports contact voltage up to 660V and operational current of 9 A.
- Mounts easily on DIN rails with a screw terminal type for electrical connection.
- Operates reliably between -25°C to 55°C ambient temperature.
- Compact dimensions measuring 71 mm length, 27 mm width, and 78 mm depth.
- Certified to CSA, EN, IEC, and UL standards for safety and quality.
- Ideal for industrial, automation, and motor control applications.
Product Description
The Eaton DILMT7 Contactor is a robust motor control component featuring a 24V dc coil voltage and a power rating of 4 kW. Its 3-pole configuration allows efficient switching of three-phase motors and other inductive loads.
This contactor supports a contact voltage up to 660V and can handle a continuous current of 9 A, making it suitable for a wide range of industrial applications such as automation systems, manufacturing equipment, and HVAC motor controls. The screw type terminals provide secure connections ensuring operational reliability.
The device is designed for DIN rail mounting, facilitating quick installation and maintenance in electrical control panels. Operating temperature ranges from -25°C to 55°C ensure consistent performance under varied environmental conditions.
Compact in size with dimensions of 71 mm length, 27 mm width, and 78 mm depth, it fits well into constrained electrical cabinets while complying with multiple international standards including CSA, EN, IEC, and UL, which attest to its safety and quality certifications.
The Eaton DILMT7 Contactor finds extensive use in industrial, laboratory, manufacturing, HVAC, and water treatment sectors where reliable motor control is critical. Its 3 NO configuration standardly manages normal motor switching operations efficiently.
Designed for motor control applications with a 24V dc coil voltage. Features three poles with normal open (3 NO) contacts suitable for AC induction motor control. Supports contact voltage up to 660V and operational current of 9 A.
Mounts easily on DIN rails with a screw terminal type for electrical connection. Operates reliably between -25°C to 55°C ambient temperature. Compact dimensions measuring 71 mm length, 27 mm width, and 78 mm depth. Certified to CSA, EN, IEC, and UL standards for safety and quality.
Ideal for industrial, automation, and motor control applications. Explore more products like the Eaton DILMT7 Contactor in the Automation & Control Gear category on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMT7 Contactor has a power rating of 4 kW.
This model operates with a 24V dc coil voltage.
It features a 3-pole configuration with normal open (3 NO) contacts.
The contactor supports a maximum contact voltage of up to 660V.
The operational current rating is 9 A.
The dimensions are 71 mm in length, 27 mm in width, and 78 mm in depth.
It operates reliably between -25°C and 55°C.
This contactor is designed for DIN rail mounting.
It is certified to CSA, EN, IEC, and UL standards.
The Eaton DILMT7 features screw type terminals for electrical connections.
It is suitable for motor control applications in industrial, automation, and HVAC systems.
The normal state configuration is 3 NO (normal open) contacts.
