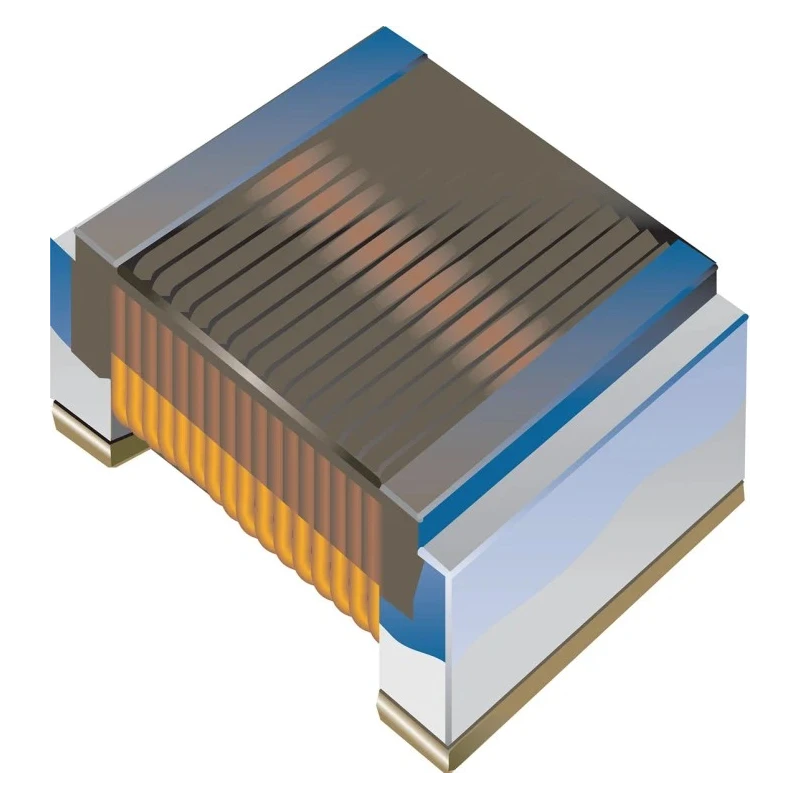

Bourns 0603 Unshielded Wirewound Surface Mount Inductor Ceramic Core 5.1nH ±5% 700mA CW161009A

Free Delivery in India | Lowest Global Shipping Charges

Bourns 0603 Unshielded Wirewound Surface Mount Inductor Ceramic Core 5.1nH ±5% 700mA CW161009A

Name: Bourns 0603 Unshielded Wirewound Surface Mount Inductor Ceramic Core 5.1nH ±5% 700mA CW161009A
Brand: BOURNS
SKU: 400074
Price: 0.12 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	Malaysia
Brand	Bourns
Height	0.9mm
Length	1.65mm
Model	CW161009A
Depth	1.15mm
Packaging	Tape & Reel
Series	CW161009A
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ceramic
Inductance	5.1nH
Standards/Approvals	RoHS
Package/Case	0603
Maximum DC Current	700mA
Maximum DC Resistance	150mΩ
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	5.7GHz
Minimum Quality Factor	18
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Ceramic core provides stable electrical characteristics under varying temperatures.
Compact 0603 package suitable for space-constrained PCB layouts.
Maximum DC current of 700mA supports moderate power handling.
High self-resonant frequency of 5.7GHz ensures performance in RF applications.
Halogen-free construction complies with environmental regulations.
RoHS compliant ensuring eco-friendly manufacturing standards.
Minimum quality factor of 18 guaranteeing efficient inductance quality.
Automotive standard AEC-Q200 capable for use in automotive electronics.

Product Description

Bourns CW161009A is a wirewound surface mount inductor featuring a ceramic core which ensures stable electrical characteristics. This 0603 package inductor offers an inductance value of 5.1nH with a tolerance of ±5%, making it ideal for precision RF and high-frequency applications. The maximum DC current rating is 700mA, providing reliable performance in moderate power circuits.

This inductor exhibits a high self-resonant frequency of 5.7GHz and a minimum quality factor of 18, optimizing its behavior in demanding radio frequency environments. Manufactured following the automotive standard AEC-Q200, the component supports use in automotive electronics as well as general industrial applications.

The product operates reliably across a wide temperature range of -40°C to 125°C and is RoHS compliant with a halogen-free design, ensuring compliance with environmental standards. Its surface mount termination style supports efficient automated PCB assembly.

Ceramic core provides stable electrical characteristics under varying temperatures. Compact 0603 package suitable for space-constrained PCB layouts. Maximum DC current of 700mA supports moderate power handling. High self-resonant frequency of 5.7GHz ensures performance in RF applications.

Halogen-free construction complies with environmental regulations. RoHS compliant ensuring eco-friendly manufacturing standards. Minimum quality factor of 18 guaranteeing efficient inductance quality. Automotive standard AEC-Q200 capable for use in automotive electronics.

Operating temperature range from -40°C to 125°C for reliability in harsh environments. Surface mount termination style eases automated assembly processes.

The Bourns CW161009A inductor is suitable for use in electronics manufacturing, automotive, telecommunications, industrial controls, and RF circuit design applications. For additional designs and reference documents, manufacturers provide resources such as 3D models, design software compatibility, and technical documentation. Browse more Surface Mount Inductors on EnvMart for matching your design requirements.
