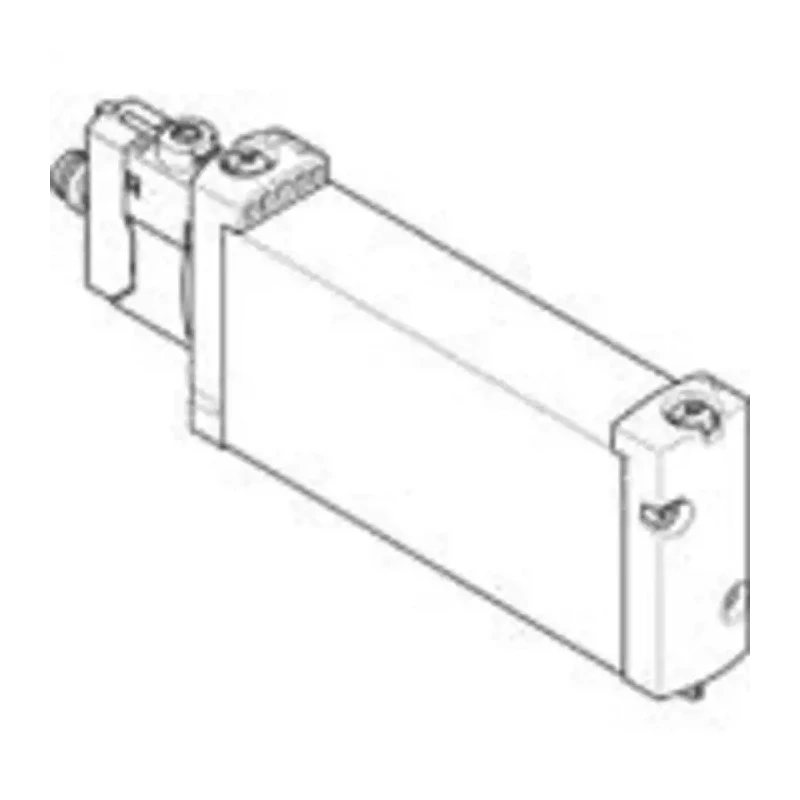

Festo Pneumatic Solenoid Valve 5/2 Solenoid VUVG Series 24V DC Aluminium Alloy Body VUVG-B18-M52-RZT-F-1R8L
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Model | VUVG-B18-M52-RZT-F-1R8L |
| Width | 18mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 2 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 1000L/min |
| Standards/Approvals | cULus, CE, RoHS |
| Minimum Pilot Pressure | -0.9bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Manifold Block |
| Maximum Pilot Pressure | 8bar |
| Solenoid Type | Single |
| Port Gender | Male |
| Solenoid Power Consumption | 1W |
Key Features
- Operates at 24V DC voltage with a single solenoid type design.
- Features a 5-port, 2-position valve function suitable for pneumatic applications.
- Constructed with Aluminium Alloy body and Nitrile Rubber seals for enhanced durability.
- Maximum operating pressure is 10 bar with maximum flow rate of 1000 L/min.
- Designed for manifold mounting with male port gender and manifold block electrical connection.
- Operating temperature range from -5°C to 60°C ensures versatility.
- Solenoid power consumption is low at 1 watt for energy efficiency.
- Complies with cULus, CE, and RoHS standards for safety and environmental compliance.
Product Description
Festo VUVG-B18-M52-RZT-F-1R8L is a high-quality Pneumatic Solenoid Valve from the VUVG Series designed for industrial pneumatic control applications. This 5/2 solenoid valve operates on 24V DC voltage with a single solenoid actuator, providing precise valve switching with 2 positions for controlling air flow.
The valve features an Aluminium Alloy body for lightweight durability and uses Nitrile Rubber (NBR) seals enhancing chemical resistance and longevity. It supports a maximum operating pressure of 10 bar and delivers a maximum flow rate of 1000 L/min, making it suitable for medium to high flow pneumatic systems.
Installation is straightforward due to manifold mounting with male ports and a manifold block electrical connection. The solenoid power consumption is optimized at only 1 watt, ensuring minimal power usage in continuous operation. It operates effectively within a temperature range of -5°C to 60°C, suitable for diverse industrial environments.
For vacuum operation, the valve has a port for external pilot air supply (port 12/14), positioned on the valve for in-line types and on the manifold rail for sub-base types, enhancing operational flexibility.
The product complies with rigorous international standards including cULus, CE, and RoHS, guaranteeing reliable performance and safety.
Manufactured in Germany, this valve meets high manufacturing quality standards and is ideal for use in industrial automation, manufacturing lines, pneumatic control systems, and HVAC applications.
Operates at 24V DC with single solenoid actuation. 5 ports and 2 positions configuration for pneumatic control. Aluminium Alloy body and NBR seal for durability. Maximum pressure rating of 10 bar and maximum flow rate 1000 L/min.
Manifold mount type with male ports and manifold block electrical connection. Wide operating temperature range from -5°C to 60°C. Low solenoid power consumption of 1 watt for efficient operation. Compliant with cULus, CE, and RoHS standards.
External pilot air supply port for vacuum operation included. German manufactured quality and reliability. Explore the extensive range of Pneumatic Solenoid Valves at EnvMart for efficient industrial fluid power control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model has a maximum flow rate of 1000 L/min.
It operates at 24V DC voltage.
The valve features an Aluminium Alloy body and Nitrile Rubber (NBR) seals.
The operating temperature range is from -5°C to 60°C.
This model has 5 ports.
It uses a manifold block electrical connection type.
The solenoid power consumption is low at 1 watt.
It has a 5/2 valve function suitable for pneumatic applications.
This product complies with cULus, CE, and RoHS standards.
Yes, it is designed for manifold mounting with male ports.
The minimum pilot pressure is -0.9 bar.
