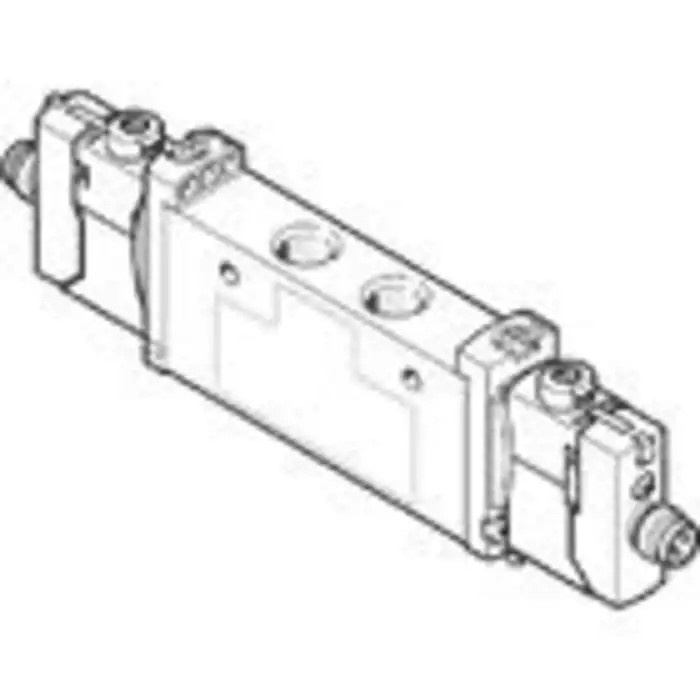

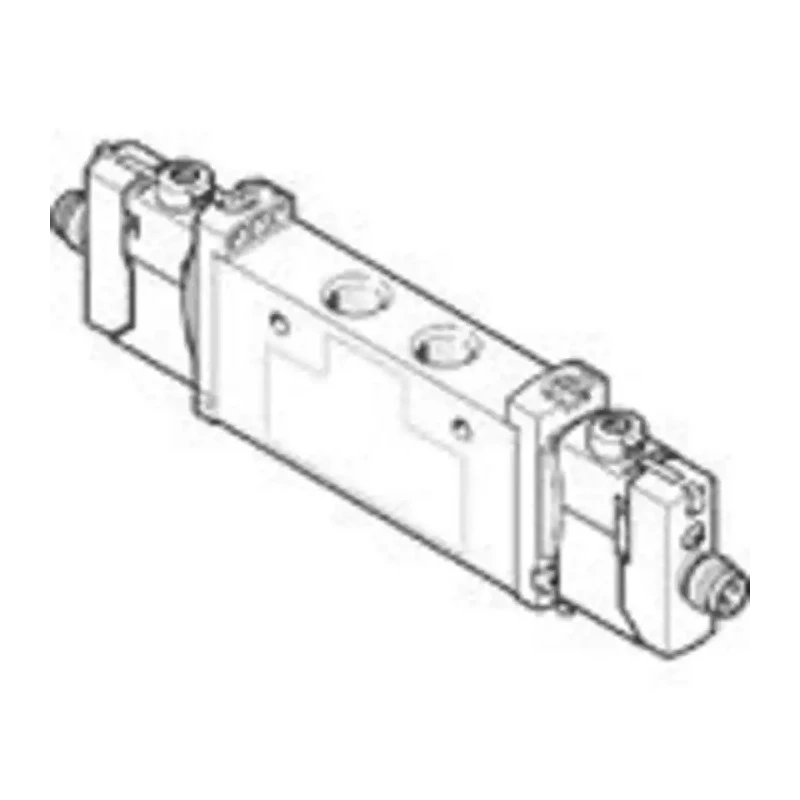

Festo Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 VUVG Series 24V DC VUVG-L14-T32C-MT-G18-1R8L
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVG-L14-T32C-MT-G18-1R8L |
| Width | 14mm |
| Mount Type | In-Line |
| Series | VUVG |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 4 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 550L/min |
| Standards/Approvals | CSA, cULus, RoHS |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 3.5bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | Electrical Connection Plate |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
| Festo Solenoid Valve - 3/2 Solenoid G 1/8 VUVS Series 24V dcBrand | Festo |
Key Features
- Features a single solenoid type with an in-line mount design.
- Constructed from aluminium alloy body with nitrile rubber (NBR) seals for durability.
- Supports a maximum operating pressure of 8 bar and maximum flow rate of 550 L/min.
- Operates within temperature range of -5°C to 60°C.
- Designed with 3 ports, female port gender, and electrical connection plate type.
- Certified with CSA, cULus, RoHS standards ensuring safe industrial usage.
- Compact width of 14 mm and 4 positions provide precise control.
- Max pilot pressure up to 8 bar and minimum pilot pressure of 3.5 bar.
Product Description
Festo VUVG-L14-T32C-MT-G18-1R8L is a pneumatic solenoid valve from the VUVG series designed for industrial fluid power applications. It operates as a 3/2 normally closed (NC) valve with a G 1/8 connection thread standard and a single solenoid type actuation.
This valve features durable aluminium alloy body construction paired with nitrile rubber (NBR) seals to ensure reliable operation under varied industrial conditions. It supports a maximum operating pressure of 8 bar and allows a maximum flow rate of 550 litres per minute, making it suitable for high-efficiency pneumatic control systems.
The valve operates efficiently within a temperature range from -5°C up to 60°C. It has an in-line mounting type and comes with a compact width of 14 mm, facilitating easy integration into pneumatic assemblies with limited space.
The internal pilot air supply can be chosen with operating pressures between 1.5 to 8 bar depending on the valve configuration. The valve offers electrical connection via an electrical connection plate and consumes just 1 W of solenoid power, contributing to energy-efficient system design.
It meets various international standards including CSA, cULus, and RoHS certifications, ensuring compliance with safety and environmental regulations. The valve is designed with 4 positions and 3 ports with female port gender connections for optimized pneumatic control applications.
Features a single solenoid with in-line mounting type. Durable aluminium alloy body with nitrile rubber seals. Maximum operating pressure of 8 bar and flow rate of 550L/min. Operating temperature range from -5°C to 60°C.
Compact 14 mm width and 4-position configuration. Compliant with CSA, cULus, and RoHS standards. Electrical connection plate type with 1 W power consumption. Suitable for industrial pneumatic valve applications including manufacturing, automation, HVAC, and fluid control systems.
This pneumatic solenoid valve from Festo offers precise, reliable control of pneumatic actuators and systems in industrial environments. Its robust design and certifications make it a trusted choice for optimizing pneumatic valve functions.
Explore more Pneumatic Solenoid Valves and related industrial valves in the Industrial Supplies category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic solenoid valve is 8 bar.
This model supports a maximum flow rate of 550 litres per minute.
It operates efficiently within a temperature range of -5°C to 60°C.
This valve is designed with 3 ports.
It uses a single solenoid type actuation.
The compact width of this valve is 14 mm.
The body is constructed from aluminium alloy, and it features nitrile rubber (NBR) seals.
It is certified with CSA, cULus, and RoHS standards.
The minimum pilot pressure for this valve is 3.5 bar.
It features an electrical connection plate type for its electrical connections.
The country of origin for this valve is Germany.
The valve functions as a 3/2 normally closed (NC) valve.
