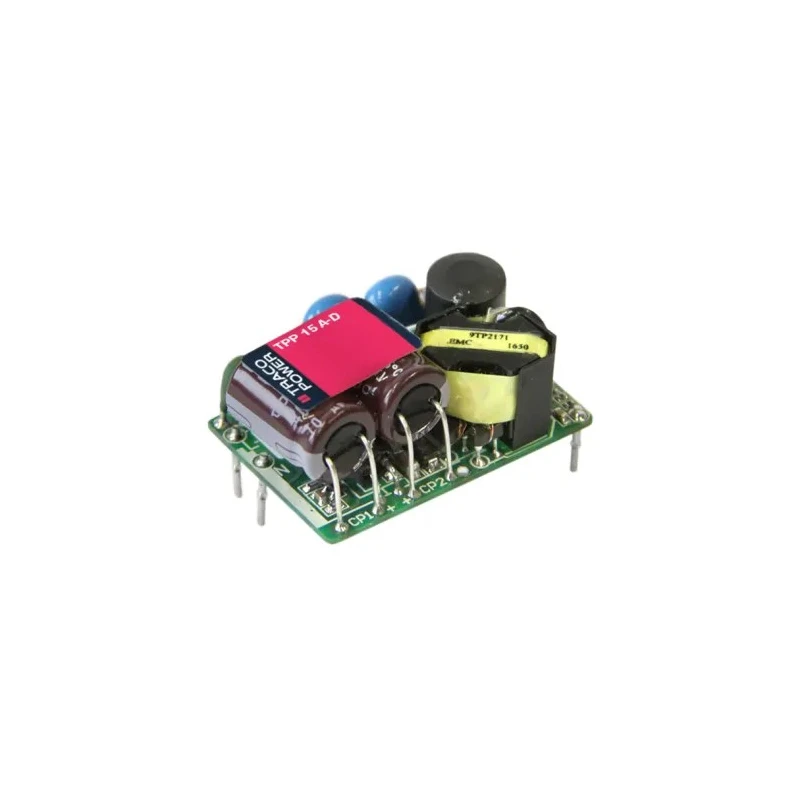

TRACOPOWER Switching Power Supply 5V DC 15W PCB Mount, 3A Output Current, TPP 15-105A-D

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 5V DC 15W PCB Mount, 3A Output Current, TPP 15-105A-D

Name: TRACOPOWER Switching Power Supply 5V DC 15W PCB Mount, 3A Output Current, TPP 15-105A-D
Brand: TRACOPOWER
SKU: 399351
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	15W
Efficiency	86%
Length	38.1mm
Model	TPP 15-105A-D
Depth	20.2mm
Gross Weight	16.5g
Width	25.4mm
Mount Type	PCB
Series	TPP 15A-D
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	5V dc
SMPS Output Current	3A
Minimum Input Voltage	85V ac

Key Features

Compact open frame design measuring 38.1mm x 25.4mm x 20.2mm for space-efficient integration.
High efficiency of 86% reduces energy loss and operational costs.
Wide input voltage range from 85V AC to 264V AC supports versatile power sources.
Operates reliably in temperatures from -40°C up to 85°C for varied environments.
Medical approvals ensure suitability in sensitive medical and BF equipment applications.
Supports operation up to 5000m altitude ensuring functionality in high elevation conditions.
Safety standards compliance includes UL 62368-1, IEC/EN 62368-1, IEC/EN 60601-1 and ANSI/AAMI ES 60601-1.
Low earth leakage current under 75 μA ensures patient safety in medical use.

Product Description

TRACOPOWER TPP 15-105A-D is a switching power supply designed for PCB mounting that provides a stable 5V DC output with a power capacity of 15 Watts and a maximum output current of 3 Amperes. Its compact size of 38.1mm length, 25.4mm width, and 20.2mm depth allows easy integration into electronic assemblies and systems.

Featuring a high efficiency rate of 86%, this unit minimizes energy loss and heat generation, which extends the lifespan of connected components and reduces electricity consumption. It supports an extensive input voltage range from 85 V AC to 264 V AC, ensuring compatibility with global power sources and reliable operation even in fluctuating power environments.

The power supply operates efficiently within a temperature range of -40°C to +85°C and can function at altitudes up to 5000 meters, making it suitable for use in a variety of industrial, automation, and medical applications. The product carries essential certifications such as UL 62368-1, IEC 62368-1, IEC 60601-1, EN 62368-1, EN 60601-1, and ANSI/AAMI ES 60601-1, highlighting its safety and reliability for medical device incorporation, particularly sensitive BF applications due to its very low earth leakage current below 75 microamperes.

This power supply is designed for robust performance and compact form factor, ideal for use in medical equipment, industrial automation, electronic control systems, and embedded environments requiring efficient and safe DC power delivery.

Compact open frame design measuring 38.1mm x 25.4mm x 20.2mm for space efficiency. High energy efficiency of 86% reduces operational costs and heat emission. Wide input voltage range (85V AC to 264V AC) enables global compatibility.

Medical device compliant with IEC/EN/ANSI standards for safety and performance. Operates reliably between -40°C and +85°C and up to 5000m altitude. Low earth leakage current (.
