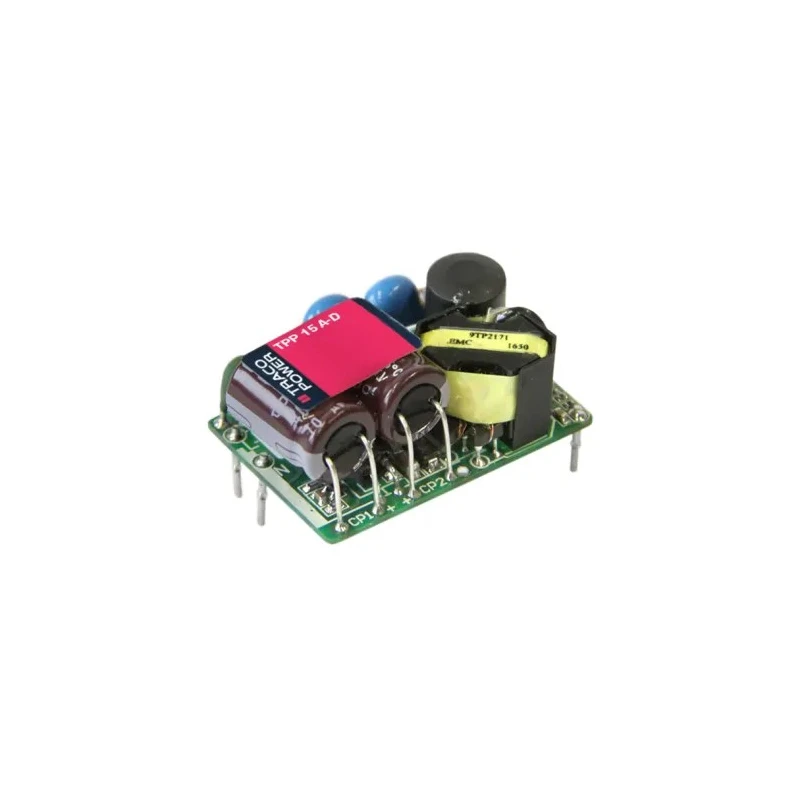

TRACOPOWER Switching Power Supply 36V 15W PCB Mount with 1 Output TPP 15-136A-D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 15W |
| Efficiency | 88% |
| Length | 38.1mm |
| Model | TPP 15-136A-D |
| Depth | 20.2mm |
| Gross Weight | 16.5g |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | TPP 15A-J |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 36V |
| SMPS Output Current | 417mA |
| Minimum Input Voltage | 85V ac |
Key Features
- The power supply provides a maximum output voltage of 36V and output current of 417mA.
- It features a compact PCB mount design measuring 38.1mm length, 25.4mm width, and 20.2mm depth.
- Operating temperature ranges from -40°C up to 85°C, with 50% load derating above 70°C.
- Constructed with reinforced double I/O isolation ensuring suitability for BF body floating applications.
- It offers high efficiency of approximately 88% suitable for high power density applications.
- Designed to operate up to 5000m altitude with low earth leakage current below 75 μA.
- It complies with multiple safety and performance standards including ANSI/AAMI ES 60601-1 and UL 62368-1.
Product Description
TRACOPOWER TPP 15-136A-D Switching Power Supply is a robust PCB mount AC/DC power supply designed for medical and industrial applications requiring low leakage current and high reliability.
It provides a single stabilized output of 36V with a power rating of 15W and an output current capacity of 417mA. The unit features reinforced double input/output isolation which results in an earth leakage current below 75 μA, making it ideal for BF (body floating) applications.
Operating temperature range covers -40°C to +70°C continuously, and up to +85°C with 50% load derating, allowing versatile deployment in demanding environments and altitudes up to 5000 meters.
This power supply delivers an efficiency of about 88%, ensuring reduced heat generation and energy savings in compact packaging measuring 38.1mm (L) x 25.4mm (W) x 20.2mm (D). Weight is ultra-light at 16.5 grams.
Built to international standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1, this model guarantees compliance with safety and electromagnetic compatibility requirements for medical devices and industrial electronics.
The power supply provides a maximum output voltage of 36V and output current of 417mA. Compact PCB mount format with dimensions 38.1mm x 25.4mm x 20.2mm and weight 16.5g. Reinforced double input/output isolation with earth leakage current below 75 μA suitable for BF applications.
Wide operating temperature range from -40°C to 85°C with derating above 70°C. High efficiency of around 88% to ensure energy saving and thermal efficiency. Compliance with applicable international safety and performance standards.
Designed for operation up to 5000m altitude. Ideal for industrial, medical, laboratory, and embedded electronics applications requiring dependable low leakage power supplies. Explore the Electronics & Electricals category for more advanced switching power supplies and power modules suited for diverse applications.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 36V.
It provides an output current capacity of 417mA.
This unit has dimensions of 38.1mm in length, 25.4mm in width, and 20.2mm in depth.
The efficiency of this model is approximately 88%.
It operates within a temperature range of -40°C to 85°C, with 50% load derating above 70°C.
The weight of this unit is 16.5 grams.
Yes, it is designed for medical applications and complies with multiple safety standards including ANSI/AAMI ES 60601-1.
The maximum input voltage is 264V.
It is designed for PCB mounting.
It complies with safety and performance standards including UL 62368-1 and IEC 60601-1.
The input voltage range is from 85V AC to 264V AC.
