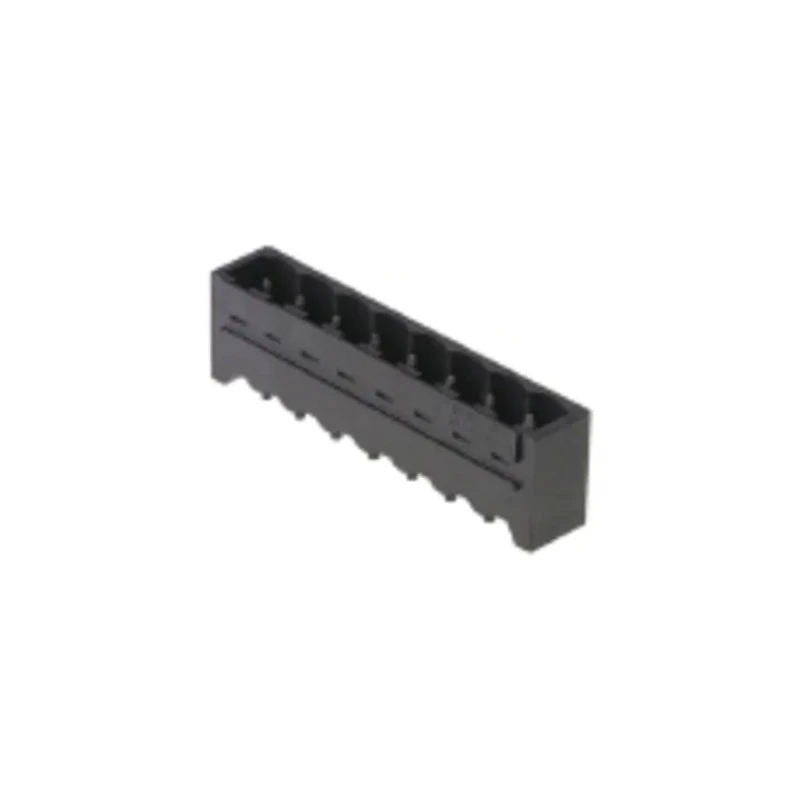

Weidmüller SL Series Pluggable Terminal Block, 7-Contact, 5.08 mm Pitch, 1 Row, Male Connector, 400V, 18.5A 1838260000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Straight |
| Current | 18.5A |
| Length | 15.2mm |
| Depth | 8.5mm |
| Width | 37.46mm |
| Housing Material | Copper Magnesium Alloy, Liquid Crystal Polymer Fibreglass |
| Series | SL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 7 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- The terminal block supports a current rating of 18.5A and voltage up to 400V.
- Features a male connector gender with straight orientation, suited for solder wire connection.
- Housing is made from copper magnesium alloy combined with liquid crystal polymer fiberglass for high durability.
- Compact dimensions include 15.2 mm length, 37.46 mm width, and 8.5 mm depth.
- Designed for high-temperature resistance and optimized for surface-mount technology (SMT) processing.
- Solder flange options protect solder joints and enable mechanical stress resistance.
- Available packaging includes box or anti-static roll (tape-on-reel) for diverse assembly needs.
Product Description
Weidmüller 1838260000 SL Series Pluggable Terminal Block is engineered for industrial and electronic applications requiring reliable electrical connections. It features 7 contacts arranged in a single row with a precise 5.08 mm pitch, supporting voltages up to 400V and currents up to 18.5A. The male connector with straight orientation facilitates easy solder wire connection with high mechanical stability.
The housing material utilizes a blend of copper magnesium alloy and liquid crystal polymer fiberglass, ensuring outstanding durability and high-temperature resistance. This terminal block is optimized for surface-mount technology (SMT) processes, enabling automated assembly on printed circuit boards (PCBs).
Dimensionally compact, the component measures 15.2 mm in length, 37.46 mm in width, and 8.5 mm in depth, making it suitable for space-constrained installations. The series supports configurations with open, closed or screw flange options, where the solder flange replaces mechanical fastening, providing protection against mechanical stresses on solder joints.
Additional design features include short solder pins (1.5 mm or 3.2 mm) guiding double-sided PCB mounting and minimizing solder paste usage without compromising connection strength. Availability in either box packaging or on anti-static tape reels accommodates various manufacturing requirements.
The product is suitable for electronics manufacturing, industrial automation, power distribution, and control gear applications. Its robust build quality and material selection ensure long-term reliability under demanding environmental conditions.
The modular design allows easy integration into complex connector systems. Due to the detailed engineering, it is ideal for high-density PCB layouts requiring secure and stable electrical terminations.
Explore the Weidmüller SL Series in EnvMart’s Electronics & Electricals category to find complementary connectors and terminal block accessories for your industrial and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 18.5A and a voltage rating of up to 400V.
This terminal block features a pitch of 5.08 mm and has 7 contacts arranged in a single row.
The housing is made from a blend of copper magnesium alloy and liquid crystal polymer fiberglass for enhanced durability.
It measures 15.2 mm in length, 37.46 mm in width, and 8.5 mm in depth.
It utilizes a solder wire connection method for secure electrical connections.
The male connector is designed with a straight orientation for easy installation.
Yes, it is optimized for surface-mount technology (SMT) processing, allowing for automated assembly on PCBs.
It is available in box packaging or on anti-static tape reels to accommodate various manufacturing needs.
It is suitable for electronics manufacturing, industrial automation, power distribution, and control gear applications.
The design includes solder flange options that protect solder joints and provide resistance against mechanical stress.
The terminal block is manufactured in Germany.
Its compact dimensions and modular design allow for easy integration into complex connector systems, making it suitable for high-density layouts.
