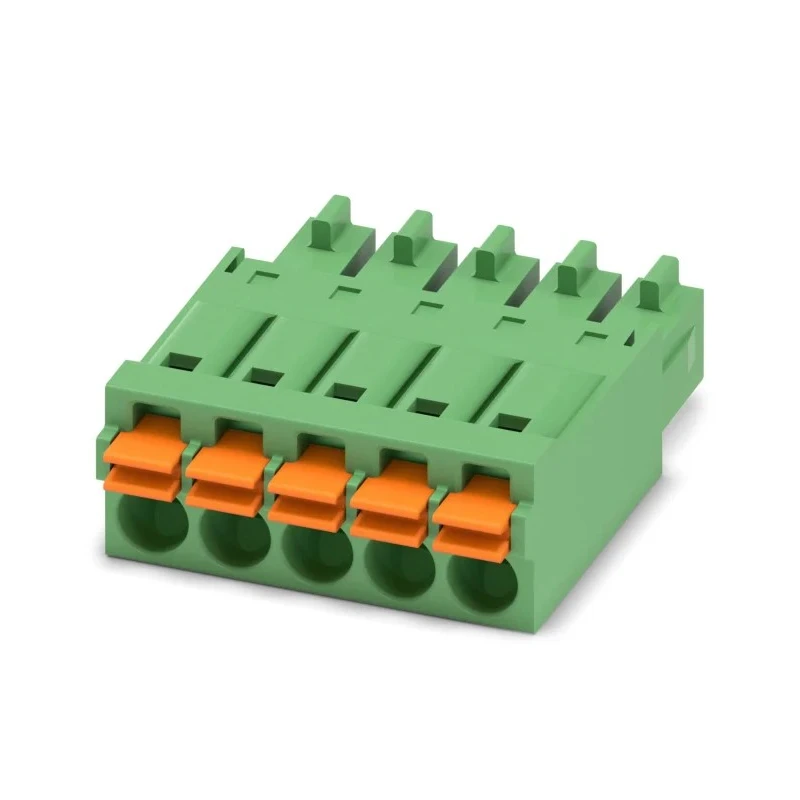

Phoenix Contact Pluggable Terminal Block FMC 1.5/5-ST-3.5, 5-Contact, 3.5 mm Pitch, 320 V, 8 A, Polyamide Housing 1952296

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block FMC 1.5/5-ST-3.5, 5-Contact, 3.5 mm Pitch, 320 V, 8 A, Polyamide Housing 1952296

Name: Phoenix Contact Pluggable Terminal Block FMC 1.5/5-ST-3.5, 5-Contact, 3.5 mm Pitch, 320 V, 8 A, Polyamide Housing 1952296
Brand: PHOENIX CONTACT
SKU: 399128
Price: 5.37 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	21.9mm
Model	1952296
Depth	7.75mm
Width	18.25mm
Housing Material	Polyamide
Series	FMC 1.5/5-ST-3.5
Number of Rows	1
Pitch	3.5mm
Number of Contacts	5
Connector Gender	Female
Minimum Wire Size mm²	0.14mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Push-in Spring
PCB connector, nominal current	8 A, rated voltage (III/2): 160 V, number of positions: 5, pitch: 3.5 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin

Key Features

Constructed with durable polyamide housing for electrical insulation.
Push-in spring connection method ensures secure and reliable wire contacts.
Designed for a single row configuration to optimize PCB layout.
Supports wire sizes from 0.14 mm² (24 AWG) to 0.14 mm² (12 AWG), suitable for varied wiring requirements.
The green-colored terminal block provides easy visual identification on boards.
Compact dimensions with length 21.9 mm, width 18.25 mm, and depth 7.75 mm.
Ideal for industrial and electronic applications requiring pluggable terminal connections.
No specific standards or approvals, but complies with industry design conventions.

Product Description

Phoenix Contact 1952296 FMC 1.5/5-ST-3.5 Pluggable Terminal Block is a high-quality PCB connector designed for reliable electrical connections in industrial and electronic applications. It features 5 contacts arranged in a single row with a 3.5 mm pitch, suitable for compact circuit board layouts.

Operating at a nominal current of 8 A and rated voltage of 320 V, this terminal block supports wire sizes from 0.14 mm² (24 AWG) to 0.14 mm² (12 AWG). The connection is made via a push-in spring method, which provides a secure and vibration-resistant contact without the need for screws.

The housing is made from robust polyamide material, offering excellent electrical insulation and mechanical strength, while its green color facilitates easy identification.

With dimensions of 21.9 mm length, 18.25 mm width, and 7.75 mm depth, this terminal block is designed for space-saving PCB mounting in automation, control systems, and power connector applications. It has a tin-plated contact surface to enhance conductivity and corrosion resistance.

Durable polyamide housing offers insulation and strength. Push-in spring connection for tool-free wiring. 5 contact positions with 3.5 mm pitch for compact PCB integration. Operational current rated at 8 A and voltage at 320 V.

Compatible with wire sizes from 0.14 mm² to 0.14 mm², supporting AWG 24 to AWG 12. Suitable for industrial automation, power distribution, and electronics manufacturing. Green color improves visibility and wiring organization.

Tin-plated contacts enhance electrical performance and durability.

This Phoenix Contact terminal block is an excellent choice for engineers and designers needing reliable, pluggable connectors for electronic components, power connectors, and industrial control gear systems. Explore other Phoenix Contact connectors and components on EnvMart for comprehensive solutions.
