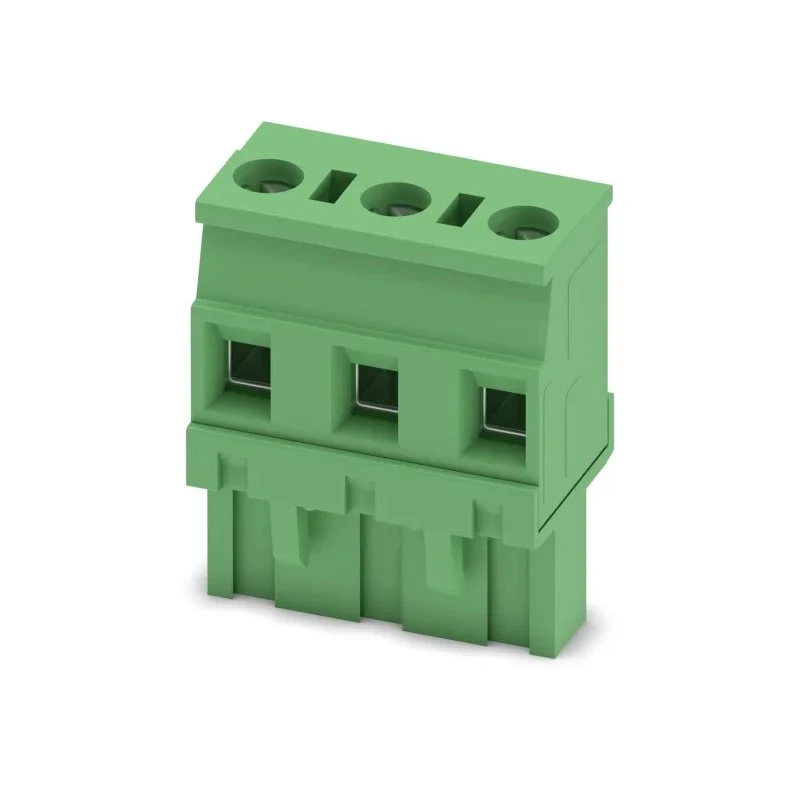

Phoenix Contact GMVSTBR 2.5/3-ST-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 12A, 1kV Voltage, 1 1832536
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Right Angle |
| Current | 12A |
| Length | 12.6mm |
| Model | 1832536 |
| Depth | 26mm |
| Width | 20.82mm |
| Housing Material | Polyamide |
| Series | GMVSTBR 2.5/3-ST-7.62 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin |
Key Features
- Features a green polyamide housing with right angle orientation for PCB mounting.
- Offers a nominal current rating of 12 A and voltage rating of 1 kV for reliable performance.
- Accommodates wire sizes from 24 AWG to 12 AWG with screw connection and tension sleeve.
- Compact dimensions of 12.6 mm length, 20.82 mm width, and 26 mm depth maximize board packing efficiency.
- Flame-retardant construction ensures safety by minimizing fire hazards.
- RoHS compliant for environmental safety.
- Designed with tin contact surfaces and mechanical durability for long-term use.
- Suitable for demanding industrial applications such as automotive manufacturing and food processing.
Product Description
Phoenix Contact 1832536 pluggable terminal block is a 3-contact connector with a 7.62 mm pitch and 1 row, designed for reliable PCB connections in industrial applications. It is rated for a nominal current of 12 A and a rated voltage of 1 kV, making it suitable for power, data, and signal transmission with enhanced safety.
The terminal block features a green polyamide housing that is flame-retardant, providing protection against fire hazards and electrical shocks. Its right angle orientation and compact footprint with dimensions of 12.6 mm length, 20.82 mm width, and 26 mm depth allow for efficient PCB board layout and space utilization.
The connector supports a wire size range from 24 AWG (minimum) to 12 AWG (maximum) with a screw connection method enhanced by a tension sleeve. This design secures wires firmly, reducing the need for frequent re-tightening and ensuring stable electrical contact. The contact surfaces are tin-plated, promoting corrosion resistance and longevity.
The GMVSTBR 2.5/3-ST-7.62 series terminal block complies with RoHS standards, confirming it is free from harmful substances. Its robust contact geometry is engineered to withstand electrical surges of up to 6 kV and mechanical wear over extended periods, making it ideal for applications in automotive manufacturing, food processing, and other industrial environments requiring dependable electrical connections.
Green polyamide flame-retardant housing for enhanced safety. Screw connection with tension sleeve ensures secure wire holding. Compact dimensions optimize PCB space with 12.6 x 20.82 x 26 mm size. Nominal current of 12 A and voltage rating of 1 kV suitable for demanding electrical loads.
Supports wire sizes 24 AWG to 12 AWG for versatile wiring options. Tin-plated contact surface for corrosion resistance and durability. Designed for industrial use in automotive, food processing, and other sectors. RoHS compliant for environmental and safety standards adherence.
Explore the Electronics & Electricals category at EnvMart for more industrial-grade Pluggable Terminal Blocks and connectors that meet rigorous standards and operational requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current rating of 12 A and a voltage rating of 1 kV, making it suitable for various electrical applications.
It accommodates wire sizes from 24 AWG (2 mm²) to 12 AWG (2.5 mm²) using a screw connection method with a tension sleeve for secure holding.
The dimensions of this terminal block are 12.6 mm in length, 20.82 mm in width, and 26 mm in depth, allowing for efficient PCB layout.
The housing of this terminal block is made from green polyamide, which is flame-retardant for enhanced safety.
This terminal block features 3 contacts, designed for reliable electrical connections in various applications.
It has a right angle orientation, which is suitable for PCB mounting.
Yes, this model is RoHS compliant, ensuring it is free from harmful substances and adheres to environmental safety standards.
It uses a screw connection method with a tension sleeve to secure the wires firmly in place.
This terminal block is suitable for demanding industrial applications such as automotive manufacturing and food processing.
The pitch of this terminal block is 7.62 mm, which is standard for many PCB applications.
The country of origin for this terminal block is India.
The contact surfaces are tin-plated, which enhances corrosion resistance and durability.
