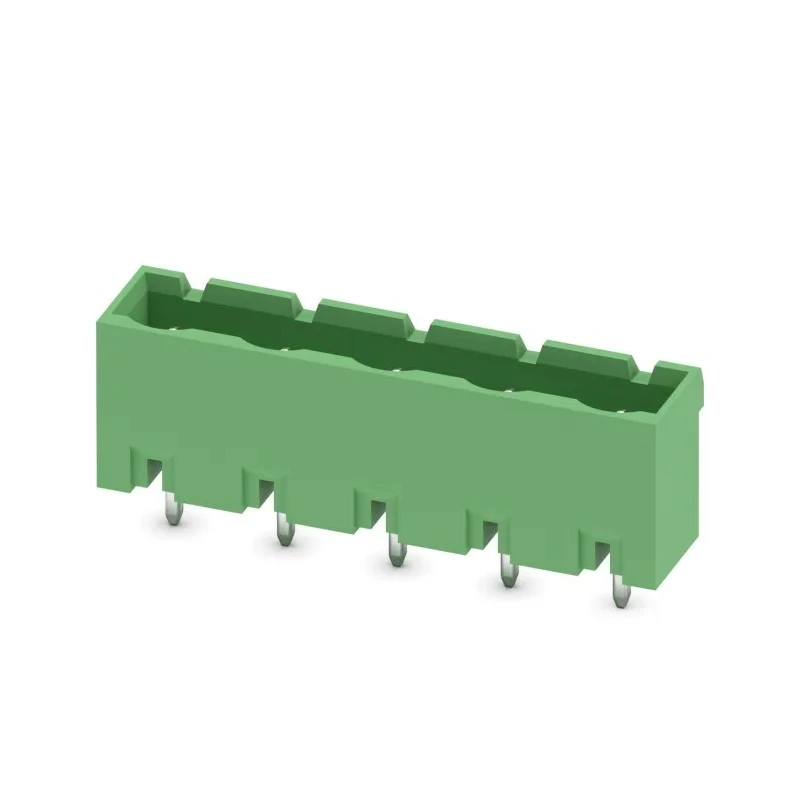

Phoenix Contact GMSTBVA 2.5/ 5-G-7.62 Series Pluggable Terminal Block, 5-Contact, 7.62 mm Pitch, 1 Row, 630V, 12A 1766806
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 8.6mm |
| Model | 1766806 |
| Depth | 15.9mm |
| Width | 38.1mm |
| Housing Material | Polyamide |
| Series | GMSTBVA 2.5/ 5-G-7.62 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Standards/Approvals | EU REACH SVHC, CSA, cULus, CHINA RoHS, EU RoHS |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Wire Connection Method | Solder |
| PCB headers, nominal current | 12 A, rated voltage (III/2): 630 V, number of positions: 5, pitch: 7.62 mm, colour: green, contact surface: Tin, mounting: Wave soldering |
Key Features
- The terminal block has a green polyamide housing ensuring electrical insulation.
- The connector is female and designed for straight orientation.
- Contact surfaces are tin-plated for reliable conductivity and corrosion resistance.
- The product complies with EU REACH SVHC, CSA, cULus, CHINA RoHS, and EU RoHS standards.
- Manufactured in Germany for high quality and durability.
Product Description
The Phoenix Contact 1766806 GMSTBVA 2.5/ 5-G-7.62 Series Pluggable Terminal Block is an advanced electrical connector designed for reliable PCB applications. This five-contact terminal block features a precise 7.62 mm pitch and consists of a single row design, making it suitable for compact and organized circuit board assembly. Its nominal current rating is 12 A, with a rated voltage of 630 V (III/2), supporting demanding electronic and industrial environments.
The housing material is durable polyamide in a distinct green color, offering robust electrical insulation and mechanical protection. The connector is female and configured for straight orientation, enhancing ease of wiring and assembly in complex circuits. Wire connections are made by soldering, favoring permanent and stable electrical contacts.
Physical dimensions are carefully optimized for PCB integration, including a width of 38.1 mm, depth of 15.9 mm, and length of 8.6 mm. The contact surface is coated with tin to provide excellent corrosion resistance and ensure consistent conductivity over long periods.
This terminal block meets multiple international standards such as EU REACH SVHC, CSA, cULus, China RoHS, and EU RoHS, guaranteeing compliance for worldwide industrial applications. The product is manufactured in Germany, reflecting high engineering standards and quality manufacturing processes.
Typical applications for the GMSTBVA 2.5/ 5-G-7.62 terminal block include industrial automation systems, power connectors, control panels, and other situations requiring secure and modular wire terminations. Its pluggable design facilitates easy maintenance and replacements without disturbing the entire assembly.
The terminal block has a green polyamide housing ensuring electrical insulation. The connector is female and designed for straight orientation. Dimensions include a width of 38.1 mm, depth of 15.9 mm, and length of 8.6 mm.
Contact surfaces are tin-plated for reliable conductivity and corrosion resistance. The product complies with EU REACH SVHC, CSA, cULus, CHINA RoHS, and EU RoHS standards. Manufactured in Germany for high quality and durability.
Explore the extensive range of Phoenix Contact products and related electrical connectors at EnvMart for dependable industrial and electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this terminal block is 12 A.
This model has a rated voltage of 630 V (III/2).
The terminal block has a width of 38.1 mm, a depth of 15.9 mm, and a length of 8.6 mm.
The pitch of the contacts is 7.62 mm.
It features 5 contacts.
The wire connection method for this terminal block is soldering.
The housing is made from polyamide, which provides electrical insulation.
The terminal block is green in color.
It complies with EU REACH SVHC, CSA, cULus, China RoHS, and EU RoHS standards.
The connector is designed for straight orientation.
This terminal block is manufactured in Germany.
Typical applications include industrial automation systems, power connectors, and control panels.
