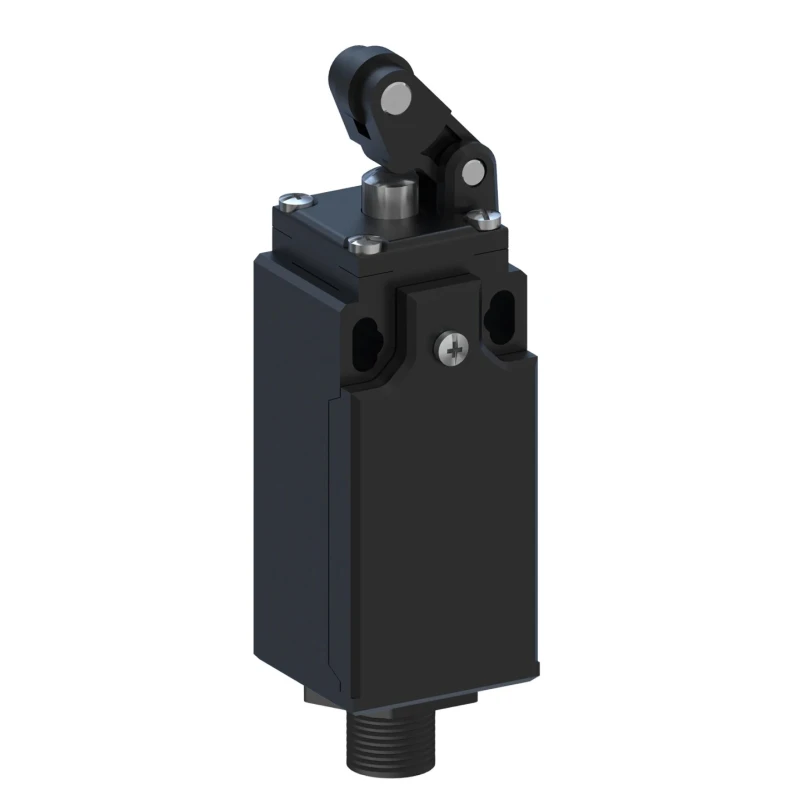

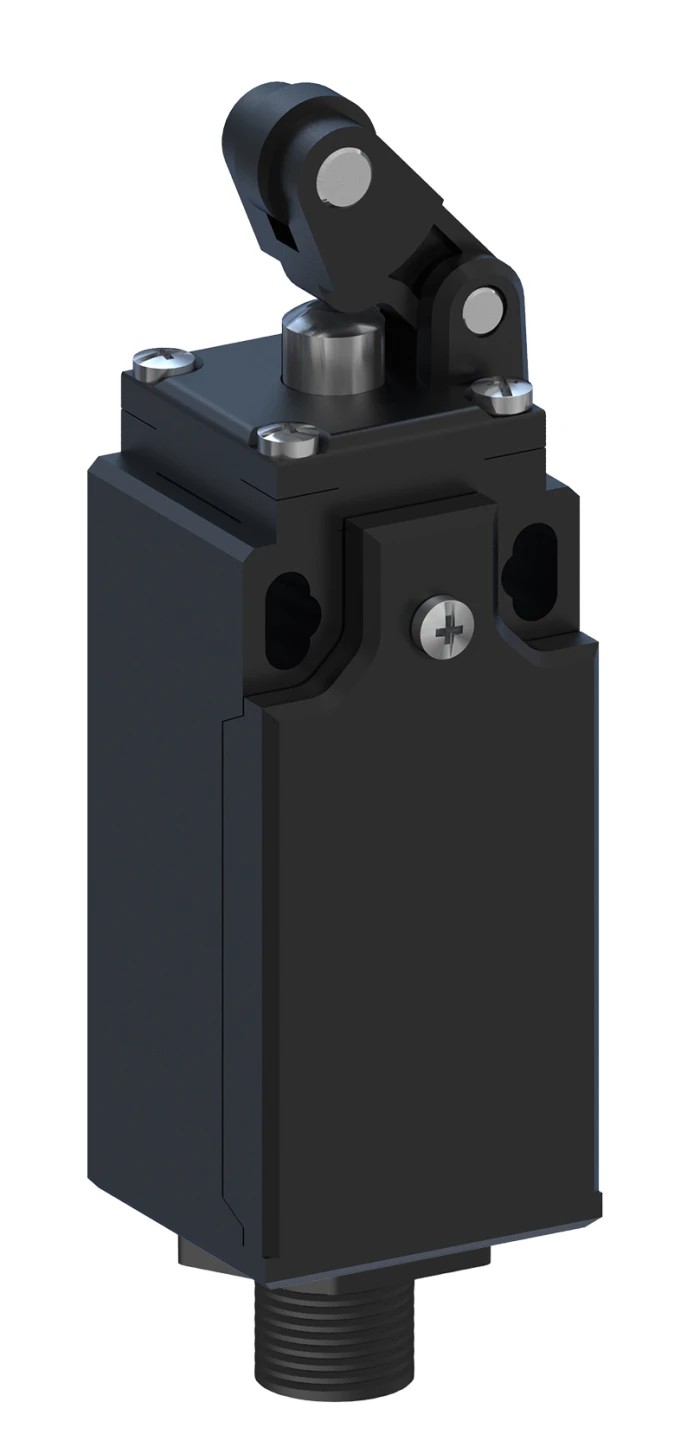

RS PRO Roller Lever Limit Switch DPST IP65 Plastic Housing 400V AC 10A IP65

RS PRO IP65 Roller Lever Limit Switch DPST 400V AC 10A is a high-quality limit switch designed for industrial automation and electrical control applications. This switch features a robust plastic housing that complies with the IP65 ingress protection rating, ensuring dust-tight and water jet resistance for reliable operation in challenging environments.

The roller lever actuator provides smooth and precise mechanical actuation, suitable for detecting presence, absence, position limits, travel limits, and counting objects in industrial processes. The double pole single throw (DPST) contact configuration allows switching of currents up to 10A at 400 volts AC and 250 volts DC, controlled by snap-action contacts that offer consistent operating points and eliminate contact bounce.

Constructed from reinforced UL-VO thermoplastic fiber-glass, this limit switch offers double insulation for enhanced electrical safety. The M12 conduit entry and terminal type facilitate secure cable connections and ease of installation. Rated for mechanical durability, it supports up to 15 million operational cycles, supporting long-term industrial use.

The device operates in a temperature range from -25°C to +70°C, making it suitable for varied industrial, manufacturing, automation, and HVAC environments. It is compliant with RoHS and meets IEC 947-5-1 as well as EN 60947-5-1 standards, guaranteeing adherence to international safety and performance requirements. The compact size of 30.3mm length, 30mm width, and 92mm depth ensures convenient mounting orientation, typically vertical.

The roller lever actuator provides precise and repeatable switching operation. DPST contact configuration supports switching currents up to 10 amps. Robust plastic housing offers IP65 rated protection against dust and water ingress.

Suitable for operating temperatures from -25°C to +70°C. Electrically isolated snap-action contacts ensure reliable switching performance. M12 conduit entry and terminal type support fast and secure wiring. Conforms with RoHS standards and IEC 947-5-1, EN 60947-5-1 approvals.

Mechanical life rating of 15 million cycles guarantees long-term durability. Compact dimensions of approximately 30.3mm length, 30mm width, and 92mm depth. Manufactured in Italy with reinforced thermoplastic fiber-glass material for double insulation.

This RS PRO limit switch is suited for various industrial automation, manufacturing, and electrical control applications where reliable position detection and switching are required. Its IP65 rating makes it well-suited for environments exposed to dust and moisture intrusion.
