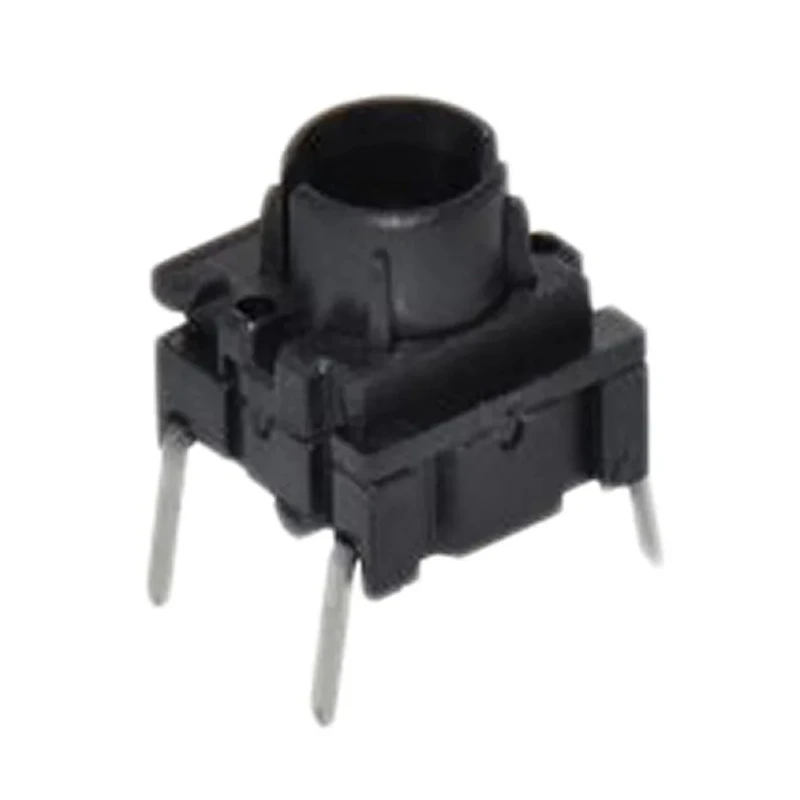

MEC Blue IP67 Rated 6.5 mm Side Cap Tactile Switch SPST 50mA 24 V dc PCB Mount
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 10mm |
| Length | 12.5mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 10.4mm |
| Mount Type | PCB |
| Series | RA3 |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Actuator Length | 6.5mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Side Cap |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 3.5N |
| Mechanical Life | 10000000Operations |
| MEC IP67 Tactile Switch Side Cap, 6.5 mm, SPST 50mA 24 V dc, PCBBrand | MEC |
Key Features
- The switch features a Single Pole Single Throw (SPST) contact configuration.
- It operates at 50mA current and 24 V dc voltage.
- The actuator is blue, straight-oriented, and has a 6.5 mm length side cap style.
- The switch is momentary with mechanical life rated at 10 million operations.
- It is sealed to IP67 for dust and waterproof protection.
- Operating temperature range spans from -40°C to 160°C.
- The switch is illuminated and mounts on PCB boards.
- It complies with RoHS standards ensuring regulatory adherence.
Product Description
The MEC RA3FTH900 is a high-quality tactile switch featuring a blue 6.5 mm side cap actuator. Designed for Printed Circuit Board (PCB) mounting, this switch offers reliable momentary action with a Single Pole Single Throw (SPST) configuration suitable for a variety of electrical and automation applications.
It is rated for a contact current of 50mA at 24 V dc, ensuring safe low-current switching operations. The switch actuator is straight-oriented with a tactile side cap style, providing intuitive user feedback and mechanical endurance up to 10 million actuations.
Sealed to IP67 standards, the switch is dust tight and protected against temporary immersion in water, making it ideal for harsh industrial environments requiring protection against contaminants. The operating temperature range from -40°C to 160°C further enhances its suitability for demanding conditions.
This tactile switch is illuminated and has compact dimensions of 12.5 mm length, 10.4 mm width, and 10 mm height. The required operating force is 3.5N, balancing ease of actuation with tactile feedback.
Manufactured in Denmark and RoHS compliant, the RA3FTH900 ensures environmental friendliness while offering robust performance. Typical industrial uses include applications in control panels, automation equipment, and electronic devices that require sealed, reliable switching components.
The switch features a Single Pole Single Throw (SPST) contact configuration. It operates at 50mA current and 24 V dc voltage. The actuator is blue, straight-oriented, and has a 6.5 mm length side cap style. The switch is momentary with mechanical life rated at 10 million operations.
It is sealed to IP67 for dust and waterproof protection. Operating temperature range spans from -40°C to 160°C. The switch is illuminated and mounts on PCB boards. It complies with RoHS standards ensuring regulatory adherence.
The dimensions are 12.5 mm length, 10.4 mm width, and 10 mm height. The required operating force is 3.5 Newtons. Explore more Tactile Switches and related electrical components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This tactile switch features a Single Pole Single Throw (SPST) contact configuration.
It operates at a current of 50mA and a voltage of 24V dc.
The switch has dimensions of 12.5 mm in length, 10.4 mm in width, and 10 mm in height.
The maximum operating temperature is 160°C.
It has a mechanical life rated at 10 million operations.
The switch is sealed to IP67, making it dust tight and protected against temporary immersion in water.
This model is designed for PCB (Printed Circuit Board) mounting.
The required operating force for this switch is 3.5 Newtons.
The actuator has a side cap style and is blue in color.
Yes, it complies with RoHS standards, ensuring regulatory adherence.
The minimum operating temperature is -40°C.
This tactile switch is suitable for control panels, automation equipment, and electronic devices requiring sealed, reliable switching components.
