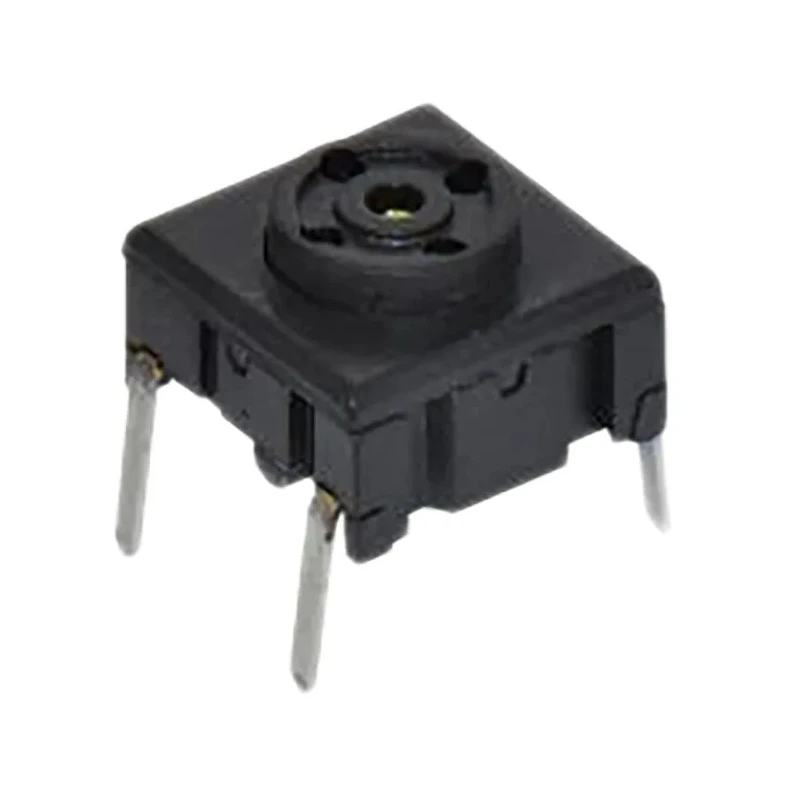

MEC Black Flat Momentary Tactile Switch SPST 50mA 24 V DC PCB Mount IP67 IP67
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 12mm |
| Length | 12.5mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 6.4mm |
| Mount Type | PCB |
| Series | 3F |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 6.5mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Flat |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 3.5N |
| Mechanical Life | 10000000Operations |
| MEC IP67 Black Tactile Switch Flat, SPST 50mA 24 V dc, PCBBrand | MEC |
Key Features
- Features a black flat actuator with a length of 6.5 mm for easy operation.
- Switch configuration is single pole single throw (SPST) with momentary on-off operation.
- Electrical rating of 50mA at 24 V DC suitable for low voltage control circuits.
- Durable design compatible with operating temperatures ranging from -40°C to 160°C.
- Robust mechanical life rated for 10,000,000 operations ensuring long service.
- Sealed to IP67, providing protection against dust and immersion in water.
- Compact dimensions of approximately 12.5 mm length, 6.4 mm width, and 12 mm height.
- Mounting via PCB terminals ensures reliable electrical connections.
Product Description
The MEC RA3ETH9-12-0 is a high-quality tactile switch designed for industrial and electronic applications requiring reliable momentary switching. It features a black flat actuator with a 6.5 mm length, providing comfortable and precise push-button operation. The switch uses a single pole single throw (SPST) contact configuration in a momentary (on)-off arrangement, ideal for push action control.
This tactile switch is rated for a contact current of 50mA at 24 V DC and supports operation in extreme temperatures from -40°C to 160°C, making it suited for harsh environments. Its housing is sealed to IP67 standards, ensuring dust-tight integrity and protection against temporary immersion in water, thereby enhancing durability for rugged industrial and automation use.
The compact dimensions of 12.5 mm in length, 6.4 mm width, and 12 mm height allow for use in space-constrained PCB assemblies. The switch mounts directly to PCB terminals for secure, stable electrical connections. The operating force is set at 3.5N, offering a tactile feedback for user assurance during actuation. The mechanical lifespan of the switch is rated at 10 million operations, ensuring long-term reliability in repetitive switching applications.
Manufactured in Denmark, the MEC RA3ETH9-12-0 is Rohs compliant and designed according to series 3F specifications. Typical uses include electronics, automation systems, control panels, instrumentation, and industrial equipment requiring robust and reliable tactile switching components.
Black flat actuator for precise momentary switching. SPST contact configuration with 50mA 24 V DC rating. IP67 sealed for dust and water resistance. Operating temperature range of -40°C to 160°C. Mechanical life of 10 million operations for longevity.
Compact size suitable for PCB mounting applications. Operating force of 3.5N offering tactile feedback. Explore more Tactile Switches from MEC and other quality brands at EnvMart for reliable industrial and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a contact current rating of 50mA at 24 V DC, suitable for low voltage control circuits.
This tactile switch operates effectively within a temperature range of -40°C to 160°C.
The switch is rated for a mechanical life of 10 million operations, ensuring long-term reliability.
It mounts directly to PCB terminals, providing secure and stable electrical connections.
The switch is sealed to IP67 standards, offering protection against dust and immersion in water.
It has compact dimensions of approximately 12.5 mm in length, 6.4 mm in width, and 12 mm in height.
The actuator length is 6.5 mm, designed for comfortable and precise push-button operation.
It features a single pole single throw (SPST) contact configuration with momentary operation.
The operating force is set at 3.5N, providing tactile feedback during actuation.
This model is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is manufactured in Denmark, ensuring adherence to quality standards.
Typical uses include electronics, automation systems, control panels, instrumentation, and industrial equipment.
