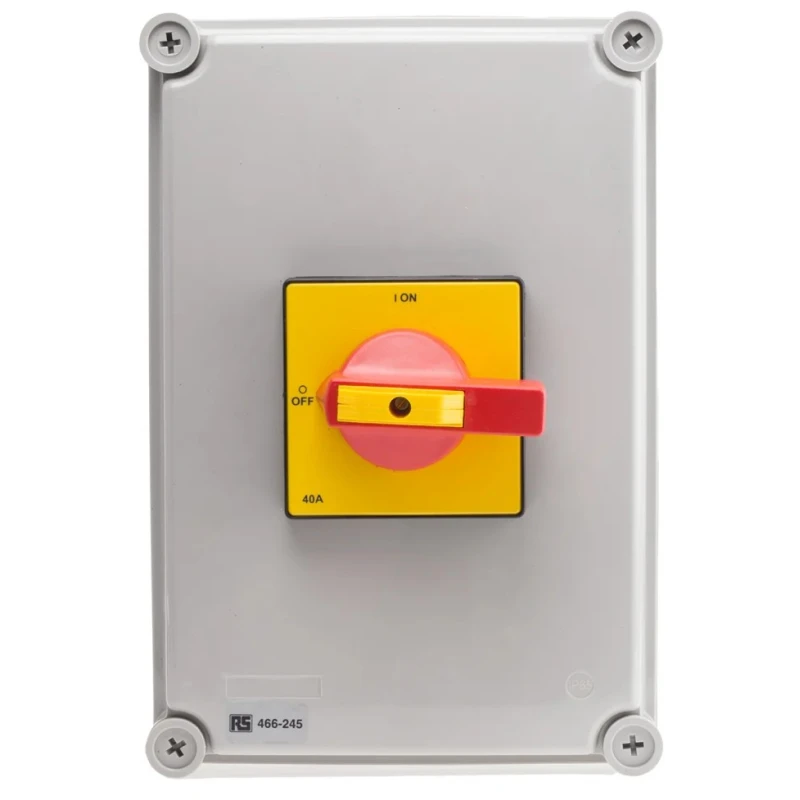

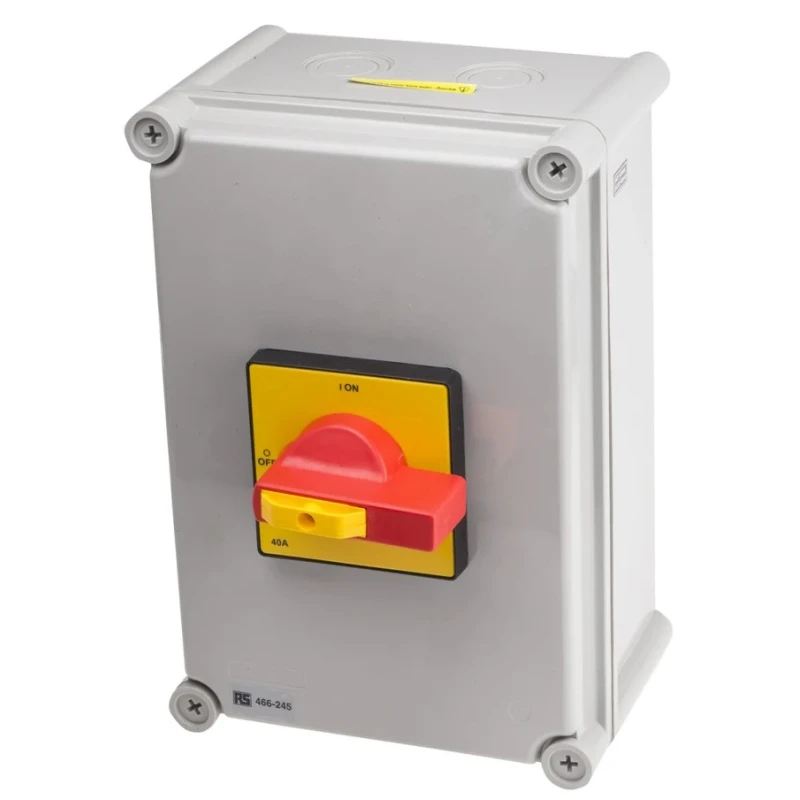

RS PRO 8-Pole DIN Rail Isolator Switch IP65, 40A, 15 kW IP65

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 8-Pole DIN Rail Isolator Switch IP65, 40A, 15 kW IP65

Name: RS PRO 8-Pole DIN Rail Isolator Switch IP65, 40A, 15 kW IP65
Brand: RS PRO
SKU: 138896
Price: 12986.5 INR
Availability: InStock



Category Isolator Switch Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Length	280mm
Model	IP65
Depth	130mm
IP Rating	IP65
Width	190mm
Mount Type	DIN Rail
Series	RS PRO
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-25°C
Switching Current	40A
Terminal type	Wire
Handle Colour	Red
Number of Poles	8
Standards/Approvals	RoHS, EN60947
Switching AC Voltage	690V ac
Switching Power	15kW
Squirrel - cage motors	starting, switching off motors during running

Key Features

The isolator switch features an IP65 rating ensuring protection against dust and water ingress.
Designed for DIN rail mounting with 8 poles suitable for low voltage switchgear applications.
Equipped with a red handle and padlock compatibility for enhanced safety.
Operates between -25°C to 80°C, suitable for industrial environments.
Wiping contacts and finger protection improve reliability and safety during operation.
Meets RoHS and EN60947 standards for quality and compliance.
Ideal for switching resistive, inductive, and motor loads in automation and control systems.

Product Description

RS PRO IP65 8-Pole DIN Rail Isolator Switch is a high-quality boxed isolator designed for efficient power distribution and load isolation in industrial and commercial settings. With a 40A switching current and 15 kW switching power, this isolator switch ensures reliable operation under demanding load conditions.

The device offers an IP65 ingress protection rating, confirming complete dust-tight protection and protection against water jets, making it suitable for harsh environments. It features an 8-pole configuration for multiple circuits and is designed for secure DIN rail mounting.

The isolator switch includes a red handle with padlock compatibility for enhanced safety, allowing secure lockout during maintenance. It operates reliably in temperatures ranging from -25°C to 80°C and employs wiping contacts for consistent electrical connection and finger protection to prevent accidental contact.

Manufactured in the United Kingdom, the switch complies with RoHS and EN60947 standards, ensuring environmental safety and industrial quality. Its compact dimensions of 280mm length, 190mm width, and 130mm depth facilitate easy integration into existing switchgear assemblies.

Applications include controlling AC electromagnetic loads, switching squirrel-cage motors during start and stop, and managing non-inductive or slightly inductive loads such as resistance furnaces. It is suitable for industrial automation, electrical power distribution, and control panels within manufacturing, water treatment, and commercial sectors.

The isolator switch features an IP65 rating providing superior dust and water resistance. Red handle design allows for easy operation and padlock compatibility for safety. Compact DIN rail mount sizing with 8 poles for multi-circuit isolation.

High switching current of 40A and power rating of 15 kW meets demanding load requirements. Compliance with RoHS and EN60947 standards ensures quality and environmental safety. Wide operating temperature range from -25°C to 80°C suits industrial environments.

Designed for applications including motor control, resistive load switching, and electromagnetic load management. Explore EnvMart for a comprehensive selection of Isolator Switches and electrical components, ensuring quality and reliability for your industrial and automation needs.
