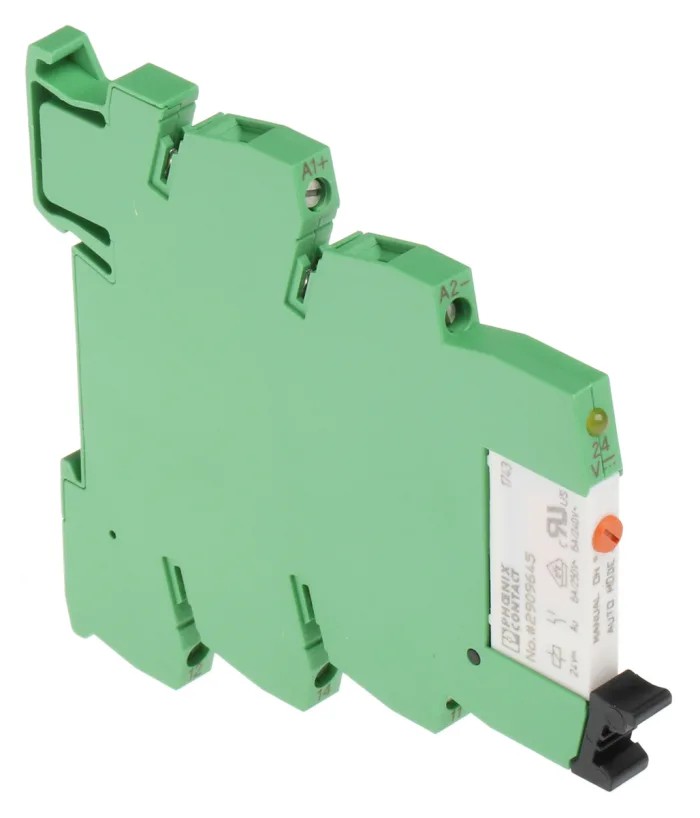

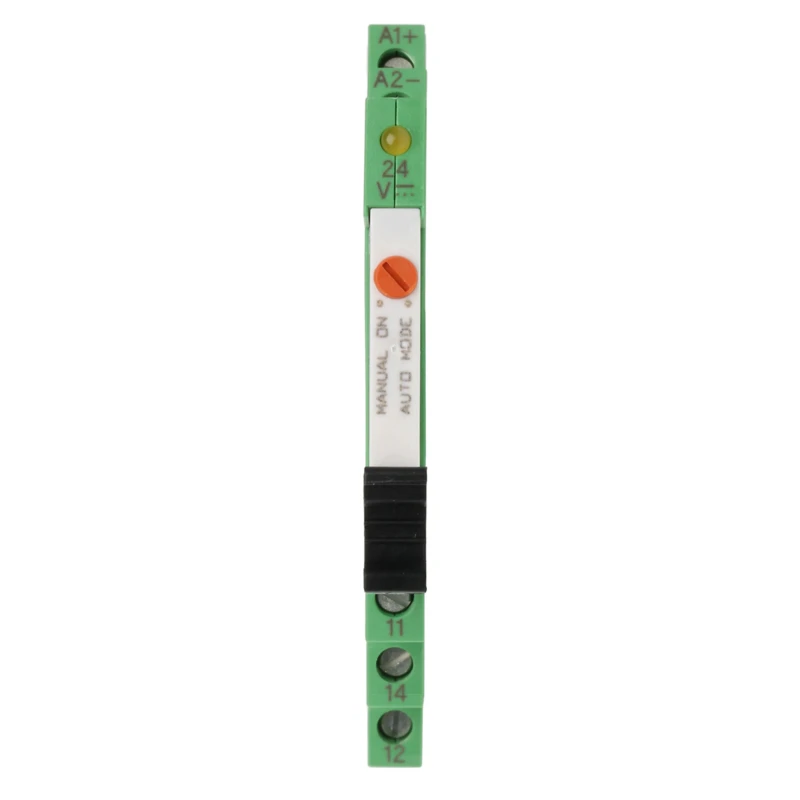

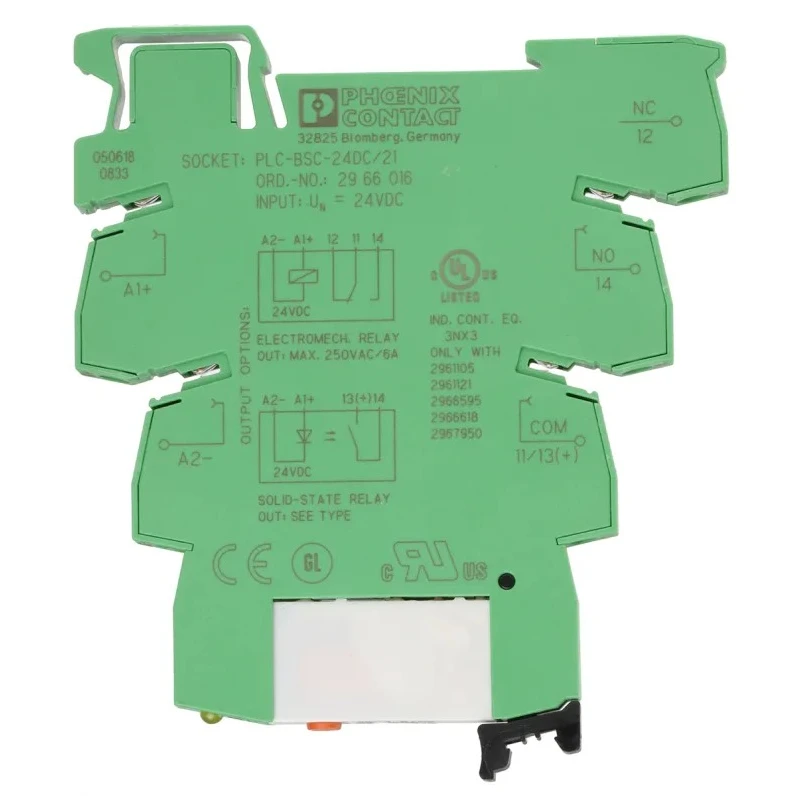

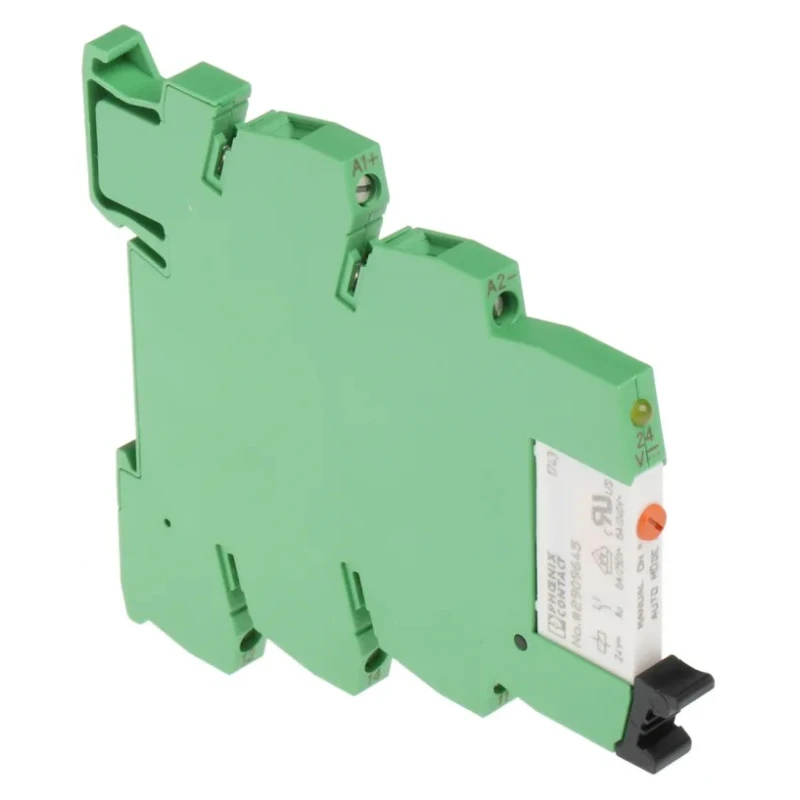

Phoenix Contact Electromechanical Interface Relay PLC-RSC- 24DC/21AU/MS, DIN Rail Mount, 24V DC Coil, SPDT Contact 2909655

Phoenix Contact 2909655 electromechanical interface relay PLC-RSC- 24DC/21AU/MS is a robust and compact relay module designed for DIN rail mounting, suitable for industrial automation and control systems. It features a 24V DC coil and SPDT (single pole double throw) contact configuration with gold-plated contacts for enhanced conductivity and durability.

The relay supports switching currents up to 6A and switching voltages up to 250V AC and DC, making it versatile for a wide range of applications including electrical isolation, power amplification, and adjustment of voltage levels in frequency-varying circuits.

Its screw terminal connection ensures secure and reliable wiring, while the relay's operating temperature range from -40°C to 60°C guarantees performance stability under harsh conditions. The module measures 94mm in length, 80mm in height, and 6.2mm in width, optimizing space on DIN rails NS 35/7.5.

Designed and manufactured in Germany, the relay complies with international standards such as UKCA, IEC 60947-5-1, CE, EU RoHS, and cULus, assuring safety and environmental compliance.

The PLC-RSC series offers a compact, cost-effective solution to interface automation equipment with external peripherals through reliable electromechanical switching. The product incorporates a yellow LED to display operating voltage and integrates a free-wheeling diode for coil protection.

Compact DIN rail mount design suitable for NS 35/7.5 rails. 24V DC coil voltage with low coil current consumption of 15.3mA. Single pole double throw (SPDT) gold-plated contacts rated for 6A switching current. Switching voltage supports up to 250V AC and DC for versatile applications.

Operating temperature range from -40°C to 60°C ensuring reliable performance. Screw terminal type for secure electrical connections. Dimensions of 94mm length, 80mm height, and 6.2mm width for efficient space usage. Complies with UKCA, IEC 60947-5-1, CE, EU RoHS, EU REACH SVHC, DNV GL, cULus Listed, CHINA RoHS.

Manufactured in Germany ensuring premium quality. Features LED operating voltage display and damping diode for protection.

This electromechanical Interface Relay is suitable for use in industrial automation, electrical and HVAC control systems, manufacturing equipment, power distribution, and water treatment processes. It provides reliable switching and interface functionality between automation controllers and field devices.
