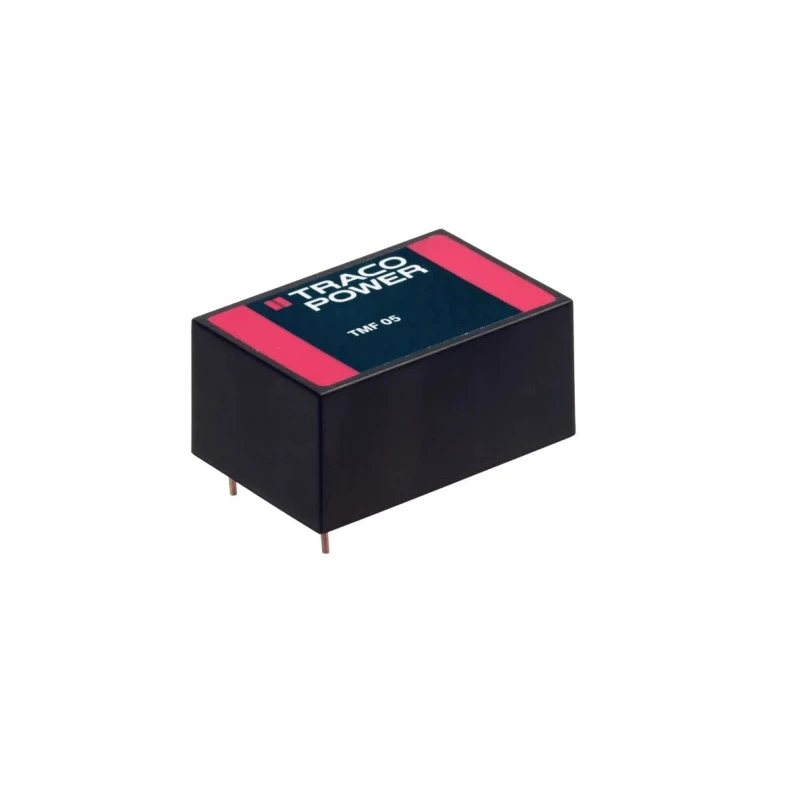

TRACOPOWER TMF 05115 Switching Power Supply 15V 5W PCB Mount Medical Grade TMF 05115
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 5W |
| Efficiency | 82% |
| Length | 41.2mm |
| Model | TMF 05115 |
| Depth | 19.1mm |
| Gross Weight | 30g |
| Width | 27.2mm |
| Mount Type | PCB |
| Series | TMF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 15V |
| SMPS Output Current | 333mA |
| Minimum Input Voltage | 90V ac |
| RoHS, ISO 14971, IEC/EN/ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1 | 14, ANSI/AAMI ES 60601-1 |
Key Features
- Compact size with dimensions 41.2mm length, 27.2mm width, and 19.1mm depth.
- Wide operating temperature range from -25°C to 70°C for versatile environments.
- High efficiency rated at 82% to optimize energy usage.
- Includes short circuit, overload, and over-voltage protection for safety.
- Fully encapsulated design with low leakage current suitable for medical equipment.
- Meets multiple standards including RoHS, IEC/EN/ES 60601-1, and ISO 14971.
- Supports input voltage from 90V ac minimum up to 264V maximum.
- Output current rated at 333mA with single output configuration.
Product Description
TRACOPOWER TMF 05115 Switching Power Supply, model TMF 05115, is a high-quality medical-grade power supply designed for PCB mounting. It provides a maximum output voltage of 15V and power rating of 5W, making it ideal for sensitive medical and industrial applications requiring reliability and safety.
This compact power supply features a fully encapsulated plastic casing that minimizes leakage current and ensures robust performance. It is engineered to operate efficiently from -25°C up to 70°C, supporting a wide range of ambient conditions for stationary and transportable medical devices.
Designed with multiple protection mechanisms including short circuit, overload, and over voltage protection, it offers enhanced system safety and longevity. The TMF series complies with stringent international standards like IEC 60601-1 (3rd edition), EN 60601-1, ISO 14971 for risk management, and others, certifying its suitability for medical equipment.
With input voltage flexibility ranging from 90V ac to 264V ac and an output current of 333mA on its single output channel, it supports diverse power scenarios. The unit's dimensions - 41.2mm length, 27.2mm width, and 19.1mm depth - and weight of 30g reflect its compact and lightweight design.
Compact 41.2 x 27.2 x 19.1mm size. Wide operating temperature span (-25°C to 70°C). 82% power efficiency for reduced energy loss. Fully encapsulated PCB mount module with low leakage. Short circuit, overload, and over voltage protective features.
Compliant with medical EMC and safety standards. Input voltage range of 90V to 264V AC. Output current: 333mA, single output channel. Lightweight 30g module.
These power supplies are ideal for medical, industrial, laboratory, HVAC, and other commercial applications requiring stable and safe electrical power. The TMF 05115 series supports compliance and reliability in demanding use cases.
Explore the variety of TRACOPOWER switching power supplies and related products on EnvMart for trusted quality and performance.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 15V.
It supports an input voltage range from 90V AC to 264V AC.
The output current is rated at 333mA with a single output configuration.
The dimensions are 41.2mm in length, 27.2mm in width, and 19.1mm in depth.
It has an efficiency rating of 82%.
The operating temperature range is from -25°C to 70°C.
It includes short circuit, overload, and over-voltage protection for enhanced safety.
The weight of this unit is 30g.
It is designed for PCB mounting.
It is suitable for medical, industrial, laboratory, and HVAC applications requiring stable power.
The country of origin for this power supply is Taiwan.
