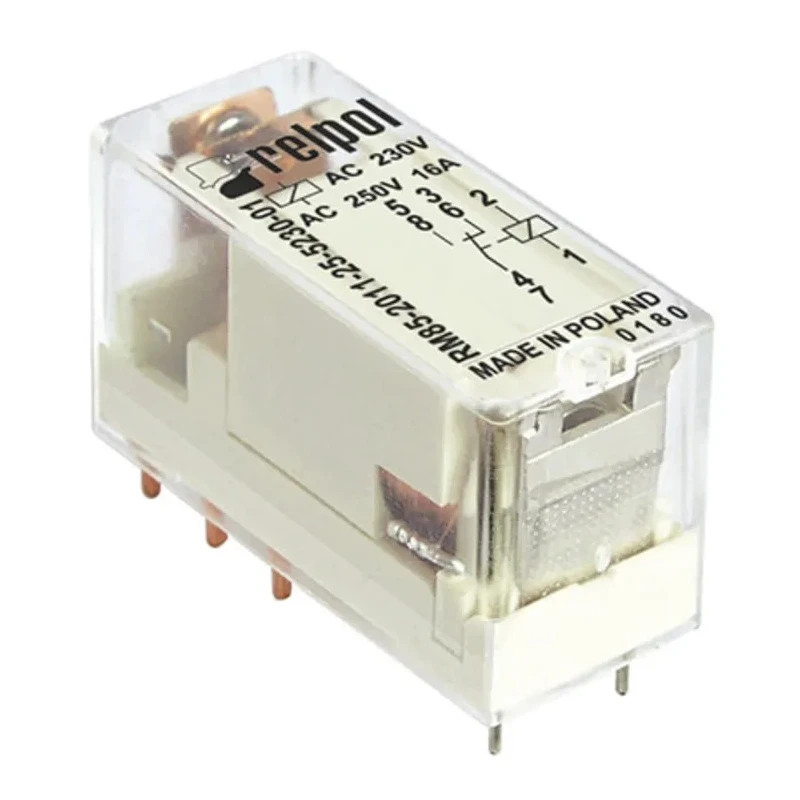

Relpol PCB Power Relay 230V AC Coil 16A Switching Current SPDT RM85-2011-35-5230

Relpol RM85-2011-35-5230 PCB Power Relay is a compact and reliable miniature relay designed specifically for PCB mounting applications. It operates on a 230V AC coil voltage and supports a switching current of 16A, making it suitable for general-purpose industrial uses where space-saving and efficient switching are required.

The relay uses SPDT (Single Pole Double Throw) contact configuration allowing versatile control of electrical circuits. It handles switching AC voltages up to 440V and DC voltages up to 24V DC, enabling a wide range of applications in automation, control systems, and electrical devices.

Its coil specifications include a resistance of 38.5kΩ and power consumption of 750mW, designed for energy-efficient operation. The relay is rated to function reliably in extreme temperature conditions ranging from -40°C to 70°C, suitable for harsh industrial environments.

Constructed with silver alloy contacts, this relay ensures minimal contact resistance (100mΩ), which enhances electrical performance and durability. The physical size is miniature with dimensions of 29mm length, 12.7mm width, and 15.7mm height, facilitating easy integration into circuit boards with a plug-in terminal type for straightforward installation.

It is compliant with RoHS and EAC standards, reflecting its adherence to environmental regulations and international safety norms. The relay is manufactured in Poland, ensuring premium build quality and reliability for electrical and automation system requirements.

The relay’s SPDT contact configuration offers flexible circuit control. Capable of switching high AC voltages up to 440V and DC voltages of 24V DC. Efficient coil with 38.5kΩ resistance and 750mW power consumption. Wide operating temperature range from -40°C to 70°C suits industrial usage.

Durable silver alloy contacts maintain low contact resistance of 100mΩ. Compact size (29mm x 12.7mm x 15.7mm) with plug-in PCB mount terminals. RoHS and EAC certified for safety and environmental compliance.

This relay is ideal for applications in industrial automation, electrical control panels, HVAC systems, manufacturing machinery, and any environment requiring reliable and compact power switching solutions. For engineers and designers, the relay is compatible with standard PCB sockets and provides dependable switching performance under demanding conditions.
