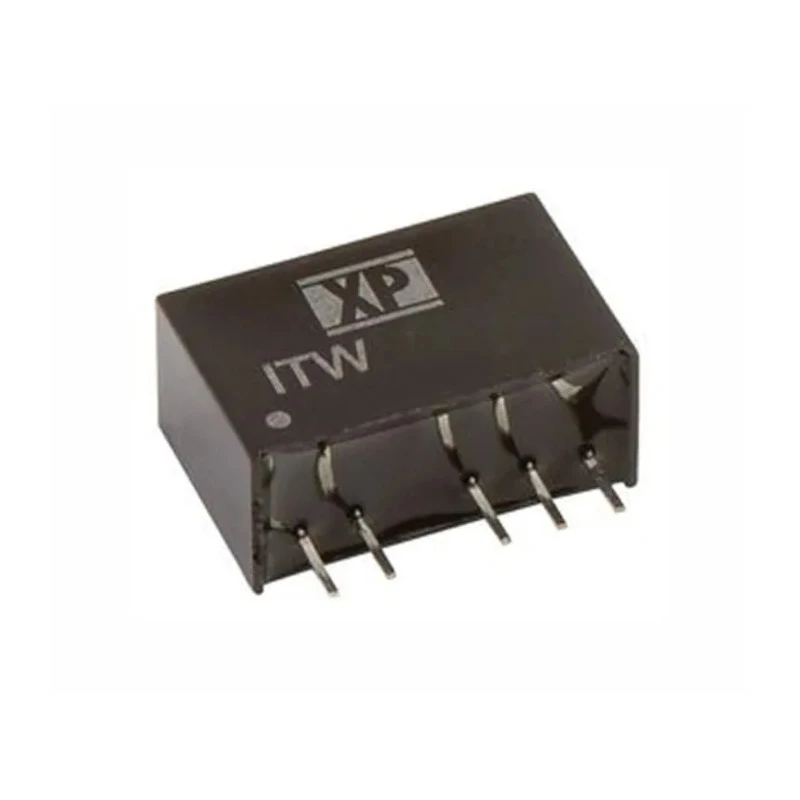

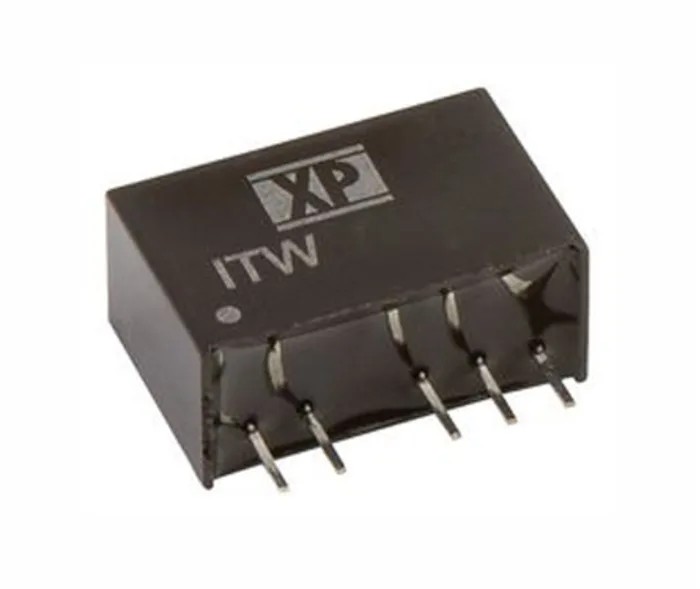

XP Power ITW Series Isolated DC/DC Converter, 15 V, -15 V Output, 33 mA Output Current, 18 V / 9 V Input, 1 W ITW1215S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power ITW DC/DC Converter, 15V, -15 V/ 33 mA, 1 |
| Brand | XP Power |
| Efficiency | 79% |
| Length | 17mm |
| Model | ITW1215S |
| Depth | 11mm |
| Width | 7.62mm |
| Mount Type | Through Hole |
| Series | ITW |
| Maximum Operating Temperature | 105°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 33mA |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 1.5kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- The converter operates over a wide input voltage range of 9 V to 18 V.
- It has a maximum output power of 1 watt with an efficiency rating of 79%.
- Includes a through-hole SIP package type with 6 pins and industry-standard pinout.
- Designed for harsh environments with operating temperatures ranging from -40°C to 105°C.
- Provides 1.5 kV of isolation voltage ensuring robust electrical separation.
- Compact dimensions of 17 mm length, 7.62 mm width, and 11 mm depth enable easy PCB integration.
- No minimum load requirement with fully regulated outputs for stable performance.
- Suitable for use in industrial power supplies, laboratory instruments, telecommunications, and embedded systems.
Product Description
XP Power ITW1215S is part of the ITW series isolated DC/DC converters, delivering dependable dual output voltages of 15 V and -15 V at up to 33 mA output current, with a maximum output power of 1 watt. This model features a through-hole SIP package with six pins and an industry-standard pinout, facilitating easy PCB mounting.
The unit operates with an input voltage range of 9 V to 18 V, supporting 2:1 input ratio, and maintains a high efficiency of 79%, making it an energy-efficient choice for power conversion needs.
Designed to withstand a wide operating temperature range from -40°C to 105°C, the ITW1215S converter is ideal for demanding environments in industrial, laboratory, telecommunications, and embedded system applications. The converter offers 1.5 kV isolation voltage for enhanced electrical isolation, ensuring system reliability and operator safety.
The compact dimensions (17 mm length, 7.62 mm width, and 11 mm depth) allow for space-saving implementations in tight electronic assemblies. With no minimum load requirement and fully regulated outputs, it assures stable and consistent power supply performance.
The converter supports single and dual outputs with an output voltage adjustment range of 9 V to 18 V. The SIP package and through-hole mounting type ensure robust mechanical and electrical connection. Industry applications include power supplies, telecommunications equipment, instrumentation, and embedded electronics.
Explore EnvMart's extensive catalogue for more industrial-grade electronics and DC/DC Converters from top manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 15 V and -15 V.
The maximum output power of the ITW1215S is 1 watt.
It operates over a wide input voltage range of 9 V to 18 V.
This model has an efficiency rating of 79%.
The converter has compact dimensions of 17 mm in length, 7.62 mm in width, and 11 mm in depth.
The ITW1215S offers an isolation voltage of 1.5 kV.
It is designed to operate in temperatures ranging from -40°C to 105°C.
This model features two outputs.
It comes in a through-hole SIP package type with six pins.
There is no minimum load requirement for this converter, ensuring stable performance.
It is suitable for use in industrial power supplies, laboratory instruments, telecommunications, and embedded systems.
The converter supports a 2:1 input ratio.
