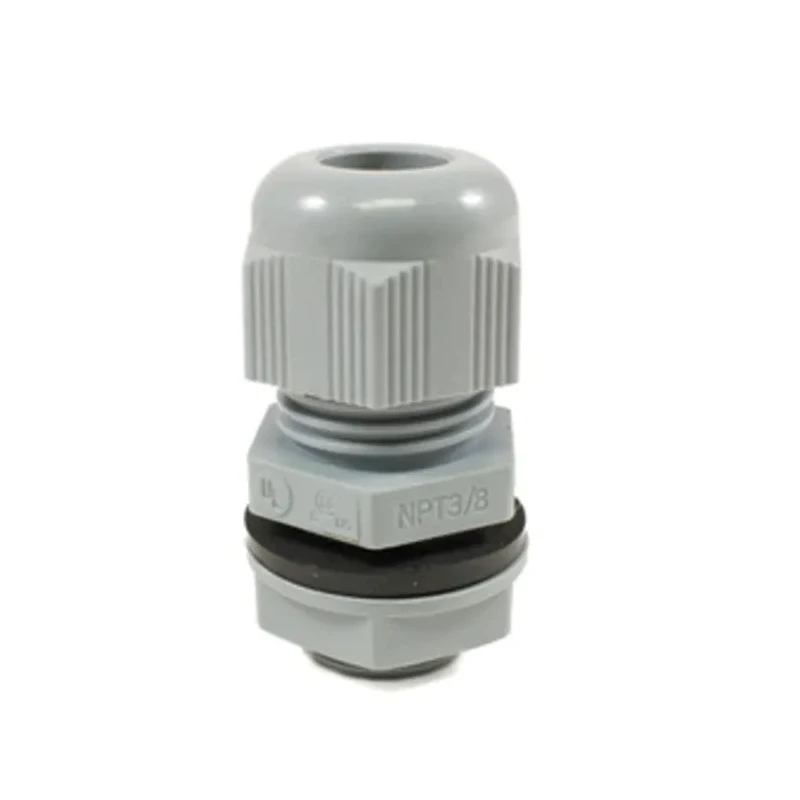

Alpha Wire FIT Wire Management Series Slate Chloroprene Rubber Polyamide Cable Gland PG11 Thread 5 mm Min 10 mm PPC11 SL080

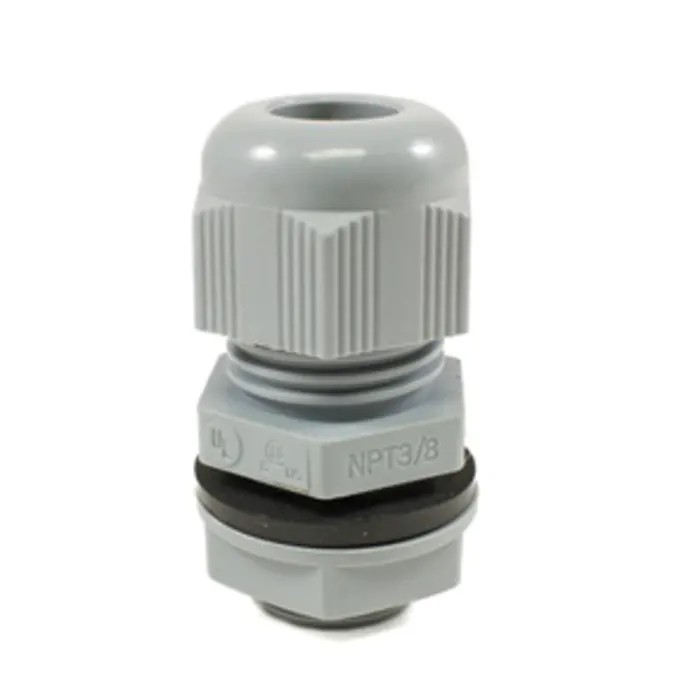

Alpha Wire PPC11 SL080 FIT Wire Management Series Cable Gland is engineered from high-quality chloroprene rubber and polyamide, featuring a PG11 standard threaded fitting suitable for cable diameters ranging from 5 mm to 10 mm. The slate-colored gland provides robust protection and strain relief for cables in demanding environments.

This cable gland offers IP66 and IP68 ingress protection, making it dust-tight and waterproof to 5 bar for 30 minutes, ensuring reliable performance in industrial, laboratory, electrical, and telecommunications applications. It operates over a wide temperature range of -20°C to 100°C permanently, with intermittent resistance up to 150°C.

The product is compliant with CSA, UL 514, and UL 94V-2 standards, certifying its mechanical durability and flame retardant properties with a flammability rating of V2. It comes complete with a locknut to secure the fitting firmly and prevent loosening under vibration or movement.

Typical use cases include cable installations requiring high levels of strain relief and environmental protection in electrical wiring systems, control instrumentation, and power cable setups. The gland's polyamide 6 body combined with a chloroprene rubber O-ring ensures long-lasting sealing and mechanical stability.

The thread length is 8 mm with a diameter of 18.6 mm, providing compatibility with industry-standard fittings. The cable gland is slate in color, enhancing its professional industrial aesthetics.

Constructed from durable chloroprene rubber and polyamide materials for enhanced resilience. Features slate color finish suitable for industrial and electrical applications. Certified with CSA, UL 514, and UL 94V-2 for safety and flammability standards.

Offers high ingress protection ratings IP66 and IP68 for dust and water resistance. Includes locknut for secure installation and reliable cable clamping. Designed to operate between -20°C minimum and 150°C maximum temperatures.

Thread length of 8 mm and thread diameter of 18.6 mm ensure proper fitting on compatible equipment. Flammability rating V2 ensures flame self-extinguishing properties.

This cable gland is ideal for use in industrial, electrical, telecommunications, manufacturing, and laboratory environments where reliable cable management and protection are essential. Browse more in the Cable Glands category at EnvMart for compatible accessories and related products.
