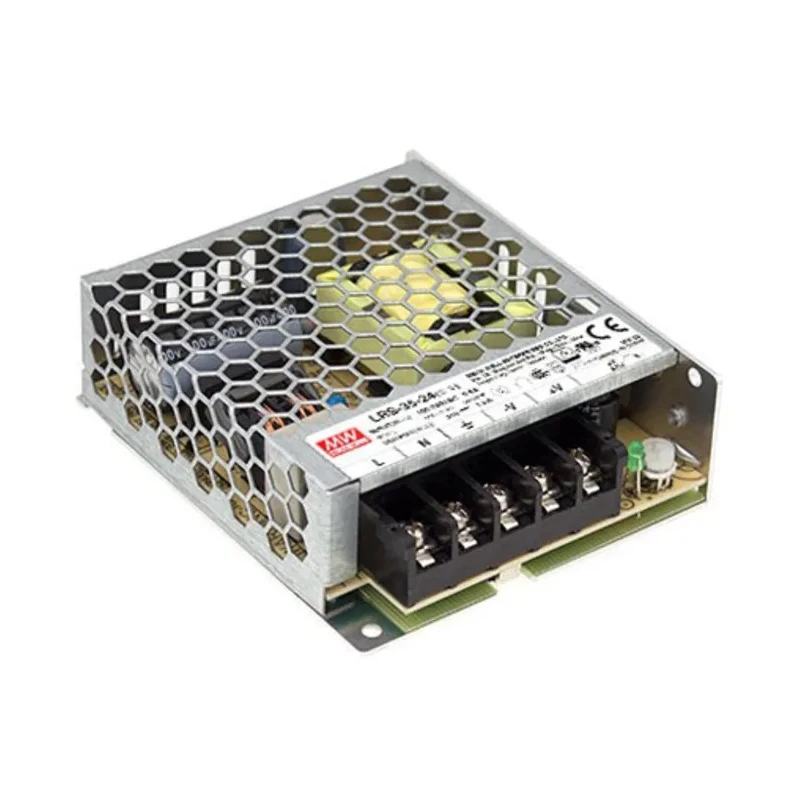

MEAN WELL Switching Power Supply 36V DC 36W Chassis Mount LRS-35-36

MEAN WELL LRS-35-36 Switching Power Supply is a 36W single output power supply unit designed for industrial and commercial use. It provides a stable 36V DC output voltage with a current capacity of 1A and features a chassis mount design ensuring easy and secure installation.

This power supply unit supports a universal AC input voltage range from 85V AC minimum up to 264V AC or 373V DC maximum, making it suitable for a wide variety of power environments. Its high efficiency of 88% helps reduce energy consumption and heat generation during operation.

The LRS-35-36 is engineered to operate reliably in harsh conditions with an operating temperature range from -30°C to +70°C. The inclusion of 5G vibration resistance and a metallic mesh with air convection cooling enhances durability and heat dissipation, which is essential for maintaining performance in demanding industrial applications.

Safety and compliance are ensured through certifications including AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, UL 62368-1, and CSA C22.2 No. 62368-1. This ensures the product meets global standards for electronic safety and environmental requirements.

This switching power supply is commonly used in industrial automation systems, control machinery, mechanical and electrical equipment as well as household appliances, offering reliable power conversion and efficiency.

Provides a single output with 36V DC maximum output voltage and 1A output current. Designed with a chassis mount type and compact dimensions of 99mm length, 82mm width, and 30mm depth. Operates efficiently with an 88% efficiency rating and minimal standby power consumption.

Supports a wide input voltage range of 85V AC minimum and maximum input voltages of 264V AC or 373V DC. Features a robust operating temperature range from -30°C to 70°C suitable for demanding industrial environments. Built with a metallic mesh and air convection cooling for optimum heat dissipation.

Meets multiple international safety and performance standards including UL, TUV, CCC, and CSA certifications. Offers 5G anti-vibration capability enhancing durability in industrial applications. Widely used in industrial automation, mechanical and electrical equipment, and household appliances.
