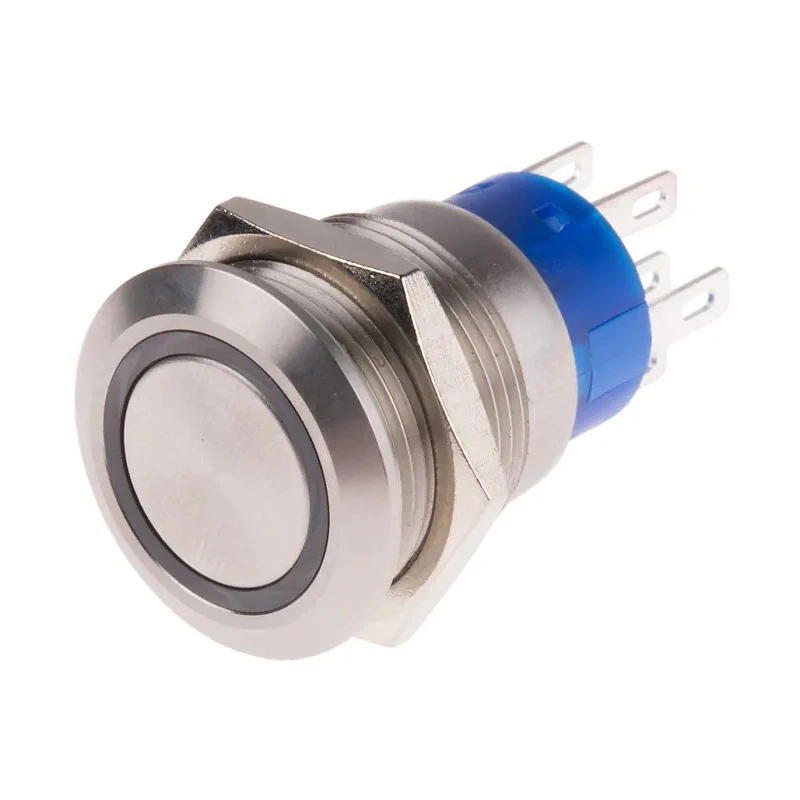

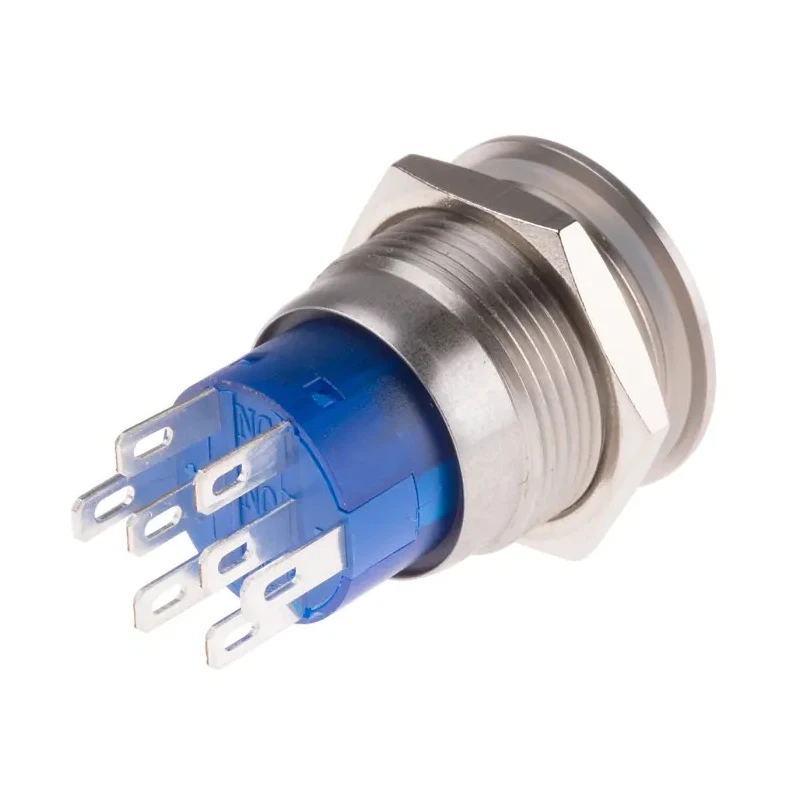

RS PRO Illuminated Latching Push Button Switch, Panel Mounted, 19.2 mm Cutout, DPDT, Blue LED, IP67, 250 V AC, 5A 111-5828

Name: RS PRO Illuminated Latching Push Button Switch, Panel Mounted, 19.2 mm Cutout, DPDT, Blue LED, IP67, 250 V AC, 5A 111-5828
Brand: RS PRO
SKU: 396992
Price: 1875.91 INR
Availability: InStock



Category Push Button Switches Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	111-5828
IP Rating	IP67
Mount Type	Panel
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Switch Configuration	2 NO/2 NC
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Solder Pin
Standards/Approvals	cULus Recognized E 187490, ENEC 18, IK10
LED Colour	Blue
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Round
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

The switch features a durable silver actuator with a round style.
It operates with a latching mechanism for reliable control.
Rated IP67 for robust protection against dust and water ingress.
Supports contact voltages of 250 V AC and DC at a current rating of 5A.
Equipped with solder pin terminals suitable for secure connections.
Designed to operate between temperatures of -20°C and 55°C.
Complies with safety and quality standards including cULus Recognized E 187490, ENEC 18, and IK10.
Ideal for industrial, medical, and communication equipment applications.

Product Description

RS PRO 111-5828 Illuminated Latching Push Button Switch is a high-quality panel mount switch featuring a 19.2 mm cutout, double-pole double-throw (DPDT) contact configuration, and a blue LED indicator for visual status feedback.

This switch utilizes a latching mechanism, ensuring the actuator remains in its set position until manually reset. The silver-colored round actuator enhances usability and operational feedback. Designed according to IP67 standards, it provides excellent protection against dust ingress and water exposure, making it suitable for harsh industrial environments.

It supports contact voltages up to 250 V AC and DC with a maximum current rating of 5A, catering to diverse electrical and electronic control applications. The switch terminals are solder pins for reliable electrical connections.

Operating reliably in temperature ranges from -20°C to 55°C, this component adheres to safety certifications including cULus Recognized E 187490, ENEC 18, and IK10 impact protection rating, highlighting its robustness and compliance with international standards.

Typical use cases include medical equipment, industrial control systems, and communications gear. It is a premium solution for demanding switching applications requiring illuminated feedback and durability.

The switch features a durable silver actuator with a round style. It operates with a latching mechanism for reliable control. Rated IP67 for robust protection against dust and water ingress. Supports contact voltages of 250 V AC and DC at a current rating of 5A.

Equipped with solder pin terminals suitable for secure connections. Designed to operate between temperatures of -20°C and 55°C. Complies with safety and quality standards including cULus Recognized E 187490, ENEC 18, and IK10.

Ideal for industrial, medical, and communication equipment applications. Explore a broad range of switches and electrical components at EnvMart for industrial automation and control needs.
