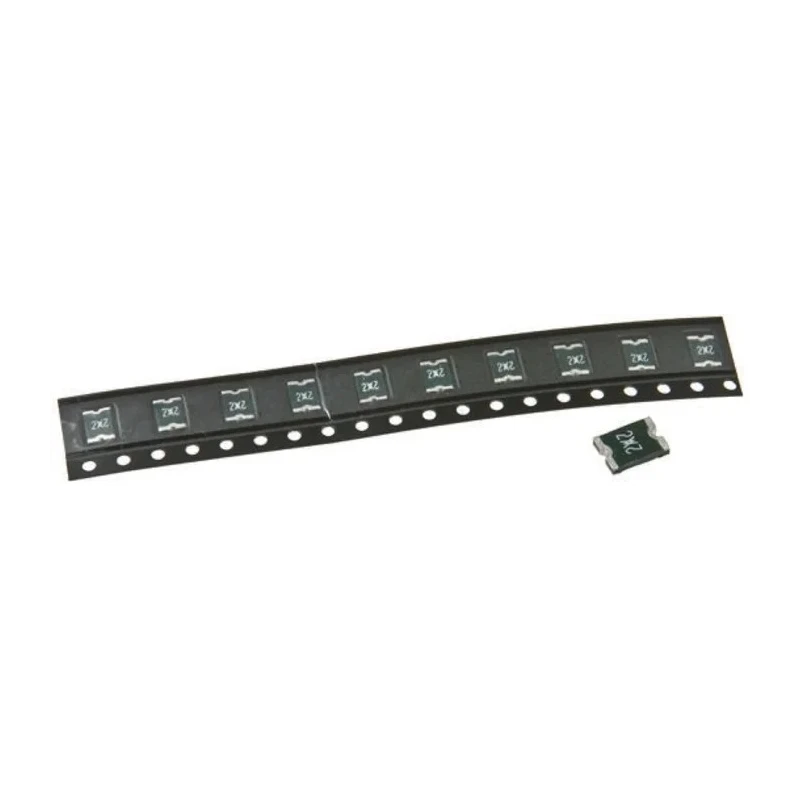

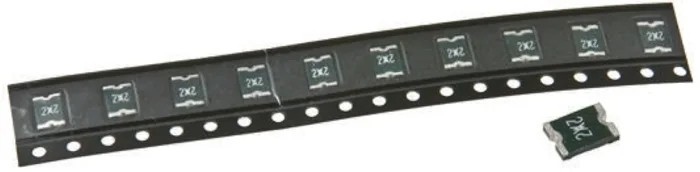

Littelfuse Resettable Fuse Mini SMDC Series 1.6 A Hold Current 9V dc Voltage MINISMDC160F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 9V dc |
| Brand | Littelfuse |
| Height | 0.48mm |
| Length | 4.73mm |
| Model | MINISMDC160F |
| Width | 3.41mm |
| Current Rating | 100A |
| Series | miniSMDC |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Trip Current | 3.2A |
| Power Dissipation | 0.8W |
| Terminal Material | Matt Tin |
| Standards/Approvals | RoHS, TUV, CSA, UL |
| Time to Trip | 1s |
| Hold Current | 1.6A |
| Minimum Resistance | 0.03Ω |
| Maximum Resistance | 100mΩ |
Key Features
- Surface-mount technology enables compact, automated assembly.
- PolySwitch Mini SMDC series provides fast time-to-trip and low resistance.
- Halogen-free construction ensures environmental safety.
- Maintenance-free automatic reset supports thousands of cycles.
- Small footprint suitable for space-constrained electronic designs.
- Designed for use in computers, automotive, multimedia, and consumer electronics.
- Features compliance with RoHS, TUV, CSA, and UL standards.
- Package supplied in reel format for efficient handling.
Product Description
Littelfuse MINISMDC160F Resettable Fuse Mini SMDC Series is a compact, surface mount device rated at a hold current of 1.6 A and operating voltage of 9V dc. It provides effective circuit protection by switching rapidly from low to high resistance during excessive current conditions, protecting sensitive electronic and electrical components.
This device has a trip current of 3.2 A and a fast time to trip of 1 second, ensuring prompt response to overloads. The PolySwitch Mini SMDC series fuse is halogen-free and designed for maintenance-free automatic reset for thousands of cycles without needing replacement.
The fuse features a matt tin terminal material and offers minimal resistance in normal operation with a minimum resistance of 0.03 ohms and maximum resistance capped at 100 milliohms. It operates in temperatures ranging from -40°C to +85°C with 0.8W power dissipation capability.
This resettable fuse is widely employed in industrial, automotive, computer, multimedia, and telecommunications applications. Its small size and absence of a fuse holder make it ideal for space-sensitive circuit designs. Compliance with RoHS, TUV, CSA, and UL standards guarantees safety and reliability in various environments.
Package type is reel, facilitating automated pick-and-place processes in manufacturing. Typical applications include power supplies, security systems, instrumentation, control systems, and automotive electronics.
Surface mount technology enables compact, automated assembly. PolySwitch Mini SMDC series offers fast trip time and low resistance. Halogen-free for environmental compliance. Automatic reset capability allows thousands of cycles maintenance free.
Compact size suitable for space-constrained applications. Meets RoHS, TUV, CSA, and UL certification standards. Reel packaging supports efficient manufacturing processes. Used in computers, automotive, power supplies, and telecommunications.
Explore more electrical components and Resettable Fuses at EnvMart for your industrial and commercial circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 1.6 A.
The trip current for the MINISMDC160F is 3.2 A.
It operates at a voltage of 9V dc.

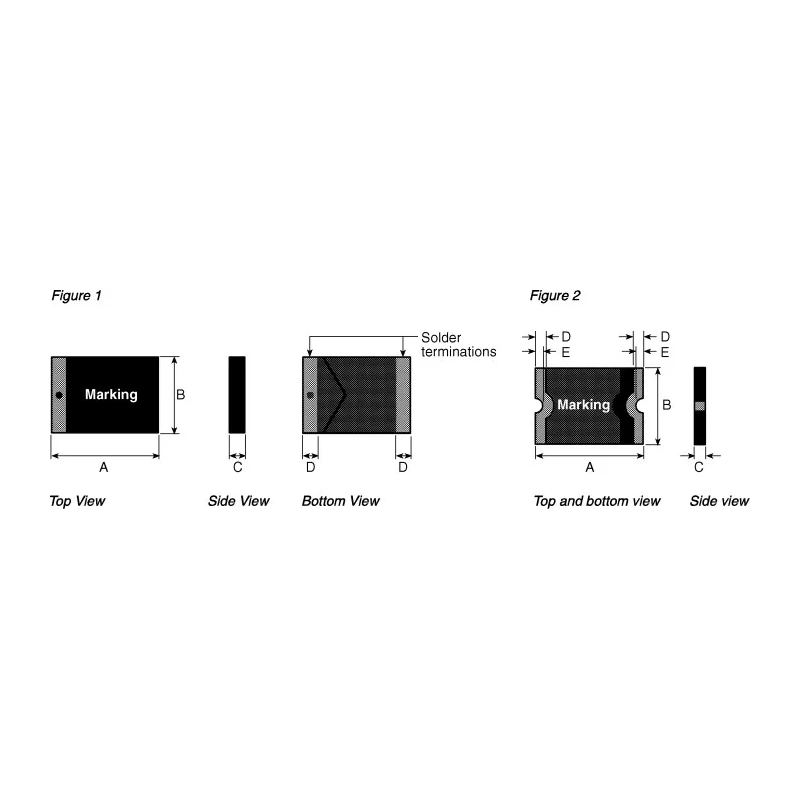

The dimensions of the MINISMDC160F are 4.73 mm in length, 3.41 mm in width, and 0.48 mm in height.
The time to trip for this resettable fuse is 1 second.
This model operates within a temperature range of -40°C to +85°C.
It has a power dissipation capability of 0.8 W.
This resettable fuse complies with RoHS, TUV, CSA, and UL standards.
The minimum resistance is 0.03 ohms, and the maximum resistance is capped at 100 milliohms.
It is supplied in reel format for efficient handling and automated assembly.
It is widely employed in applications such as power supplies, automotive electronics, computers, and telecommunications.
The terminal material for the MINISMDC160F is matt tin.
