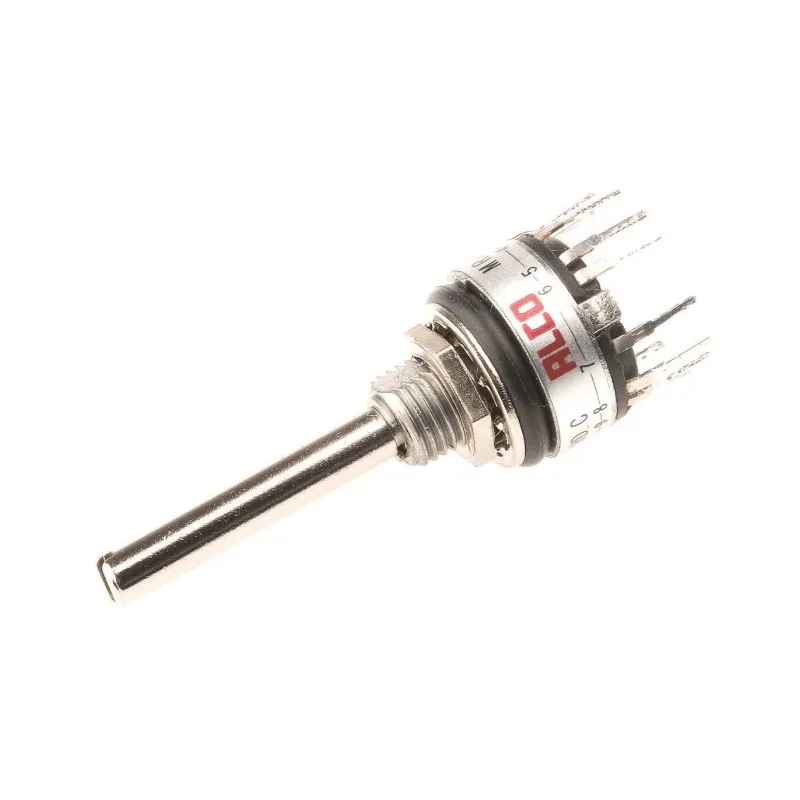

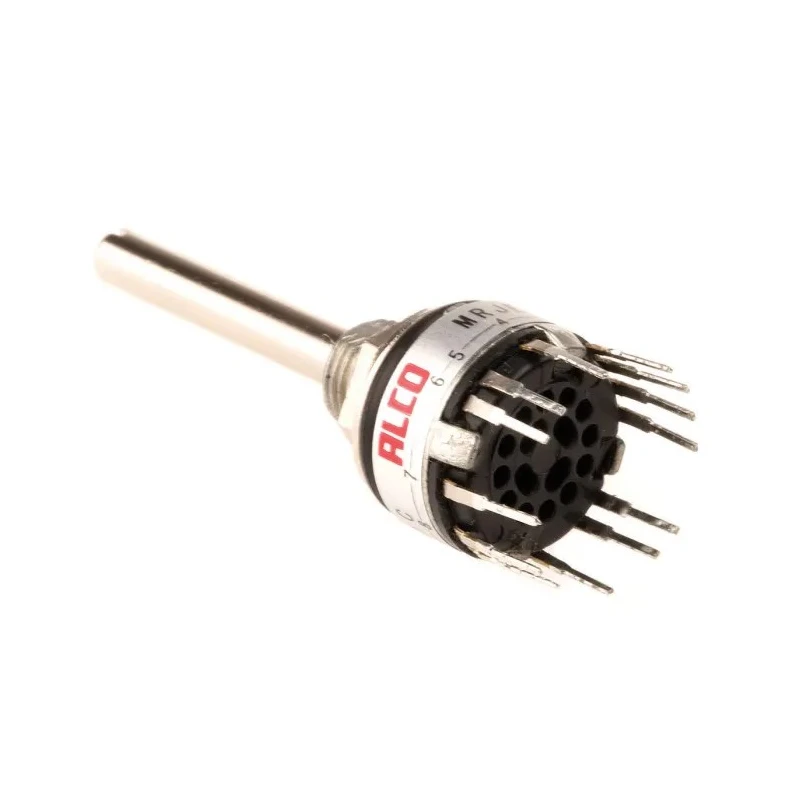

TE Connectivity 12 Position SPST Miniature Rotary Switch 400mA Solder MRJE1-1204
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 11.9mm |
| Brand | TE Connectivity |
| Height | 34.04mm |
| Model | MRJE1-1204 |
| Depth | 11.94mm |
| IP Rating | IP67 |
| Width | 11.94mm |
| Mount Type | Panel |
| Housing Material | Epoxy |
| Series | MRJ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Number of Positions | 12 |
| Switch Configuration | Breakaway Header |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Maximum dc Voltage | 20V dc |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Operation | Latching, Momentary |
| Switch Contact Current | 400mA |
| Mechanical Life | 30000Cycles |
| Maximum AC Voltage | 20V ac |
| Angle of Throw | 30 ° |
| Panel cut-out | Ø6.4mm |
| C & K M, 12 Position SPST Rotary Switch, 250mA, SolderBrand | C & K |
| Rotary switch 12 way MRJE seriesBrand | TE Connectivity |
Key Features
- Miniature rotary switch with IP67 rating for dust and water protection.
- Epoxy housing material ensures durability and insulation.
- Supports operating temperatures from -20°C to 70°C.
- Gold-plated nickel break-before-make contacts for reliable long-term operation.
- Panel mount type with a panel cut-out diameter of Ø6.4mm.
- Solder terminal type suitable for PCB mounting.
- Mechanical life of 30,000 cycles ensures longevity.
- Switch operation supports both latching and momentary functions.
Product Description
TE Connectivity MRJE1-1204 is a 12 position SPST miniature rotary switch rated for a 400mA contact current suitable for both AC and DC voltage up to 20V. It is designed with an epoxy housing and gold-plated nickel break-before-make contacts, offering reliable and durable switching functionality.
This rotary switch features both latching and momentary switch operations and is rated IP67 for ingress protection, making it highly resistant to dust and water ingress. It operates reliably in industrial and laboratory environments with a temperature range from -20°C to 70°C.
The compact design includes a panel mount with a panel cut-out size of Ø6.4mm and solder terminal connections, suitable for mounting on printed circuit boards.
Applications include communication equipment, portable testing and monitoring devices, industrial control panels, and other electrical automation systems requiring precise position selection in switching mechanisms.
Miniature rotary switch with 12 switching positions in SPST configuration. Durable epoxy housing and gold-plated contacts provide long mechanical life of 30,000 cycles. IP67 rated for dust tight and water immersion protection ensures rugged use.
Supports latching and momentary switch functions for diverse control needs. Operates over a wide temperature range from -20°C to 70°C for reliability in various environments. Panel mount with Ø6.4mm cut-out and solder terminals for easy installation.
Country of Origin: Japan. Explore more industrial and electronic switches in the Rotary Switches category on EnvMart for varied applications across manufacturing, automation, and electrical engineering.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity MRJE1-1204 rotary switch has a maximum contact current rating of 400mA.
This rotary switch is rated IP67, providing protection against dust and water immersion.
It operates reliably within a temperature range of -20°C to 70°C.
The MRJE1-1204 features 12 switching positions in an SPST configuration.
This model supports panel mounting with a cut-out diameter of Ø6.4mm.
The housing is made from epoxy, ensuring durability and insulation.
It supports both latching and momentary switch operations.
The mechanical life of the MRJE1-1204 is rated at 30,000 cycles.
The dimensions are 11.94mm in width, 11.94mm in depth, and 34.04mm in height.
The maximum voltage rating for both AC and DC is 20V.
Yes, this rotary switch complies with RoHS standards.
It has solder terminals suitable for PCB mounting.
