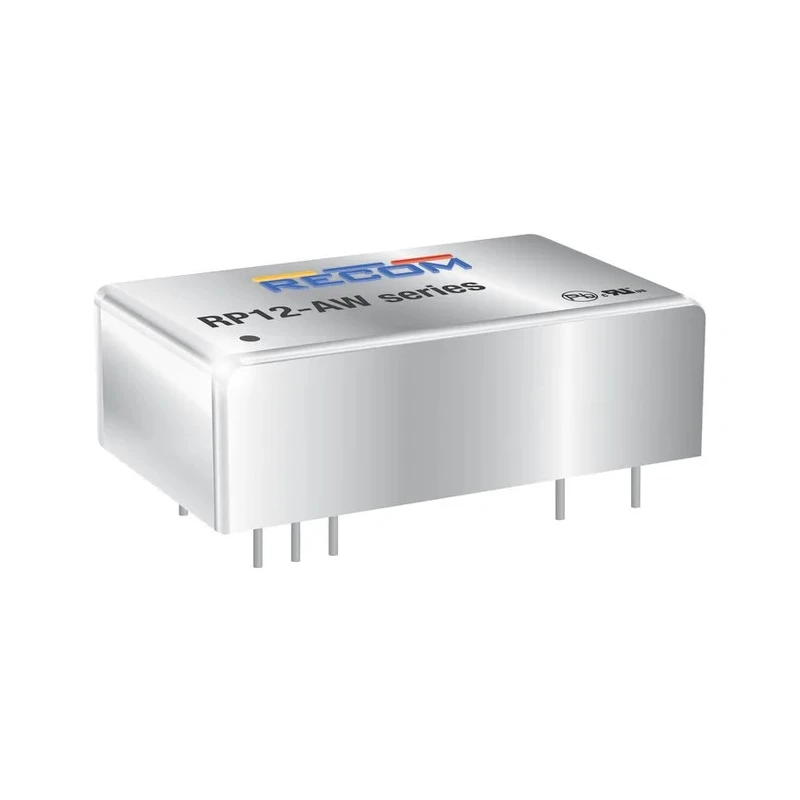

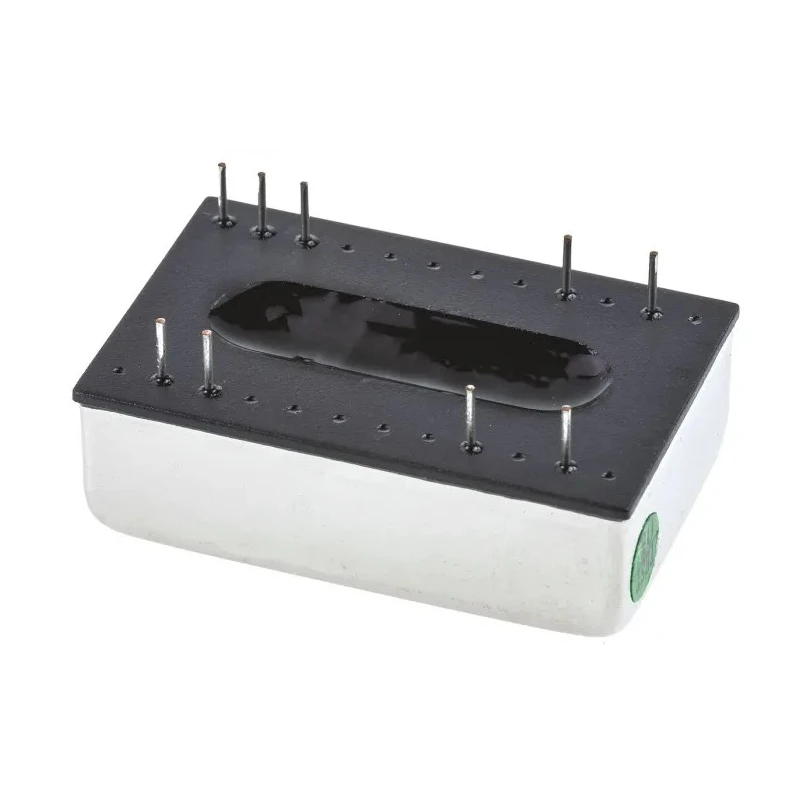

Recom DC/DC Converter 12V DC Output 1A 12W Through Hole 9-36V DC Input RP12-AW
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RP12-AW DC/DC Converter, 12V dc/ 1 A, 36V dc |
| Brand | Recom |
| Efficiency | 87% |
| Length | 31.8mm |
| Model | RP12-AW |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | RP12-AW |
| Maximum Operating Temperature | 65°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2350000h |
| Number of outputs | 1 |
| Maximum Output Power | 12W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |

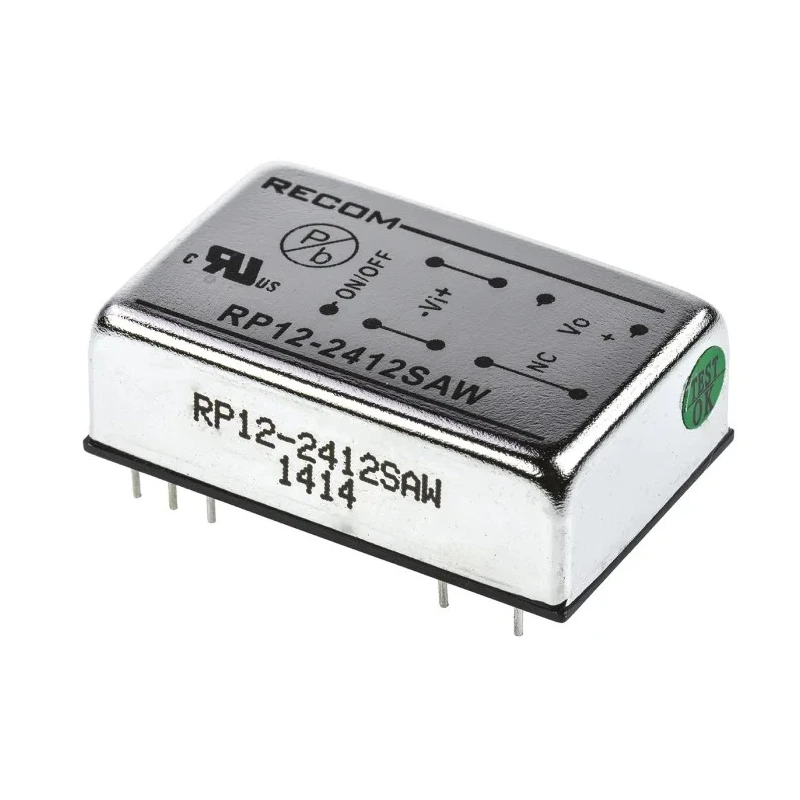

| RECOM DC-DC Converter, Pi Filter on Input, 4 | 1 Input Voltage Range - RP12-AW Series - RP12-2412SAW |
Key Features
- Operates efficiently with 87% efficiency to minimize energy loss.
- Compact DIP package with 24 pins for reliable through hole mounting.
- Wide input voltage range from 9V to 36V DC supports diverse DC power sources.
- Integrated Pi filter on input ensures ripple-free and stable DC output.
- Provides electrical protections including overload, overvoltage, and continuous short circuit protection for safety.
- High isolation voltage of 1.6kV DC safeguards against voltage surges.
- Designed for operating temperature range from -40°C to 65°C with efficient air convection cooling.
- Mean time between failure (MTBF) of 2,350,000 hours ensures long-term reliability.
Product Description
Recom RP12-AW DC/DC Converter is a high-quality power supply solution designed to convert a broad range of DC input voltages from 9 to 36V into a steady and regulated 12V DC output at 1 Ampere with 12 Watts power capacity. The device employs a DIP package with 24 pins enabling through-hole mounting, providing a rugged and reliable form factor suitable for industrial and commercial applications.
Featuring an integrated Pi filter on the input, the converter ensures ripple-free voltage output critical for sensitive electronic and battery-charging applications. With an impressive efficiency rating of 87%, the converter minimizes wasted energy and heat generation, relying on simple air convection for cooling within an operating temperature range of -40°C to 65°C.
The unit includes comprehensive electrical protections such as overload protection, overvoltage protection, and continuous short-circuit protection, making it well-suited for use in photovoltaic and renewable energy systems, mobile and transportation devices, and various other electronics requiring stable DC power.
Its 1.6kV DC isolation rating prevents damage and ensures user safety from voltage surges. The exceptionally high mean time between failure (MTBF) of approximately 2.35 million hours underscores its reliability for long-term deployments.
High efficiency of 87% to reduce energy loss and heat. Wide 9-36V DC input voltage range supports diverse power sources. 1A steady 12V DC output power for consistent device operation. Robust through-hole DIP package with 24 pins for easy PCB integration.
Advanced protections for overload, overvoltage, and short circuits ensure operational safety. 1.6kV isolation voltage insulates the circuitry from surges. Designed to operate reliably from -40°C to 65°C with convection cooling.
Ideal for industrial, photovoltaic, renewable energy, mobile, and transportation applications. RoHS compliant with environmentally safe manufacturing standards.
This Recom DC-DC Converter combines durability, efficiency, and protection, making it a trusted choice for modern electronic power management needs. Explore additional DC/DC Converter models and related power supply solutions in the Recom product range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the Recom RP12-AW DC/DC converter is from 9V to 36V DC.
This model provides a maximum output power of 12 Watts.
The converter can output a steady current of 1 Ampere.
The efficiency rating of the RP12-AW is 87%, which helps minimize energy loss.
It uses a through-hole mounting type with a DIP package containing 24 pins.
The operating temperature range for this converter is from -40°C to 65°C.
This unit includes overload protection, overvoltage protection, and continuous short-circuit protection.
The isolation voltage of the RP12-AW is 1.6kV DC, which protects against voltage surges.
The mean time between failure (MTBF) for this converter is approximately 2,350,000 hours.
Yes, the Recom RP12-AW is RoHS compliant, adhering to environmentally safe manufacturing standards.
This converter is suitable for industrial, photovoltaic, renewable energy, mobile, and transportation applications.

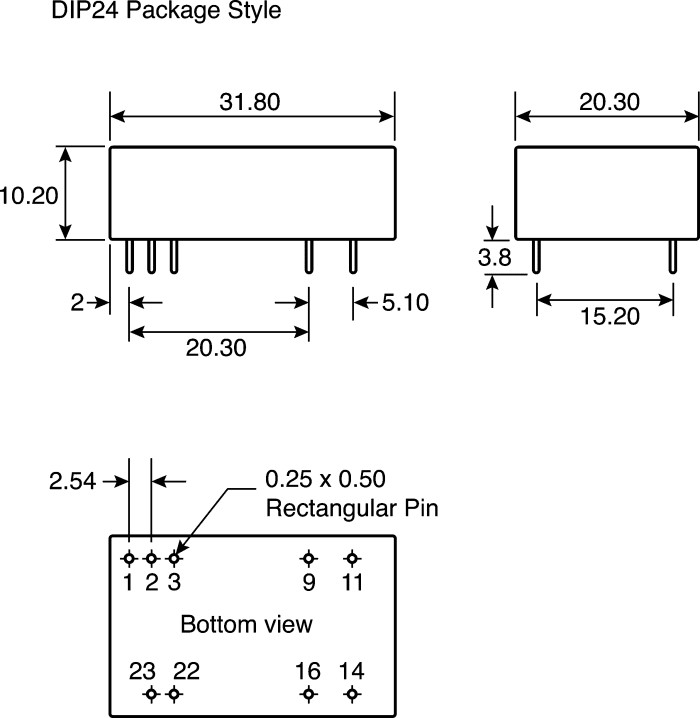

The dimensions of this converter are 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
