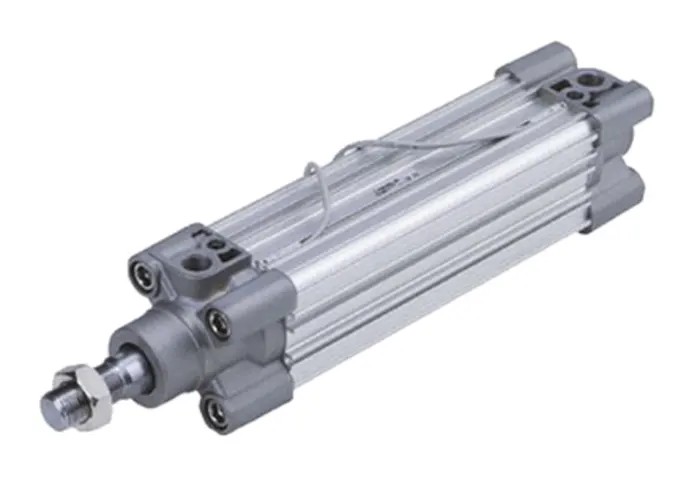

SMC Pneumatic Piston Rod Cylinder CP96, 300 mm Stroke, Double Acting, Basic Mount, Air Cushion, M16x1.5 Thread, 70°C

SMC CP96SDB50-300C Pneumatic Piston Rod Cylinder from the CP96 series features a 300 mm stroke length and double acting operation. This pneumatic actuator is designed to convert compressed air into precise linear motion, ideal for industrial automation, assembly line operations, and process control.

The cylinder employs a robust tie-rod construction with durable materials: a carbon steel piston rod, aluminium alloy cylinder tube, aluminium die-cast rod cover, and steel tie rods and nuts. It features air cushioning combined with a bumper to smoothly decelerate piston velocity at the ends of the stroke, protecting mechanical parts.

Designed with a basic mounting configuration, the CP96 cylinder is compatible with standard bracket and foot-mount arrangements commonly found in manufacturing equipment. The piston rod has a metric male thread of M16 x 1.5 for reliable attachments to tools and fixtures.

This cylinder supports a maximum piston speed of 1000 mm/s and operates reliably in temperatures up to 70°C. Its compliance with ISO 15552 standards ensures interchangeability with other pneumatic cylinders in automated systems.

Typical applications include pick-and-place actuators in automated assembly lines, clamp and fixture actuators in robotic cells, valve and gate actuation in process control systems, and press or transfer operations requiring tie-rod cylinder robustness.

Provides 300 mm effective stroke for extended linear travel. Double acting cylinder with basic mount style for standard installations. Constructed with carbon steel piston rod and aluminium alloy cylinder tube. Equipped with adjustable air cushioning and bumper cushioning to reduce end-impact forces.

Maximum piston speed of 1000 mm/s supports fast cycle operation. Rated for maximum operating temperature of 70°C in elevated temperature environments. Piston rod features metric male thread M16 x 1.5 for secure mechanical connection.

Designed for use in assembly line actuators, clamp and fixture applications, valve and gate actuation, and press operations. Conforms to ISO 15552 dimensional standard for interchangeability. Explore more pneumatic cylinders and actuators from SMC and other brands at EnvMart for versatile industrial automation solutions.
