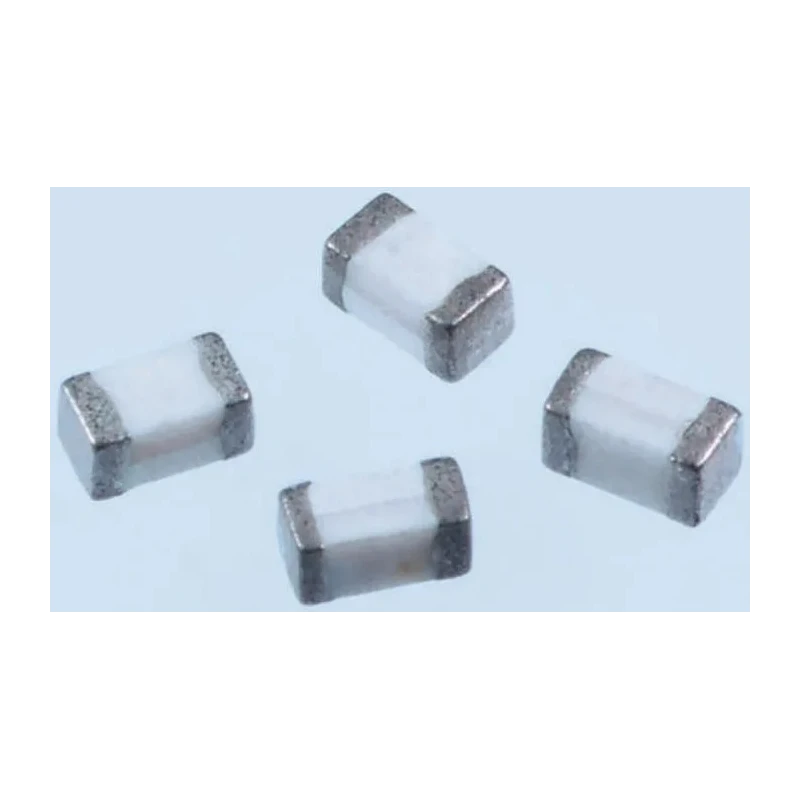

Murata 0402 Unshielded Wirewound Surface Mount Inductor 9.1 nH ±5% 300 mA Idc Q8 LQG15HS9N1J02D

Murata LQG15HS9N1J02D is a high-quality 0402 size unshielded wirewound surface mount inductor designed for use in high-frequency electronic circuits. This inductor offers an inductance of 9.1 nH with a tolerance of ±5%, making it highly suitable for RF applications, chokes, WLAN networks, and mobile communication equipment.

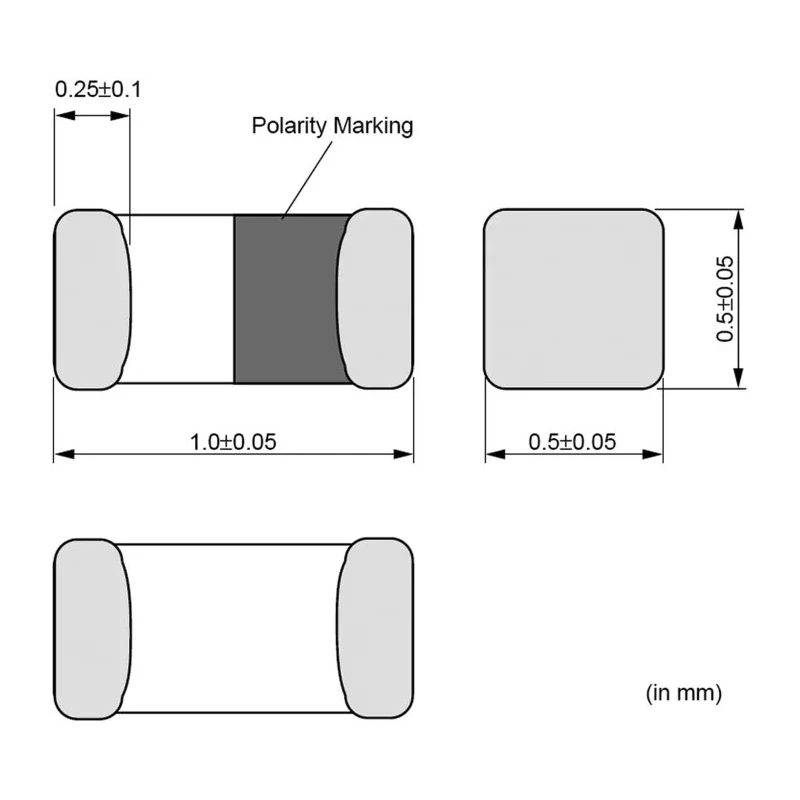

Its compact dimensions (1mm length and 0.5mm height and depth) enable placement in densely packed PCBs. The wirewound construction combined with a maximum DC resistance of 260 mΩ ensures low power dissipation and excellent reliability over a wide temperature range from -55°C to 125°C.

The package uses a paper tape format, facilitating automated pick-and-place assembly. With a maximum self-resonant frequency of 3.4 GHz and a quality factor of 8, this inductor performs well in demanding RF filter and matching circuits.

The solder termination style secures electrical connection and mechanical stability on printed circuit boards. Murata’s manufacturing quality, made in Japan, guarantees a consistent supply of inductors meeting tight industrial specifications.

Package size: 0402 (1mm x 0.5mm x 0.5mm). Inductance: 9.1 nH ±5% tolerance. Maximum DC current: 300 mA. Maximum DC resistance: 260 mΩ. Operating temperature: -55°C to 125°C. Maximum self-resonant frequency: 3.4 GHz. Termination: Solder.

Packaging: Paper tape. RF circuits, chokes, WLAN, mobile communications.

This inductor is ideal for industrial, telecommunications, consumer electronics, and laboratory applications where compact, low-loss inductors are critical. It complies with high manufacturing standards but does not carry automotive qualification or specific certifications.
