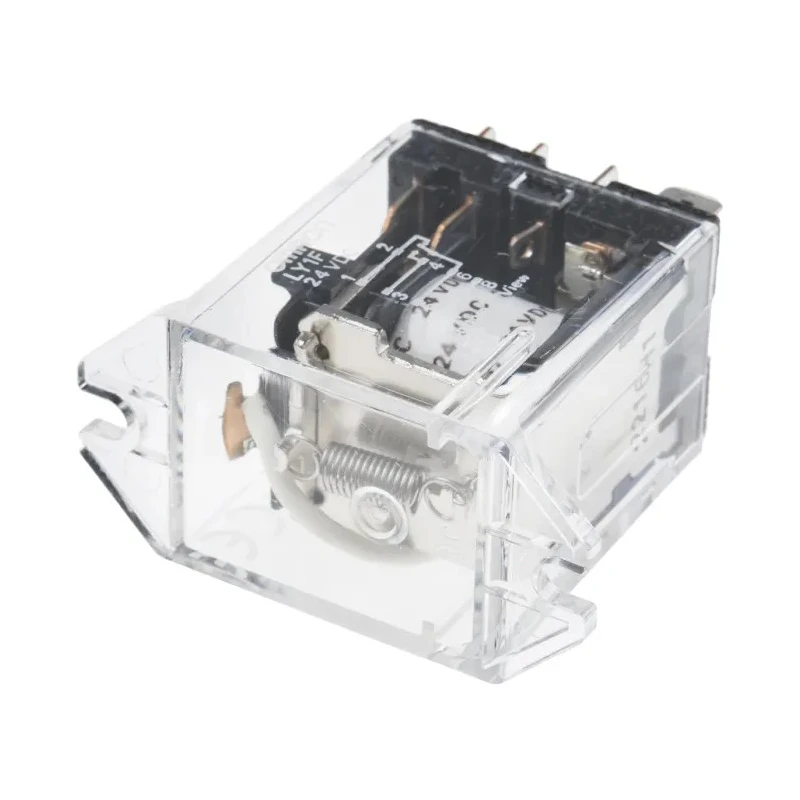

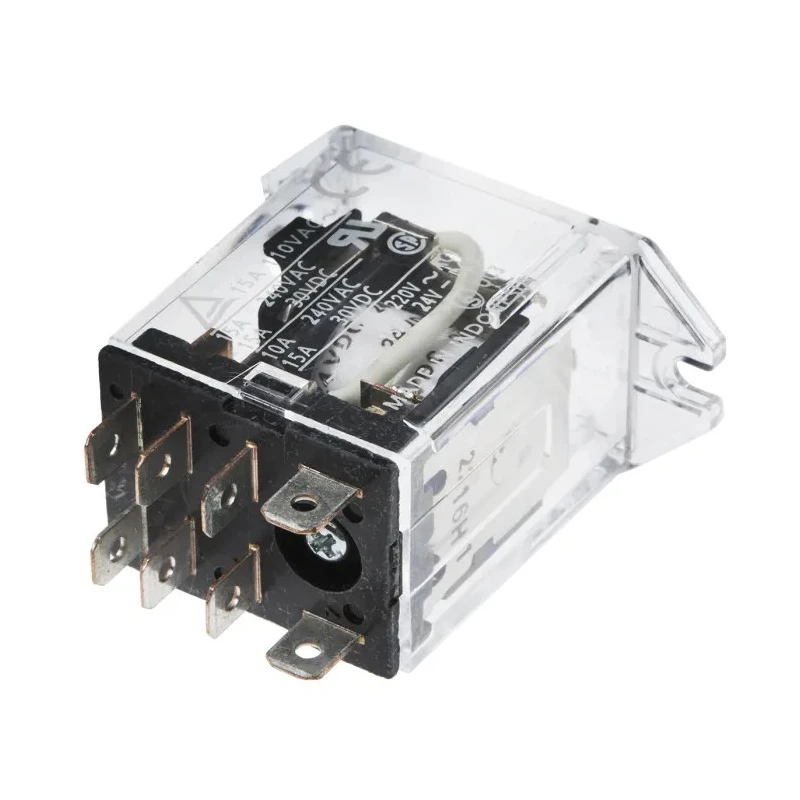

Omron Power Relay, 24V DC Coil, 15A Switching Current, SPDT Contact Configuration LY1F 24VDC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 44mm |
| Length | 22.5mm |
| Model | LY1F 24VDC |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | LY1 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V |
| Coil Power | 900mW |
| Switching Power | 0.9W |
Key Features
- Operates with 24V DC coil voltage consuming 900mW power.
- Single-pole double-throw (SPDT) contact configuration enables versatile switching.
- Rated for switching currents up to 15A at 125V AC/DC.
- Constructed with silver alloy contacts for low 50mΩ contact resistance.
- Compact design measuring 35.5mm width, 44mm height, and 22.5mm length.
- Plug-in terminal type simplifies installation and replacement.
- Operating temperature range from -25°C to 55°C for varied industrial environments.
- Complies with UL and CSA standards for regulated installations.
Product Description
Omron LY1F 24VDC Power Relay is a compact electromechanical device designed specifically for industrial control circuits requiring reliable switching performance. Featuring a 24V DC coil, this relay consumes 900mW power to operate efficiently, making it suitable for control panels and automation racks.
This power relay provides a single-pole double-throw (SPDT) contact configuration capable of switching currents up to 15A at 125V AC or DC, ideal for moderate power load control and signal routing in industrial machine control systems.
The relay incorporates silver alloy contacts providing low contact resistance of 50mΩ, ensuring efficient conductivity and longevity. The plug-in terminals facilitate easy installation and quick replacement without rewiring, supporting fast maintenance in control panels.
Designed to offer high reliability, it operates across an ambient temperature range of -25°C to 55°C, suitable for various industrial and HVAC control applications. The coil resistance of 650Ω guarantees predictable coil current performance for stable operation.
Operates with 24V DC coil voltage consuming 900mW power. Single-pole double-throw (SPDT) contact configuration enables versatile switching. Rated for switching currents up to 15A at 125V AC/DC. Constructed with silver alloy contacts for low 50mΩ contact resistance.
Compact design measuring 35.5mm width, 44mm height, and 22.5mm length. Plug-in terminal type simplifies installation and replacement. Operating temperature range from -25°C to 55°C for varied industrial environments. Complies with UL and CSA standards for regulated installations.
Coil resistance of 650Ω ensures stable coil current draw.
This Omron power relay is widely used in industrial automation, motor control interfaces, auxiliary load switching, and HVAC control systems due to its precise control and reliable performance.
EnvMart offers comprehensive listings of industrial relays, including this Omron LY1F 24VDC power relay, enabling users to find quality control components with confidence.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC and consumes 900mW of power.
It is rated for switching currents up to 15A at 125V AC or DC.
This model features a single-pole double-throw (SPDT) contact configuration, allowing versatile switching capabilities.
The relay has a compact design with dimensions of 35.5mm in width, 44mm in height, and 22.5mm in length.
It has a low contact resistance of 50mΩ, which ensures efficient conductivity.
The relay operates effectively within a temperature range of -25°C to 55°C.
It features a plug-in terminal type, which simplifies installation and replacement.
The contacts are constructed from silver alloy, providing durability and low resistance.
Yes, it complies with UL and CSA standards, making it suitable for regulated installations.
The coil resistance is 650Ω, which ensures stable coil current performance.
It is widely used in industrial automation, motor control interfaces, auxiliary load switching, and HVAC control systems.
This relay is part of the LY1 series by Omron.
