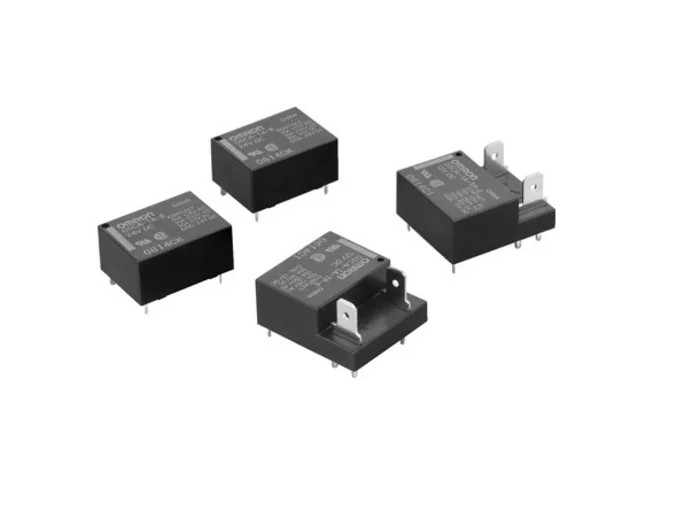

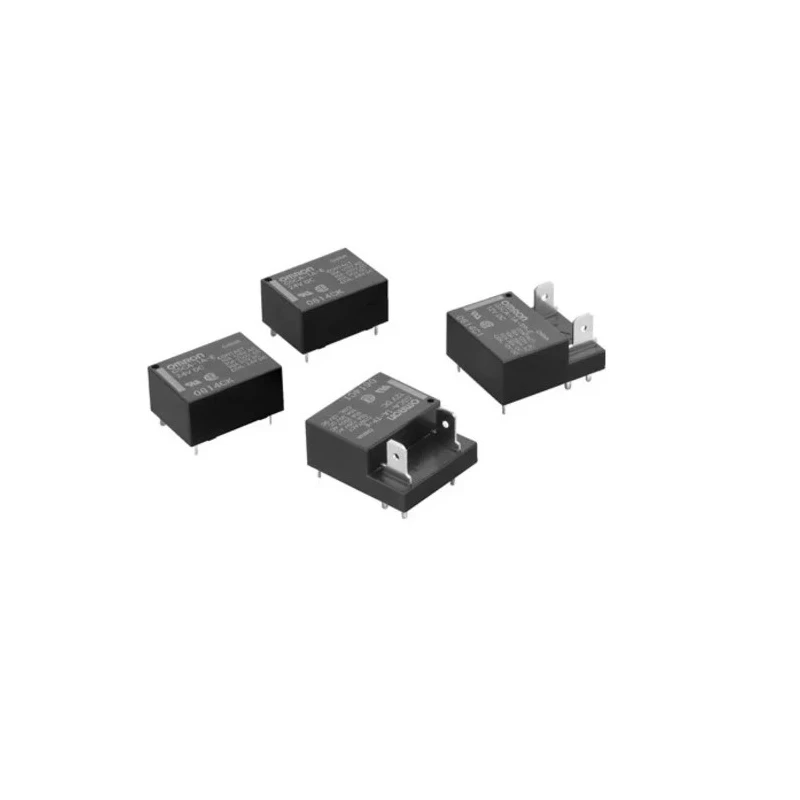

Omron PCB Relay SPST, 5V DC Coil Voltage, 15A Switching Current, Silver Alloy Contacts G5CA-1A-E DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 22mm |
| Model | G5CA-1A-E DC5 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5CA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 200mW |
Key Features
- The relay features a Single Pole Single Throw (SPST) contact configuration.
- Designed for PCB mounting with through-hole terminal type.
- Coil resistance is 2.9kΩ with a coil power rating of 200mW.
- Silver alloy contacts ensure reliable conduction and minimal contact resistance of 100mΩ.
- Operational temperature range extends from -25°C to 70°C, suitable for diverse environments.
- Supports switching voltages up to 240V AC and 60V DC.
- Complies with RoHS environmental standards.
- High-sensitivity coil design offers low power consumption for efficient operation.
Product Description
Omron G5CA-1A-E DC5 is a high-quality PCB power relay with a 5V DC coil voltage and 15A switching current, designed specifically for switching power in household appliances and industrial devices.
This SPST relay features a reliable silver alloy contact construction ensuring durable and stable electrical connections. It is mounted via through-hole terminals onto printed circuit boards for secure installation.
The relay coil resistance measures 2.9kΩ with a coil power consumption of 200mW and operates with a coil current of approximately 40mA. It is engineered for a wide operational temperature range from -25°C to 70°C, allowing its use in varied industrial and commercial environments.
The compact dimensions of 22mm length, 16mm width, and 11mm height make it suitable for space-constrained applications. Its switching capacity includes AC voltages up to 240V and DC voltages up to 60V, enabling versatility in controlling different electrical loads.
The unit complies with RoHS regulations, ensuring lead-free and environmentally responsible manufacturing. The high-sensitivity coil design further optimizes power use by requiring only 200mW for operation.
The relay has a Single Pole Single Throw (SPST) contact configuration. Silver alloy contacts provide enhanced conductivity and reliability. Through-hole terminal type facilitates easy PCB mounting. Suitable for use in industrial automation, control panels, household appliance switching, and signal conditioning systems.
Compact form factor aids integration into diverse electronic assemblies. Operational over a wide temperature range from -25°C to 70°C. Compliance with RoHS Directive supports environmentally friendly applications. Coil voltage rated at 5 Vdc with resistance of 2.9kΩ.
Switching current capacity of up to 15A ensures robust load handling.
This product is part of the renowned Omron G5CA series known for quality and reliability in power relay applications. For browsing related components and further industrial electrical products, explore categories under Power Relays at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage of 5V DC.
It can handle a maximum switching current of 15A.
The dimensions are 22mm in length, 16mm in width, and 11mm in height.
The operational temperature range extends from -25°C to 70°C.
It features a Single Pole Single Throw (SPST) contact configuration.
The contact material is silver alloy, which ensures reliable conduction.
The coil resistance is 2.9kΩ.
The coil power consumption is 200mW.
It supports switching voltages up to 240V AC and 60V DC.
It is designed for PCB mounting with a through-hole terminal type.
Yes, it complies with RoHS environmental standards.
It is suitable for use in industrial automation, control panels, household appliance switching, and signal conditioning systems.
