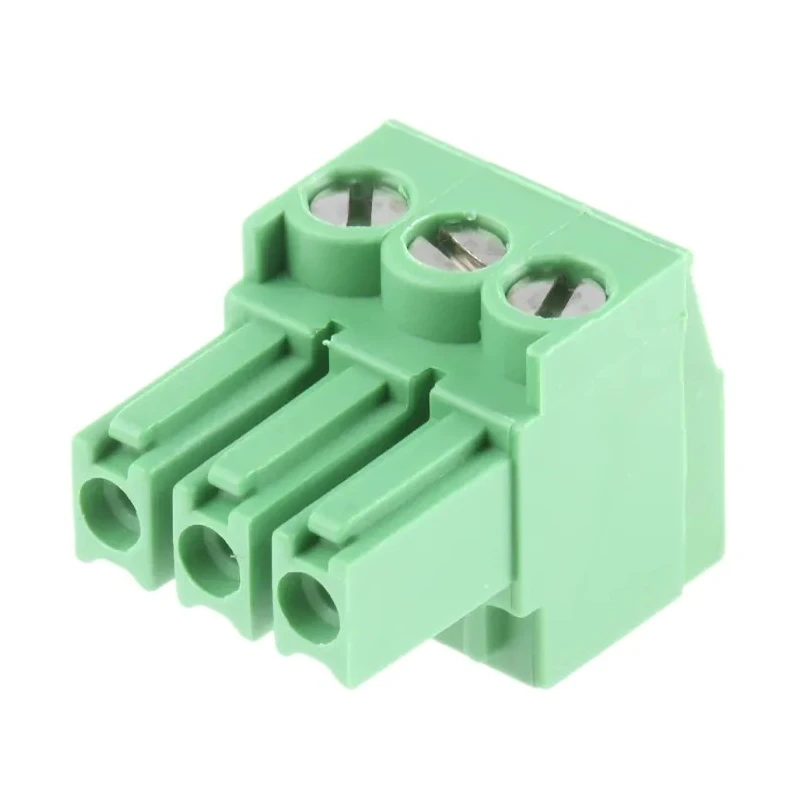

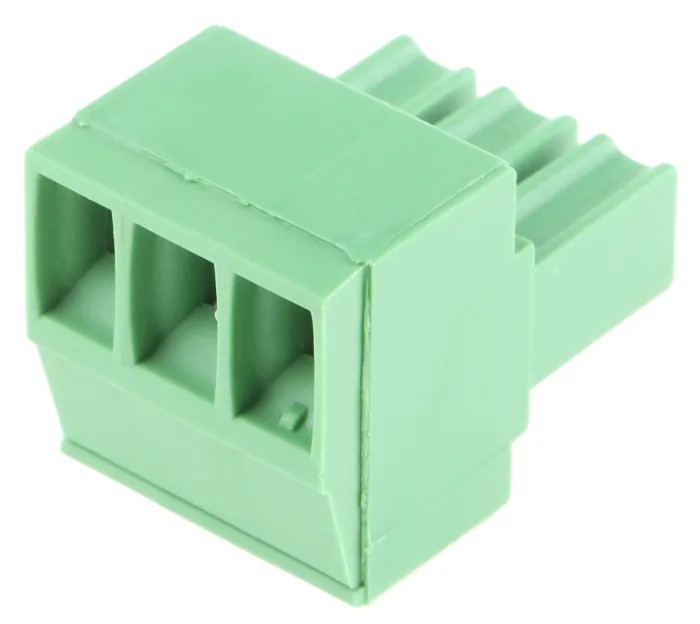

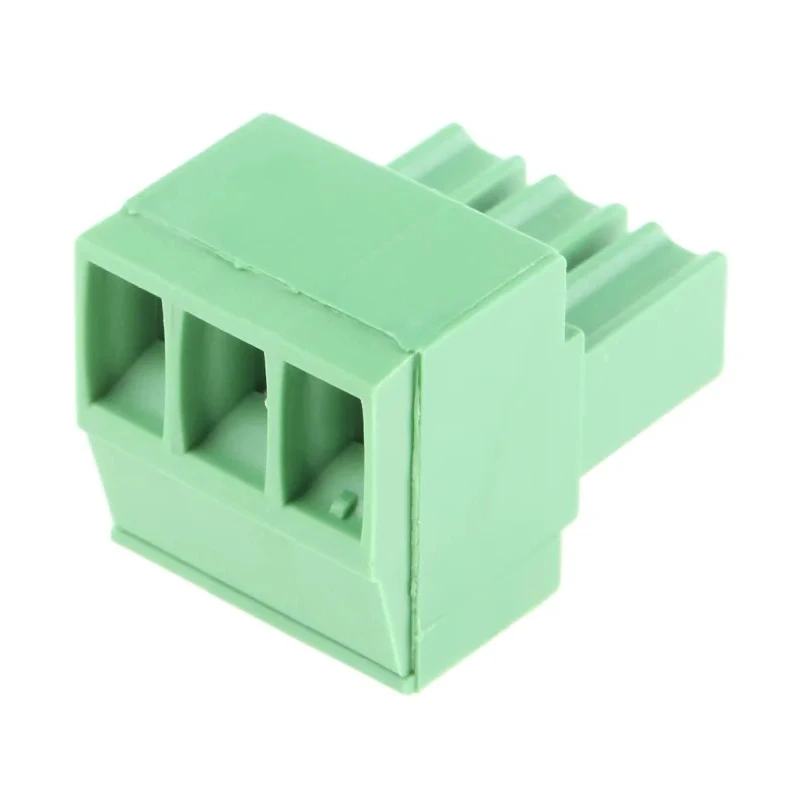

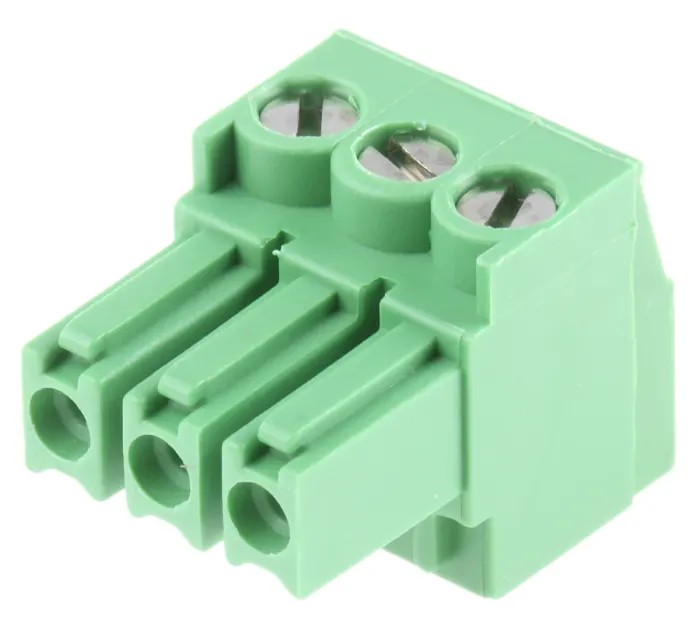

TE Connectivity Buchanan Series Pluggable Terminal Block 3-Contact 3.5 mm Pitch 1 Row 300V AC 11A 284506-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 11A |
| Length | 10.5mm |
| Model | 284506-3 |
| Depth | 15.5mm |
| Width | 11.1mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Constructed with green polyamide housing for durability and insulation.
- Supports currents up to 11 amperes at 300V AC voltage.
- Compatible with wire sizes ranging from 0.05 mm² to 2 mm² (AWG 30 to 14).
- Right angle orientation suitable for PCB mounting and compact designs.
- Features rising cage clamp design with M2 nickel plated brass screws and tin plated contacts.
- Side wire entry for easy installation and maintenance.
- Designed to mate with compatible Buchanan series headers for secure connections.
- Meets UL 94V-0 flammability standard for electrical components.
Product Description
TE Connectivity 284506-3 Pluggable Terminal Block is a high-quality component designed for reliable electrical connections in industrial and commercial applications. It features a 3-contact configuration with a pitch of 3.5 mm, arranged in a single row, providing efficient space utilization and dependable performance.
The terminal block housing is made from green polyamide 6.6 glass fiber reinforced material, ensuring excellent mechanical strength and insulation properties to withstand rigorous environments. The connector is male with a right angle orientation, making it ideal for side wire entry and PCB mounting applications.
This terminal block supports wire sizes ranging from 0.05 mm² up to 2 mm² (30 to 14 AWG), accommodating a wide range of conductor types. It is rated for a maximum current of 11 amperes and voltage up to 300V AC, suitable for various industrial power and control circuits.
The rising cage clamp design incorporates M2 nickel plated brass screws and tin plated contacts to provide strong, vibration-resistant connections with minimal maintenance. Green polyamide housing for durability and insulation.
Rising cage clamp with nickel plated screws and tin plated contacts. Right angle male connector orientation for compact PCB mounting. Supports wire size from 0.05 mm² to 2 mm² (AWG 30 to 14). Rated for 11A current at 300V AC voltage.
Compact size with length 10.5 mm, width 11.1 mm, and depth 15.5 mm. Meets UL 94V-0 standards to ensure flame resistance.
This terminal block is widely used in electrical and electronic components, power connectors, industrial machinery, control panels, and automation systems. The Buchanan series ensures compatibility with a broad range of TERMI-BLOK accessories and headers, making it an essential component for both prototyping and large-scale manufacturing.
Explore the TE Connectivity product range at EnvMart for high-performance connectors suitable for demanding industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 11 amperes.
This terminal block can handle voltages up to 300V AC.
It supports wire sizes ranging from 0.05 mm² to 2 mm², equivalent to AWG 30 to 14.
The pitch of this terminal block is 3.5 mm.
The dimensions are 10.5 mm in length, 11.1 mm in width, and 15.5 mm in depth.
The housing is constructed from green polyamide, which provides durability and insulation.
It features side wire entry for easy installation and maintenance, along with a right angle orientation suitable for PCB mounting.
It employs a rising cage clamp design with M2 nickel plated brass screws and tin plated contacts for strong connections.
Yes, it meets the UL 94V-0 flammability standard for electrical components.
The connector gender is male.
The country of origin for this terminal block is India.
