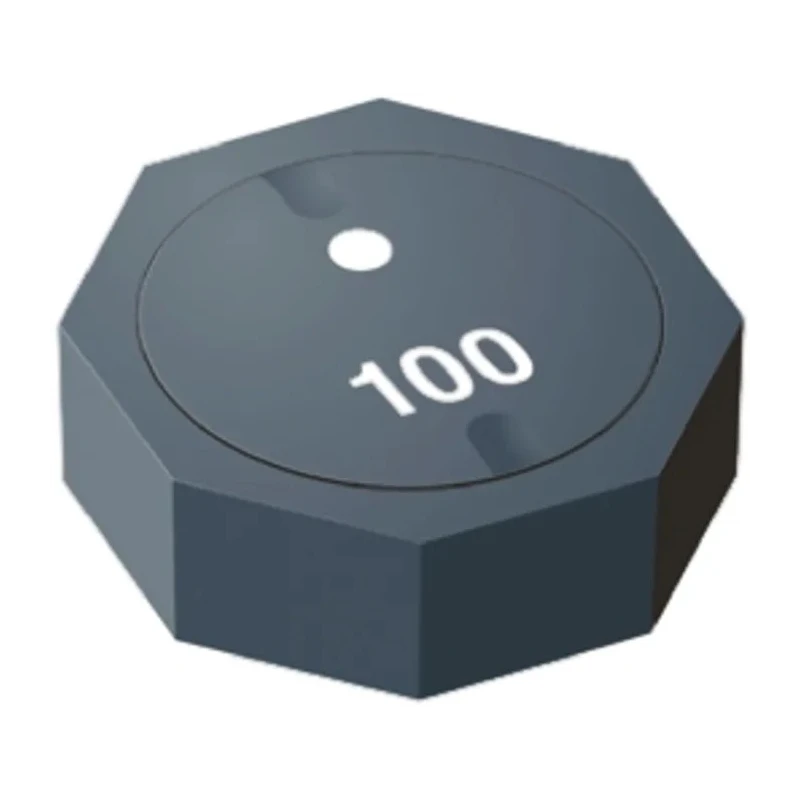

Bourns Shielded Wirewound Surface Mount Inductor 10 μH ±30% 3.8 A IDC Ferrite Core SRU1038

Free Delivery in India | Lowest Global Shipping Charges

Bourns Shielded Wirewound Surface Mount Inductor 10 μH ±30% 3.8 A IDC Ferrite Core SRU1038

Name: Bourns Shielded Wirewound Surface Mount Inductor 10 μH ±30% 3.8 A IDC Ferrite Core SRU1038
Brand: BOURNS
SKU: 395557
Price: 0.7 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	3.8mm
Length	10mm
Model	SRU1038
Depth	10mm
Packaging	Reel
Series	SRU1038
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	1038
Maximum DC Current	3.8A
Maximum DC Resistance	25mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	20MHz
Minimum Quality Factor	24
Inductor Construction	Wirewound

Key Features

Features a ferrite core for stable magnetic performance.
Constructed with a wirewound design supporting a quality factor of at least 24.
Packaged in a 1038 surface mount case suitable for automated assembly.
Operates reliably between -40°C to 125°C maximum operating temperature.
Offers maximum DC resistance of 25 mΩ and self-resonant frequency up to 20 MHz.
Compliance with RoHS standards ensures environmental safety.
Moulded construction provides mechanical robustness.
Ideal for use in DC/DC converter inputs, power supplies, and similar electronic applications.

Product Description

Bourns SRU1038 is a shielded wirewound Surface Mount Inductor featuring a ferrite core, offering 10 μH inductance with ±30% tolerance and a maximum DC current rating of 3.8 A IDC. It is designed according to the SRU1038 series specifications and housed in a 1038 package case with a length and depth of 10 mm, and height of 3.8 mm.

This inductor is constructed with a wirewound technique providing stable inductance and a minimum quality factor of 24, ensuring efficient energy storage and minimal losses. It is moulded for added protection and reliability in surface mount applications.

The product operates effectively within a temperature range from -40°C minimum to 125°C maximum, making it suitable for demanding industrial and electronic environments. Its maximum DC resistance is 25 mΩ, supporting low power loss, and it offers a maximum self-resonant frequency up to 20 MHz.

The ferrite core allows efficient magnetics with shielding to reduce electromagnetic interference. The inductor is RoHS compliant and is packaged on reels to facilitate easy handling and automation in manufacturing lines.

Applications include use in input and output stages of DC/DC converters, power supplies, telecommunications, automotive electronics (non-automotive standard), and other industrial electronic circuits where compact, shielded inductors are required.

Features a ferrite core for stable magnetic performance. Constructed with a wirewound design supporting a quality factor of at least 24. Packaged in a 1038 surface mount case suitable for automated assembly. Operates reliably between -40°C to 125°C maximum operating temperature.

Offers maximum DC resistance of 25 mΩ and self-resonant frequency up to 20 MHz. Compliance with RoHS standards ensures environmental safety. Moulded construction provides mechanical robustness. Ideal for use in DC/DC converter inputs, power supplies, and similar electronic applications.

Explore a wide range of Bourns inductors and components on EnvMart for your industrial and electronic design needs.
