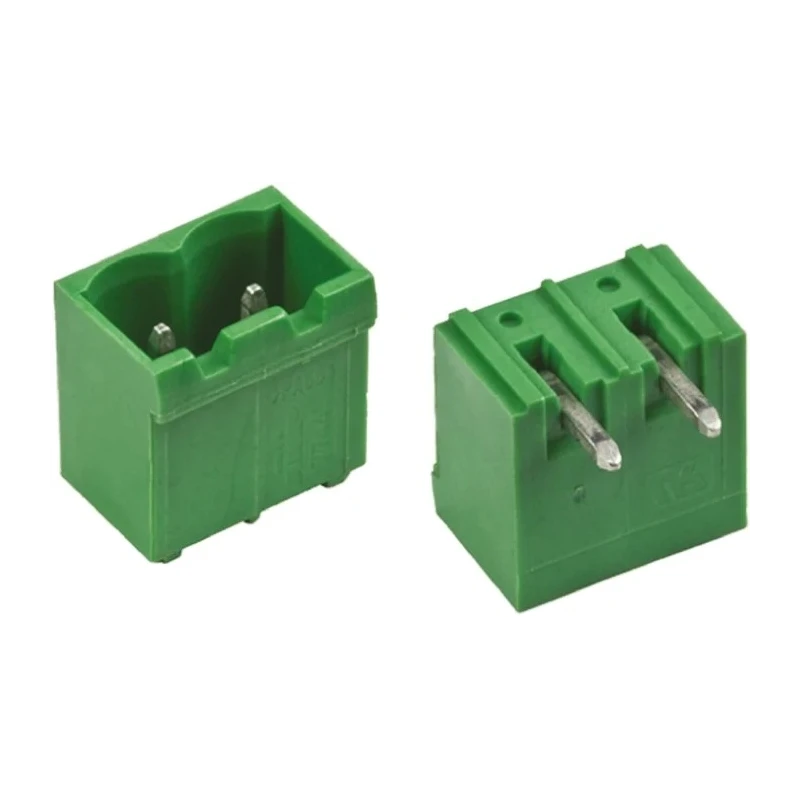

TE Connectivity Buchanan Series Pluggable Terminal Block 2-Contact 5.08 mm Pitch 1 Row 796638-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Model | 796638-2 |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- This terminal block supports a current rating of 15A for reliable electrical performance.
- The connector features a right-angle orientation to facilitate PCB mounting.
- It is made from durable green polyamide material ensuring insulation and mechanical strength.
- Wire connection is achieved via solder method to provide secure contact.
- The product accommodates wire sizes from 0.05 mm² to 3 mm² (12 to 30 AWG).
- Designed as a female connector with 300V voltage rating for industrial and commercial applications.
- Complies with UL 94V-0 flammability rating for safety compliance.
- Ideal for use in power connectors and electronic assemblies requiring pluggable terminal solutions.
Product Description
TE Connectivity 796638-2 pluggable terminal block is a high-quality electrical connector designed for industrial and electronic applications requiring robust and convenient PCB terminal connections. This model features two contacts spaced at a 5.08 mm pitch arranged in a single row with right-angle orientation to enable optimal circuit board integration.
The housing is manufactured from green polyamide 6.6 fiberglass-reinforced material, providing excellent mechanical strength and electrical insulation while meeting UL 94V-0 flammability standards. It supports wire sizes ranging from 0.05 mm² to 3 mm² (12 to 30 AWG), accommodating small to medium gauge wiring securely.
With a current rating of 15A and voltage rating of 300V, the terminal block is suitable for power connectors and various electrical devices in industrial, manufacturing, and control system applications. The solder-type wire connection method ensures a permanent and highly reliable electrical contact. This component is ideal for facilitating efficient assembly and maintenance in complex electronic systems.
Specifically designed as a female connector with right-angle configuration, the Buchanan series provides a trusted product line optimized for easy insertion and pluggable terminal needs.
This terminal block features two contacts in one row with 5.08 mm spacing. It applies UL 94V-0 compliant polyamide plastic housing for durability. Supports wire sizes 0.05 to 3 mm², 12 to 30 AWG, covering a broad wiring range.
Offers current carrying capacity up to 15A and voltage rating of 300V. Solder wire connection method ensures secure and lasting electrical contact. Right-angle orientation facilitates compact PCB mounting. Green color aids in easy identification during assembly and maintenance.
Widely used in industrial automation, electronics manufacturing, and power connectors.
Choose TE Connectivity 796638-2 for a reliable, industry-standard pluggable terminal block solution that enhances connection performance and product longevity. Browse more Pluggable Terminal Blocks in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 15A, ensuring reliable electrical performance.
The voltage rating for this terminal block is 300V, making it suitable for various industrial and commercial applications.
It accommodates wire sizes ranging from 0.05 mm² to 3 mm² (12 to 30 AWG), allowing for a broad wiring range.
The wire connection is achieved via a solder method, which provides secure and lasting electrical contact.
The housing is made from green polyamide 6.6 fiberglass-reinforced material, ensuring mechanical strength and electrical insulation.
This model features a right-angle orientation, facilitating compact PCB mounting.
This terminal block has two contacts arranged in a single row, spaced at a 5.08 mm pitch.
It belongs to the Buchanan series, which is designed for pluggable terminal solutions.
It complies with the UL 94V-0 flammability rating, ensuring safety compliance in various applications.
The country of origin for this terminal block is India.
It is suitable for use in power connectors and various electrical devices in industrial, manufacturing, and control system applications.
The terminal block is green, which aids in easy identification during assembly and maintenance.
