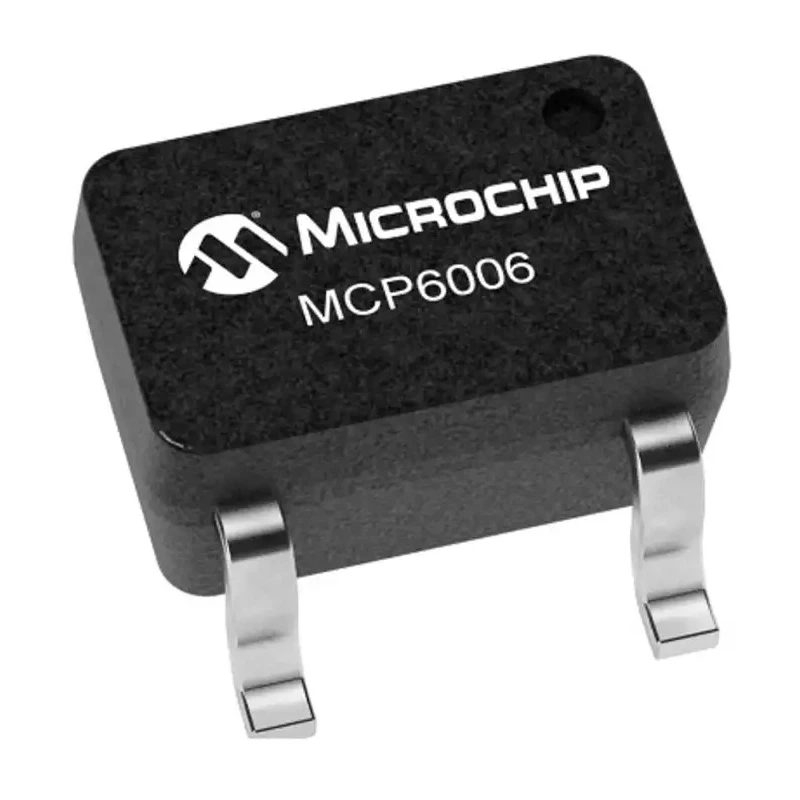

Microchip Operational Amplifier 1 MHz Single Channel 5-Pin SC-70-5 Package 5.5V MCP6006T-E/LT

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier 1 MHz Single Channel 5-Pin SC-70-5 Package 5.5V MCP6006T-E/LT

Name: Microchip Operational Amplifier 1 MHz Single Channel 5-Pin SC-70-5 Package 5.5V MCP6006T-E/LT
Brand: Microchip
SKU: 395074
Price: 0.29 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.1mm
Length	2mm
Model	MCP6006T-E/LT
Width	2.1mm
Mount Type	Surface
Series	MCP6006
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	SC-70-5
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	1 pA
Vos - Input Offset Voltage	1.6 mV
Slew Rate	1.9V/μs

Key Features

Operates with a supply voltage up to 5.5V, suitable for low voltage systems.
Offers a gain bandwidth product of 1 MHz for accurate amplification.
Features low input bias current of 1 pA ensuring minimal signal disturbance.
Wide operating temperature range from -40°C to 125°C for reliable performance.
Output current capability up to 30 mA for driving various loads.
Low input offset voltage of 1.6 mV maximizes precision.
Slew rate of 1.9 V/μs enables fast signal response.
Meets automotive grade AEC-Q100 qualification for high quality.

Product Description

Microchip MCP6006T-E/LT is a precision operational amplifier with a 1 MHz gain bandwidth product, designed for single-channel amplification in compact surface mount applications. It features a 5-pin SC-70-5 package, supports supply voltages up to 5.5V, and operates efficiently with low quiescent current, making it ideal for portable and battery-powered devices.

This device boasts low input bias current (1 pA), low input offset voltage (±1.6 mV max), and rail-to-rail input and output capability, ensuring accurate signal processing in demanding industrial, automotive, and communication systems. With a slew rate of 1.9 V/μs and the ability to drive output currents up to 30 mA, it supports rapid signal transitions and varied load conditions effectively.

The MCP6006T-E/LT operates over a wide temperature range (-40°C to 125°C), suitable for harsh environments including automotive and industrial applications. Its robust EMI filtering reduces susceptibility to electromagnetic interference from power lines and radio frequency sources, enhancing performance stability in sensitive electronics.

Physical dimensions are compact with a length of 2 mm, width of 2.1 mm, and height of 1.1 mm, facilitating integration into space-constrained printed circuit boards. The device complies with RoHS standards and meets automotive AEC-Q100 Grade 1 for high reliability.

Gain bandwidth product of 1 MHz enables precision signal amplification. Low input bias current minimizes measurement errors. Supports single supply operation from 1.8V to 5.5V. Rail-to-rail input and output for full signal swing.

Quick start-up time around 6 microseconds enhances responsiveness. Automotive qualified under AEC-Q100 for quality assurance. EMI filtering protects against electromagnetic noise. Compact SC-70-5 package supports high density PCB layout.

Wide operating temperature range ensures durability in extreme conditions. Output current capability up to 30 mA suitable for diverse loads.

This operational amplifier is well suited for applications in industrial control, automotive electronics, portable instrumentation, power management, and communication equipment. Its combination of performance, robustness and small form factor make it a reliable component for sophisticated electronic designs.
