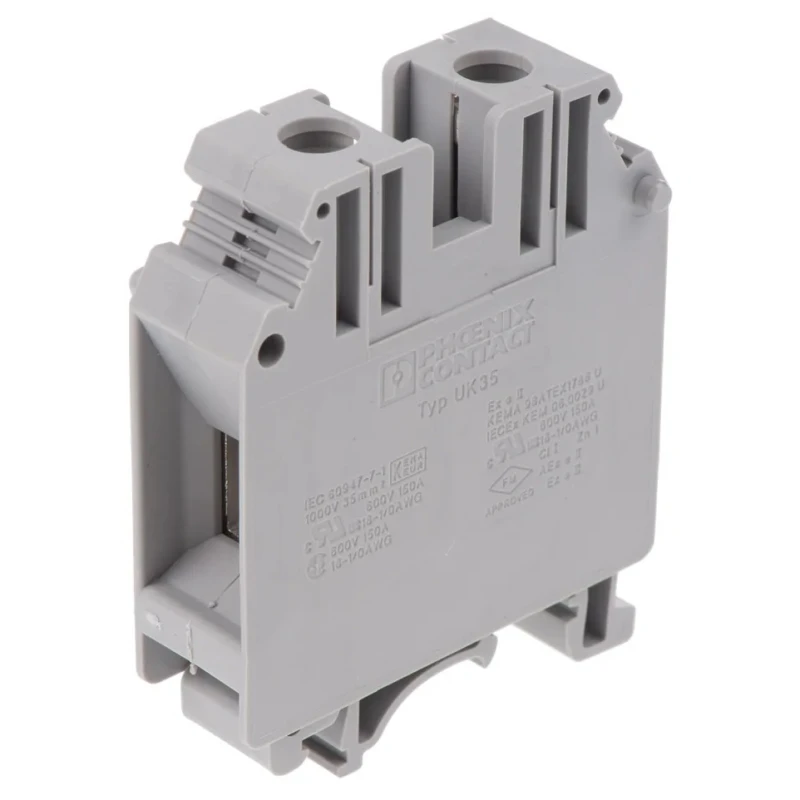

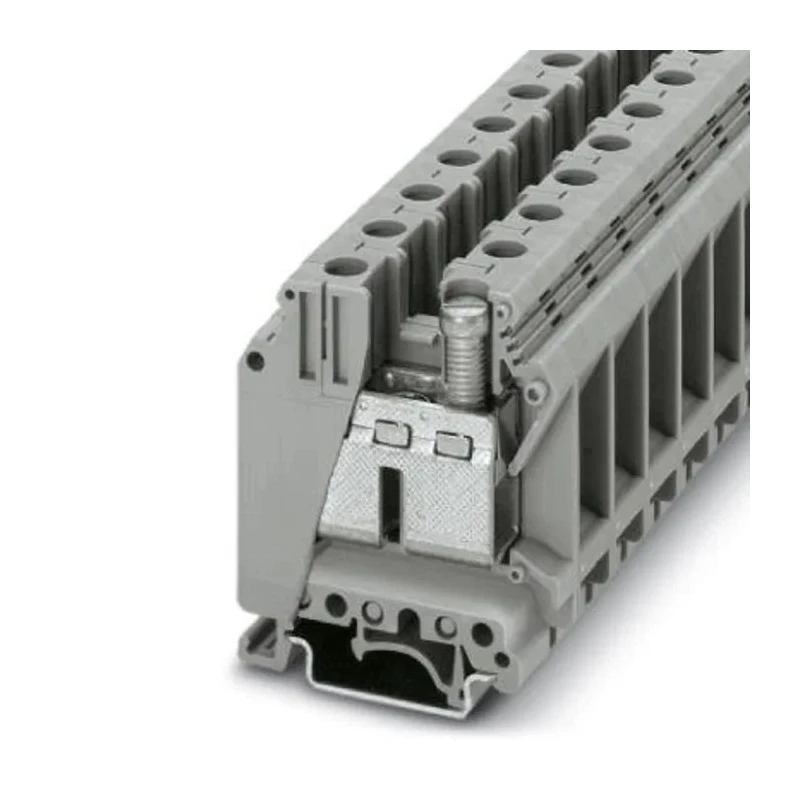

Phoenix Contact Feed Through Terminal Block 1-Level Screw 0.75-35 mm² 150A 1kV ATEX UK 35 Series 3008012
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3008012 |
| Series | UK 35 |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | CCC, CSA, cULus Recognized, DNV GL-EX, EAC Ex, GL, IEC 60947-7-1, NEPSI, UL |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 0AWG |
| Cable CSA | 0.75, 35mm² |
| Terminal Block Current | 150A |
Key Features
- This terminal block supports a wide wire size range from 18 AWG to 0 AWG.
- Constructed with grey polyamide housing ensuring excellent electrical insulation and abrasion resistance.
- The screw termination features a screw-locking system for secure, vibration-resistant connections.
- Suitable for mounting onto UK 35 series DIN rails commonly used in control cabinets.
- Certified for use in hazardous environments with ATEX approval and multiple international standards compliance.
- Designed to operate reliably between -60°C and 105°C temperature range.
- Meets ANSI/ESD S20.20 and BS EN 61340-5-1 electrostatic control standards to protect sensitive equipment.
- Ideal for industrial, automation, electrical distribution, and control applications requiring safe and reliable wiring.
Product Description
Phoenix Contact 3008012 Feed Through Terminal Block is a durable one-level screw terminal block designed for robust electrical connection applications. It accepts cable cross sections from 0.75 mm² up to 35 mm² and supports wire sizes from 18 AWG to 0 AWG. The terminal block features a rated current capacity of 150A and withstands operating voltages up to 1kV, making it suitable for demanding power distribution and control panel wiring.
The terminal block's grey polyamide housing provides excellent electrical insulation and resistance against mechanical wear. Screw-type terminations ensure secure conductor fixing with an integrated screw-locking mechanism to prevent loosening through vibration. This reduces maintenance needs and increases reliability of connections in industrial environments.
This model is compatible with UK 35 series DIN rails, allowing easy snap-on mounting in electrical cabinets or control panels. It is built to operate under extreme temperatures ranging from -60°C to 105°C, meeting the stringent requirements of harsh environments.
The product bears ATEX certification, making it approved for installation in hazardous areas where explosive atmospheres may exist. It also complies with a broad spectrum of standards and approvals including CCC, CSA, cULus, DNV GL-EX, IEC 60947-7-1, NEPSI, and UL, demonstrating wide international acceptance.
Electrostatic discharge safety is ensured via compliance with ANSI/ESD S20.20 and BS EN 61340-5-1 standards, protecting sensitive electrical components during handling and operation. This terminal block is ideal for industrial automation, electrical distribution systems, manufacturing plants, and other commercial or industrial electrical applications.
This terminal block supports a wide wire size range from 18 AWG to 0 AWG. Constructed with grey polyamide housing ensuring excellent electrical insulation and abrasion resistance. The screw termination features a screw-locking system for secure, vibration-resistant connections.
Suitable for mounting onto UK 35 series DIN rails commonly used in control cabinets. Certified for use in hazardous environments with ATEX approval and multiple international standards compliance. Designed to operate reliably between -60°C and 105°C temperature range.
Meets ANSI/ESD S20.20 and BS EN 61340-5-1 electrostatic control standards to protect sensitive equipment. Ideal for industrial, automation, electrical distribution, and control applications requiring safe and reliable wiring.
Manufactured in Germany ensuring high quality and durability.
Explore the Phoenix Contact series and related industrial electrical components at EnvMart to find compatible terminal blocks, accessories, and advanced connection solutions for your application needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a current rating of 150A, making it suitable for demanding power distribution applications.
It accepts wire sizes ranging from 18 AWG to 0 AWG, with a cable cross-section from 0.75 mm² to 35 mm².
The maximum operating voltage for this terminal block is 1kV, allowing it to be used in high-voltage applications.
It is designed to operate reliably between -60°C and 105°C, making it suitable for extreme environments.
Yes, it is certified for use in hazardous environments with ATEX approval, ensuring safety in explosive atmospheres.
This model features screw-type terminations, which provide secure connections and are resistant to vibration.
It is compatible with UK 35 series DIN rails, allowing for easy snap-on mounting in control cabinets.
The terminal block is constructed with grey polyamide housing, providing excellent electrical insulation and abrasion resistance.
It is ideal for industrial automation, electrical distribution systems, and control applications that require reliable wiring.
The minimum wire size is 18 AWG and the maximum wire size is 0 AWG, accommodating a wide range of wire gauges.
This terminal block is manufactured in Germany, ensuring high quality and compliance with international standards.
