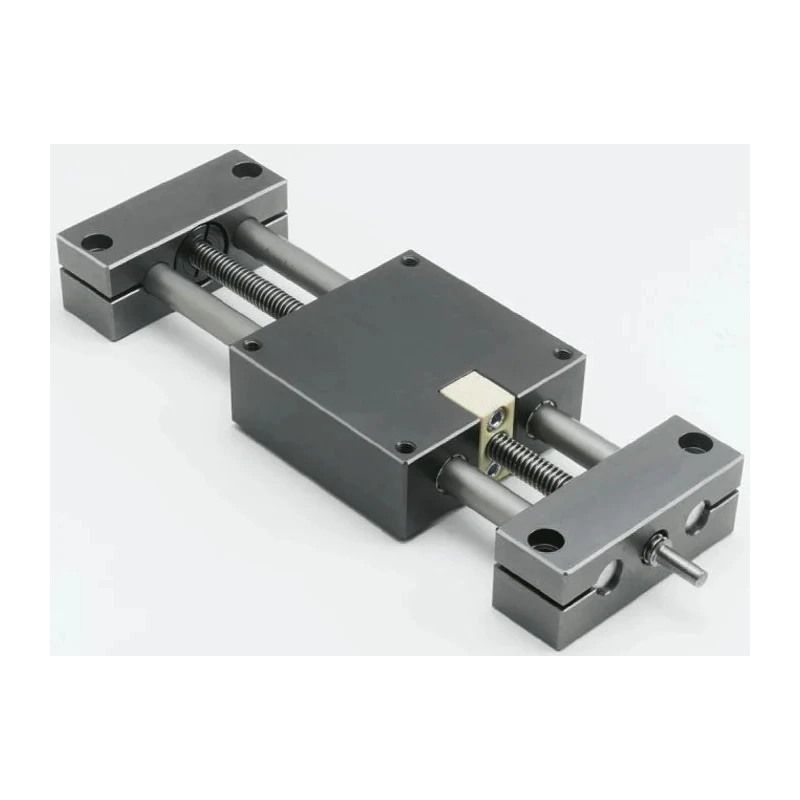

Igus Positioning Table with 500mm Stroke Length, 2.8 kN Static Load Rating, DryLin SHT Series SHT-12-AWM-500

The Igus SHT-12-AWM-500 positioning table is a precision linear motion system designed to provide accurate translational positioning in industrial environments. Featuring a robust 2.8 kN static load capacity and a 500mm stroke length, this unit enables stable, controlled linear travel for a wide range of automation and assembly tasks.

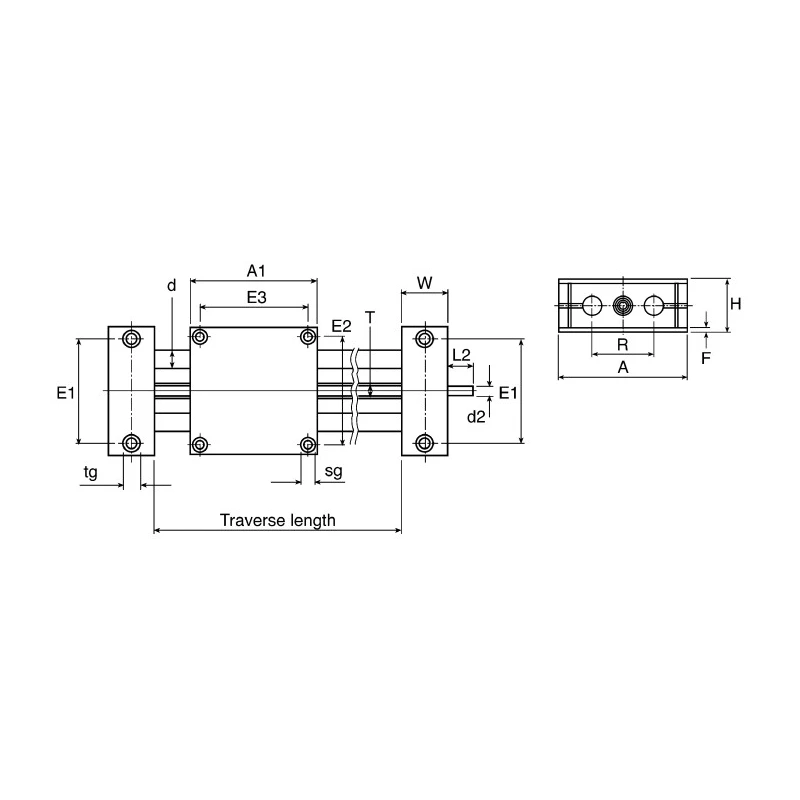

The guided carriage measures 85mm in both length and width, offering a compact footprint that supports stable mounting and load distribution. With an overall length of 645mm, this positioning table facilitates straightforward installation and integration into machine layouts. Constructed as part of the DryLin SHT series, it combines low friction sliding technology with reliable load-bearing capability without the need for frequent maintenance.

Typical applications include component positioning in automated test rigs, repeatable alignment operations in mechanical workshops, and various industrial automation scenarios where precision and durability are critical. The static load rating assures users that the system can sustain heavy stationary loads without deformation, ensuring longevity and performance.

500mm stroke length enables extended linear travel for varied applications. 2.8 kN static load rating supports substantial stationary payloads. Compact carriage dimensions of 85mm length and width for flexible mounting. Overall length of 645mm facilitates easy integration into industrial setups.

Constructed with DryLin SHT technology for low-maintenance operation. Ideal for automated component positioning and alignment tasks. Manufactured in Germany to stringent quality standards. Stable support for mounted components with 85mm carriage length and width.

This positioning table is a reliable choice for diverse industrial, manufacturing, and laboratory applications requiring precise, repeatable linear movements. Explore the extensive range of Igus positioning solutions on EnvMart for unmatched quality and performance.
