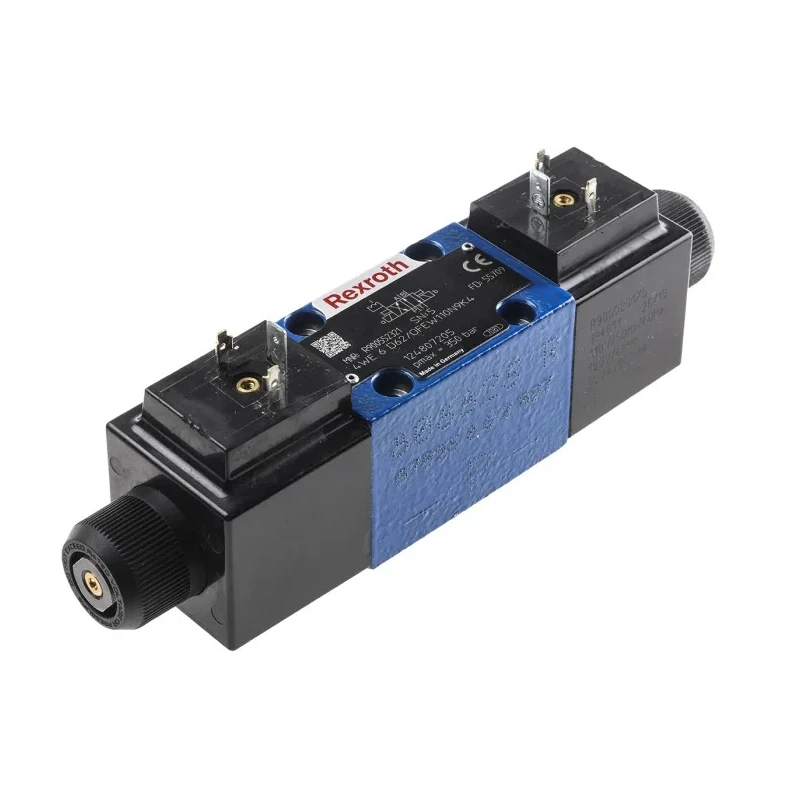

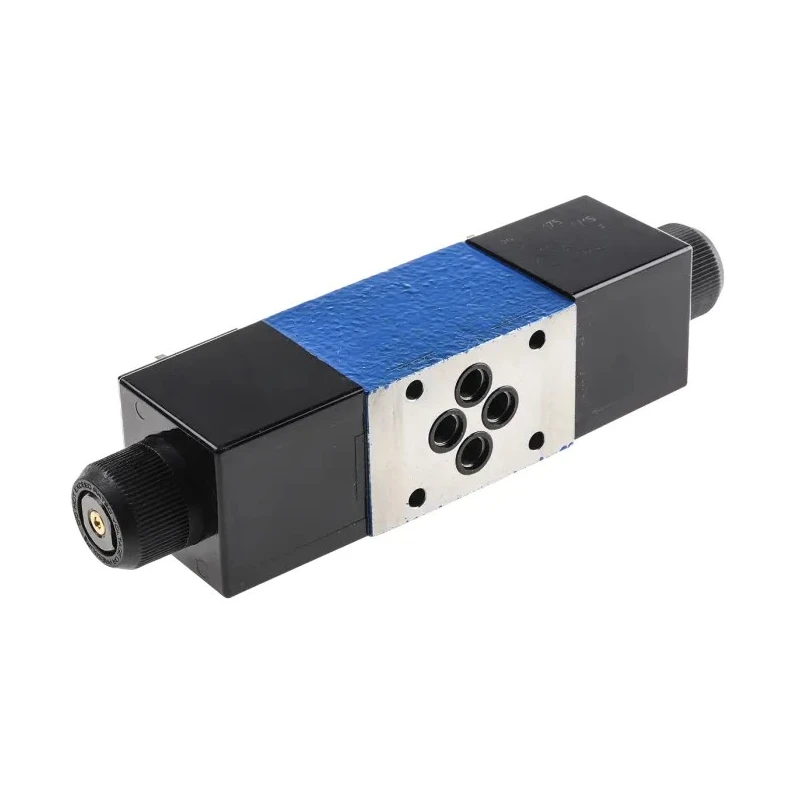

Bosch Rexroth Hydraulic Directional Spool Valve, DIN Mount, Type D, Double Solenoid, 230V, 60L/min Flow, 350bar R900552321

Free Delivery in India | Lowest Global Shipping Charges

Bosch Rexroth Hydraulic Directional Spool Valve, DIN Mount, Type D, Double Solenoid, 230V, 60L/min Flow, 350bar R900552321

Name: Bosch Rexroth Hydraulic Directional Spool Valve, DIN Mount, Type D, Double Solenoid, 230V, 60L/min Flow, 350bar R900552321
Brand: Bosch Rexroth
SKU: 310445
Price: 737.63 USD
Availability: InStock



Category Hydraulic Equipment Brand Bosch Rexroth Condition New

Specifications

Country of Origin	Germany
Voltage	230V
Brand	Bosch Rexroth
Model	R900552321
Series	6x
Number Of Ports	4
Maximum Operating Temperature	50°C
Number of Positions	2
Seal Material	Fluorelastomer, Nitrile Rubber (NBR)
Minimum Operating Temperature	-20°C
Actuation Type	Solenoid
Supply Voltage	110V ac
Maximum Flow Rate	60L/min

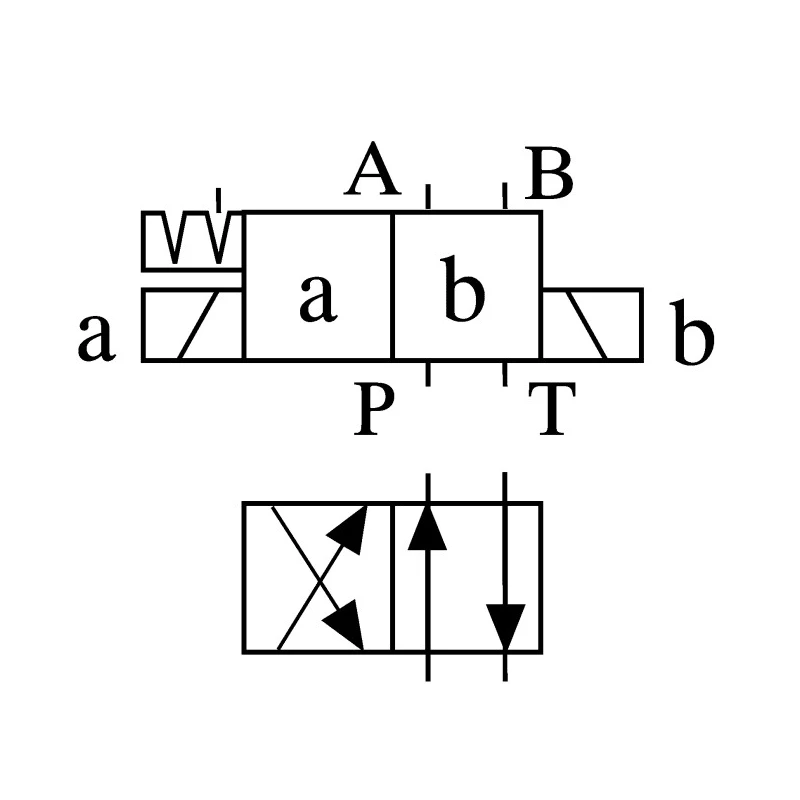

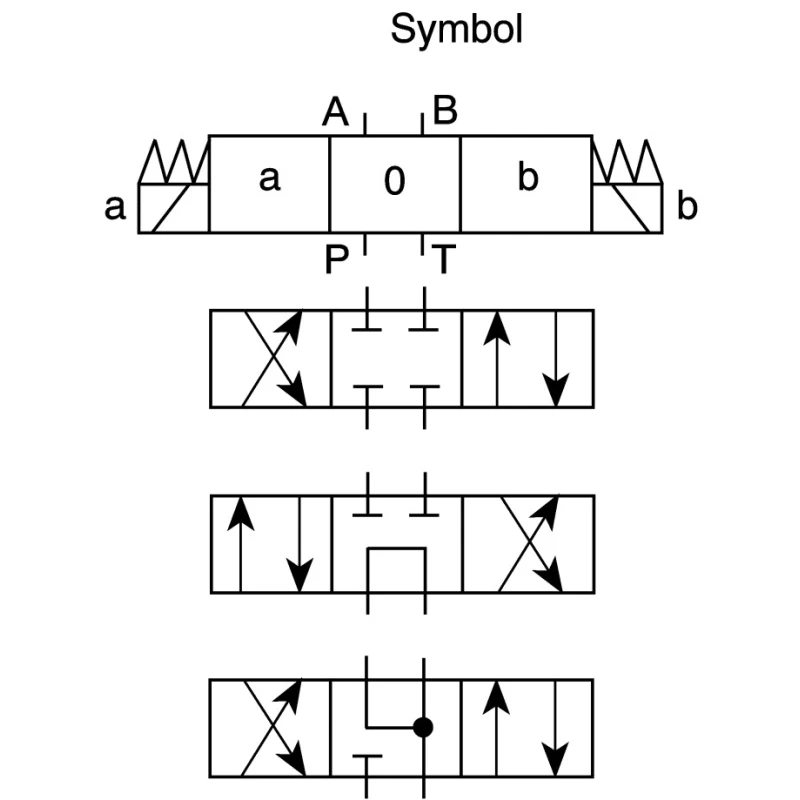

Spool Type	Type D
Standards/Approvals	NFPA T3.5.1 R2-2002 D03, DIN 24340 form A, DIN EN 175201-804, DIN EN 175301-803, DIN EN 60529, EN 60898-1, EN 60947-2, EN ISO 13849, IEC 60898, IEC 60947-2, ISO 12922, ISO 13732-1, ISO 4401-03-02-0-05, ISO 4406, ISO 4413, ISO 6403, VDMA 24568
Mount Pattern	DIN
Solenoid Type	Double
Valve Maximum Operating Pressure	350bar

Key Features

Operates at a supply voltage of 230V with double solenoid actuation.
Features 2 positions and 4 ports for versatile hydraulic circuit applications.
Maximum flow rate up to 60 liters per minute with pressure tolerance of 350 bar.
Durable seals made of fluorelastomer and nitrile rubber ensure extended service life.
Suitable for industrial, manufacturing, and hydraulic machinery use in harsh environments.
Includes a mounting pattern compliant with DIN standards for easy installation.
Operates reliably within a temperature range of -20°C to 50°C.
Conforms to multiple international standards including NFPA, DIN, ISO, IEC, and VDMA.

Product Description

Bosch Rexroth R900552321 is a solenoid-operated hydraulic directional spool valve designed for precise control of hydraulic flow in industrial applications. This valve features a DIN mount pattern and Type D spool for compatibility with standard hydraulic systems, ensuring easy installation and replacement.

Operating at 230 volts with a double solenoid actuation, it supports a maximum flow rate of 60 liters per minute and can withstand operating pressures up to 350 bar. The seals are crafted from fluorelastomer and nitrile rubber (NBR), providing robust sealing performance and resistance to hydraulic fluids.

Designed for a minimum operating temperature of -20°C and a maximum of 50°C, the valve operates efficiently in diverse industrial environments. Standards compliance includes NFPA T3.5.1 R2-2002 D03, DIN 24340 form A, and several DIN EN, ISO, IEC, and VDMA certifications, reflecting its quality and reliability.

This valve is commonly used in hydraulic machinery, manufacturing processes, fluid power systems, and mechanical engineering applications. Operates at a supply voltage of 230V with double solenoid actuation. 2 positions and 4 ports configuration ensure versatile control.

Maximum flow rate of 60L/min and pressure rating up to 350 bar. Durable fluorelastomer and nitrile rubber seals. DIN mount compliant for easy fitting and replacement. Temperature range from -20°C to 50°C for varied industrial use.

Emergency manual operation capability enhances safety. Replacement solenoid coils available separately. Country of Origin: Germany. Explore a wide range of hydraulic directional control valves and fluid power products at EnvMart.
