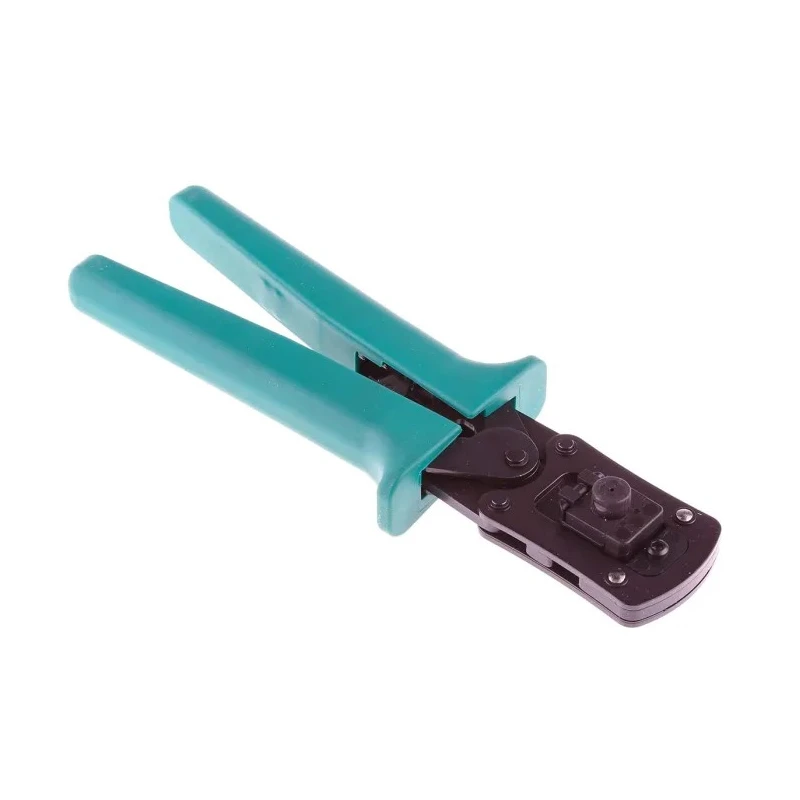

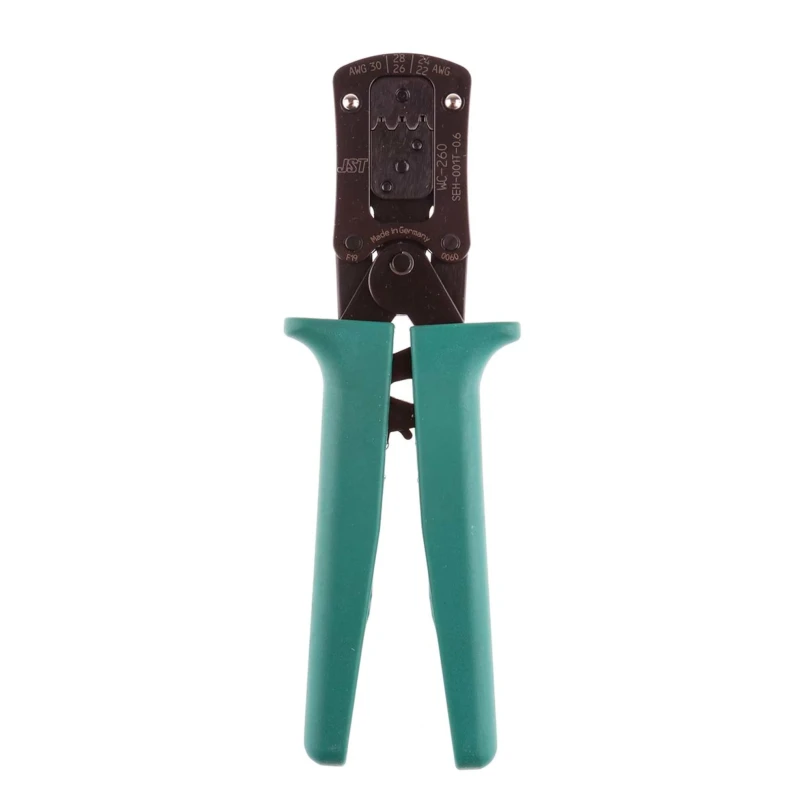

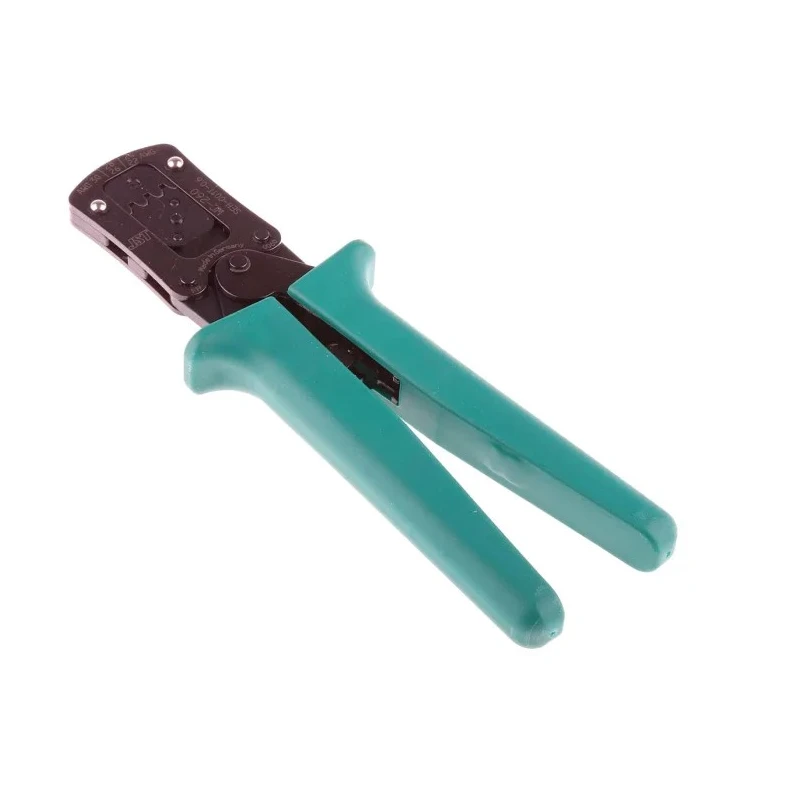

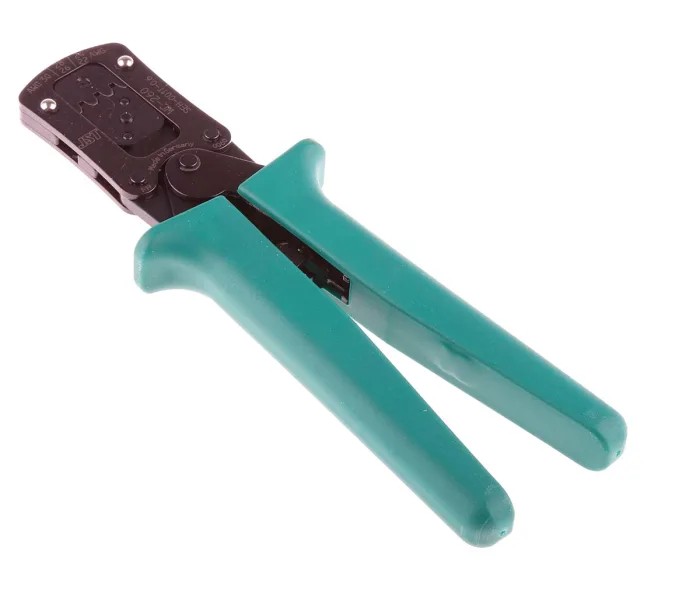

JST WC Crimp Tool Hand Crimping Tool for SEH Contacts 193mm Length CS 10-WC260

JST CS 10-WC260 WC series hand crimp tool is a high-quality tool designed specifically for SEH crimp terminals, measuring 193mm in overall length. This tool is ideal for industrial and electrical applications requiring reliable and precise crimps to ensure durable electrical and insulation connections. The tool is constructed with precision ground dies that support a range of wire sizes from 24 to 22 AWG, 28 to 26 AWG, and 30 AWG, delivering consistent and gas-tight crimps.

The ergonomic soft-grip handles reduce operator fatigue during repetitive tasks. The integrated ratchet mechanism guarantees a proper crimp cycle; the tool cannot be opened until the crimp is fully completed, preventing partial crimps that could compromise performance. The ratchet release lever facilitates easy tool operation in cases of jamming or terminal misplacement.

The Crimp Tool includes a flap style locator and wire stop that accurately position the terminal and wire for precise crimps. This ensures reliable electrical conductivity and strain relief, crucial in applications subject to vibration and tension. The adjustable load feature allows fine-tuning of the crimping force to match specific terminal and wire requirements.

Applications include assembly and maintenance in electrical, electronics manufacturing, automation, industrial wiring, and laboratory environments. The tool supports quality assurance processes by ensuring each crimp meets high standards for electrical and mechanical integrity.

Durable and ergonomically designed for comfortable handling. Features a ratchet mechanism that ensures a full crimping cycle. Includes precision ground dies for wire sizes 24 to 22 AWG, 28 to 26 AWG, and 30 AWG. Equipped with a locator and wire stop for accurate terminal positioning.

Ratchet release lever allows easy opening in case of jamming or misplacement. Load adjustment enables users to set pre-set crimping force as required. Provides gas-tight crimps to prevent electrical corrosion and resistance.

Set contains 1 Pc JST WC-260 Hand Crimping Tool for SEH Contacts. Explore our Industrial Tools & Equipment category for related high-quality crimping equipment and hand tools.
