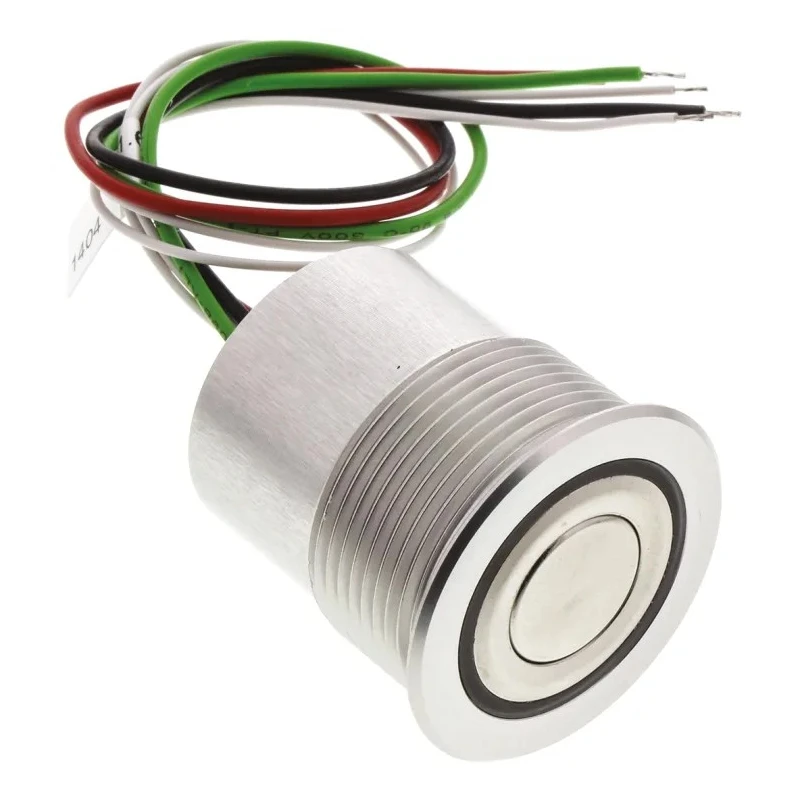

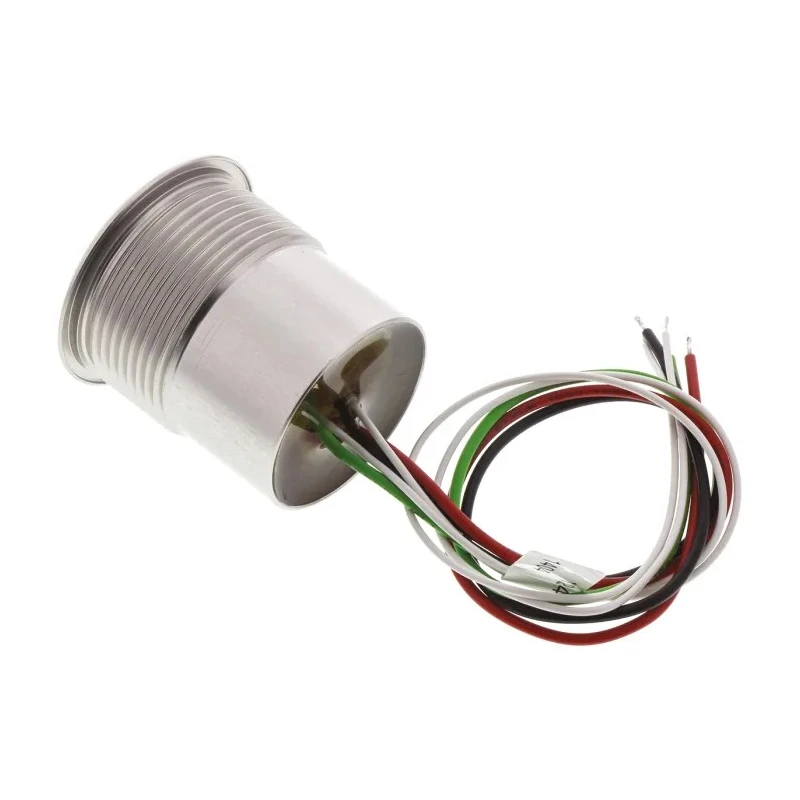

Schurter MCS 30 Series Illuminated Momentary Panel Push Button Switch 22.2 mm Cutout, SPST, Red and Green LED, IP40 1241.6403

Name: Schurter MCS 30 Series Illuminated Momentary Panel Push Button Switch 22.2 mm Cutout, SPST, Red and Green LED, IP40 1241.6403
Brand: Schurter
SKU: 394087
Price: 6340.37 INR
Availability: InStock



Category Push Button Switches Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
IP Rating	IP40, IP65, IP67
Mount Type	Panel
Series	MCS 30
Maximum Operating Temperature	60°C
Contact Configuration	SPST
Contact Rating	125mA / 48Vdc (SPNO)
Minimum Operating Temperature	-20°C
Panel Cutout Size	22.2 mm
Terminal type	Flying Lead
Standards/Approvals	RoHS
LED Colour	Red, Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	48V dc
Actuator Style	Flat
Switch Contact Current	125mA
Legend	Without Lettering, Optional Marking

Key Features

Designed for momentary operation with reliable tactile feedback.
Features a silver flat actuator and IP40 protection rating.
Supports 48V DC contact voltage at 125 mA switch current.
Equipped with SPST contact configuration and flying lead terminals.
Illuminated with red and green LED indicators operating at 24V DC.
Operating temperature range from -20°C to 60°C ensures durability in various environments.
Complies with RoHS standards for environmental safety.
Anti-vandal design suitable for rugged industrial applications.

Product Description

Schurter 1241.6403 MCS 30 Series Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting requiring a 22.2 mm cutout. It features a flat silver actuator with red and green integrated LEDs, providing clear visual indication in industrial control systems.

This push button offers an SPST (Single Pole Single Throw) contact configuration and is rated for up to 125 mA at 48 V DC, suitable for low-voltage electrical control applications. The enclosed design features an IP40 protection rating, with extended variations including IP65 and IP67 for enhanced environmental sealing, making it adaptable for challenging settings.

The switch is constructed to provide a long lifetime and a reliable tactile feel, essential for demanding industrial and automation use cases. Operating within a temperature span of -20°C to 60°C, it is robust for HVAC, manufacturing, electrical panels, and automation installations.

The anti-vandal mechanical ruggedised design ensures durability and resistance to mechanical abuse. Included are silver contacts for consistent conductivity and LED illumination at 24 V DC, providing bright visual feedback with red and green options.

This component is RoHS compliant and fits easily into panels with the supplied nut and sealing ring for quick, sealed installation. Optional markings are available without lettering, tailored to specific industrial applications.

Designed for momentary operation with reliable tactile feedback. Features a silver flat actuator and IP40 protection rating. Supports 48V DC contact voltage at 125 mA switch current. Equipped with SPST contact configuration and flying lead terminals.

Illuminated with red and green LED indicators operating at 24V DC. Operating temperature range from -20°C to 60°C ensures durability in various environments. Complies with RoHS standards for environmental safety. Anti-vandal design suitable for rugged industrial applications.

This Schurter MCS 30 push button switch series is ideal for industrial, laboratory, automation, manufacturing, HVAC, and electrical panel control applications. Explore related Push Button Switches and electrical control components at EnvMart for your project needs.
