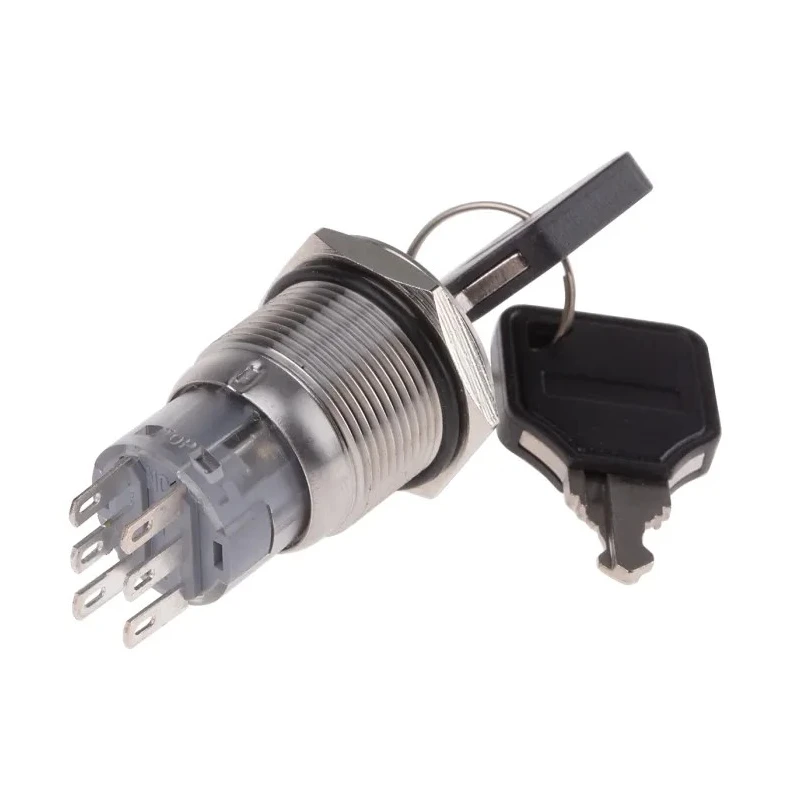

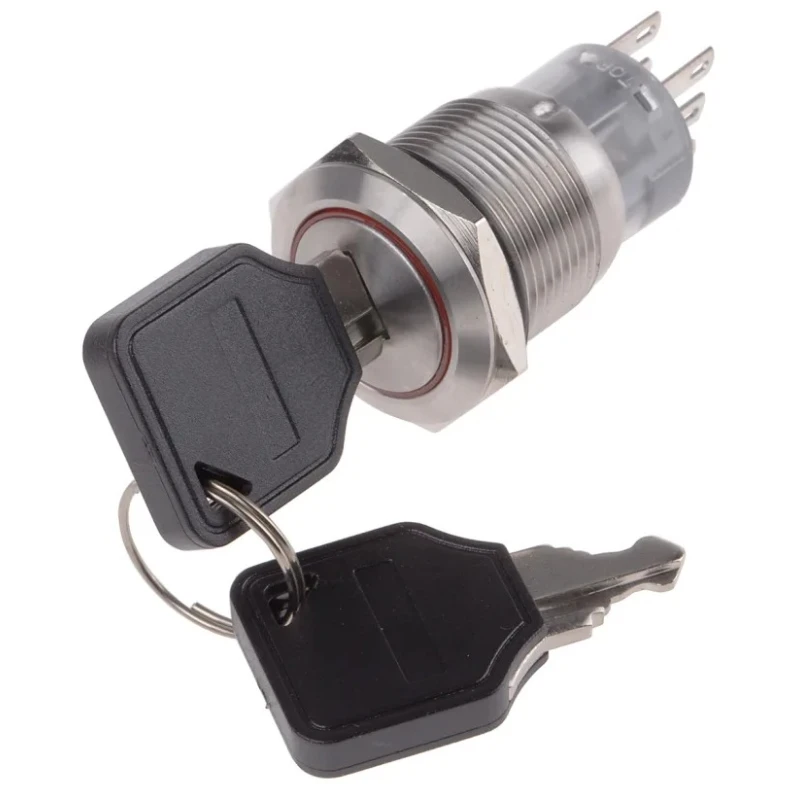

RS PRO Stainless Steel IP40 Key Switch, DPDT, 5A Contact Current, Momentary Operation, 2 Positions IP40 IP40

RS PRO IP40 Key Switch IP40 model is a robust electrical switch featuring DPDT contact configuration and a contact current rating of 5A, ideal for industrial and automation control applications.

The switch features a momentary operation type with 2 distinct positions and a 90° key index angle, designed for precise switching functions. Its housing and button are constructed from varnished stainless steel, ensuring durability and corrosion resistance.

This key switch supports AC contact voltage up to 250V and DC contact voltage of 30V, incorporating silver contacts for reliable connectivity and minimum contact resistance. The front panel protection rating is IP40, providing moderate protection against solid objects and limited dust ingress, suitable for indoor environments.

The mechanical life expectancy of this switch is rated to 50000 operations, assuring long-term reliability in frequent usage scenarios. The panel cut-out diameter is 19.2 mm enabling straightforward installation in control panels.

Designed with an anti-vandal key lock and a ring for location or power indication, the switch further supports operational safety, with keys removability in all positions enhancing control and security in industrial environments.

The unit is suitable for operating temperatures ranging from -20°C to 55°C, making it adaptable for various industrial, electrical, and automation applications including manufacturing equipment, control panels, and machinery operation.

Constructed from durable varnished stainless steel for robustness and longevity. Momentary switch operation with 2 positions and 90° key index angle for precise control. Suitable for contact voltages of 250V AC and 30V DC with silver contact material.

Front panel protection rating of IP40 and mechanical life expectancy of 50000 operations. Panel cut-out diameter of 19.2 mm for easy mounting. Operating temperature range from -20°C to 55°C supports versatile industrial environments.

Anti-vandal design with a ring for location or power indication enhances operational safety. Keys can be removed in all positions offering additional control and security.

Choose RS PRO Key Switches for industrial automation, electrical controls, HVAC systems, and manufacturing machinery where reliability and secure operation are critical. Explore more industrial electrical equipment and switch solutions on EnvMart.
