Schmersal General Purpose Momentary Foot Switch SPST Thermoplastic 2.5A Contact Current 230 V AC 103003078

Free Delivery in India | Lowest Global Shipping Charges

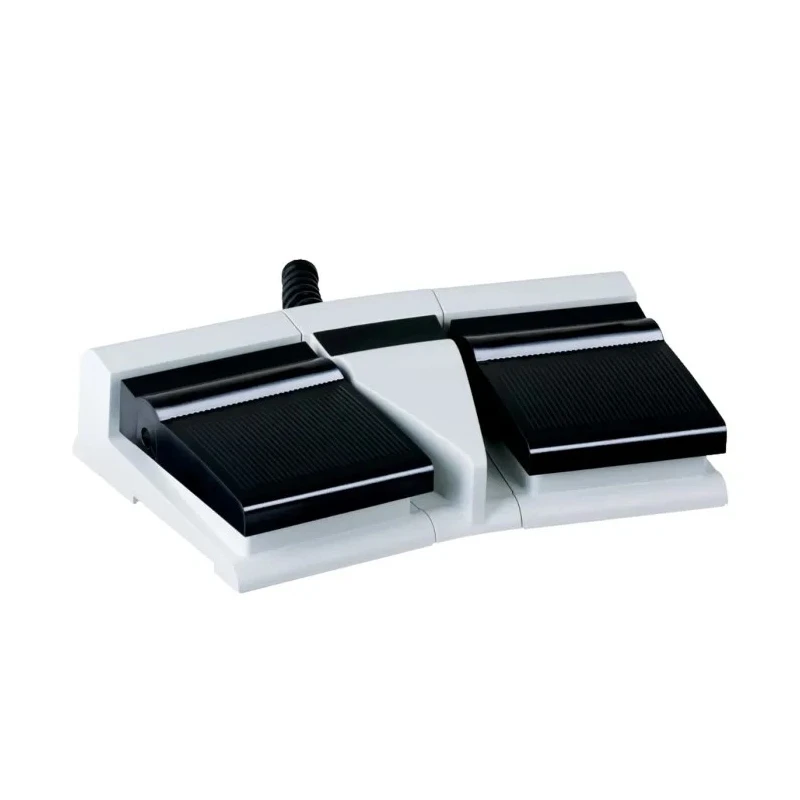

Schmersal General Purpose Momentary Foot Switch SPST Thermoplastic 2.5A Contact Current 230 V AC 103003078

Name: Schmersal General Purpose Momentary Foot Switch SPST Thermoplastic 2.5A Contact Current 230 V AC 103003078
Brand: SCHMERSAL
SKU: 278650
Price: 26010.43 INR
Availability: InStock



Category Foot Switch Brand SCHMERSAL Condition New

Specifications

Country of Origin	Brazil
Brand	Schmersal
Colour	Black
Height	49mm
Length	215mm
IP Rating	IP67
Width	138mm
Housing Material	Thermoplastic
Protection Class	IP 67 to IEC/EN 60529
Standards	IEC/EN 60947-5-1
Series	NKF2-10/10Z-B-2M
Contact Configuration	SPST
Terminal type	Pre-Wired
Standards/Approvals	IEC/EN
Switch Operation	Momentary
Contact DC Voltage	24V dc
Switch Contact Current	2.5A
Mechanical Life	1000000Operations
Contact AC Voltage	230V ac
Switch Environment	General Purpose
Mechanical life, minimum	1,000,000 Operations

Key Features

Designed with a thermoplastic housing and ABS thermoplastic pedal for durability.
Operates with a contact current of 2.5A and an AC voltage rating of 230 V.
Features an IP67 rating providing protection against dust and water ingress.
Includes a 2m pre-wired cable for convenient installation.
Complies with IEC/EN 60947-5-1 standards ensuring international quality and safety.
Single pedal type with snap switch element switching principle for responsive operation.
Mechanical life rated at a minimum of 1,000,000 operations for long-term reliability.
Compact dimensions of 215mm length, 138mm width, and 49mm height optimize space usage.

Product Description

Schmersal 103003078 general purpose momentary foot switch is engineered for reliable industrial control applications. Designed with a durable thermoplastic housing and an ABS thermoplastic pedal, this foot switch provides resistance to mechanical stress and environmental factors.

Operating on a snap switch element switching principle, the foot switch features a SPST contact configuration with a rated contact current of 2.5A and is suitable for AC voltage of 230 V as well as DC voltage of 24 V, making it versatile across various control circuits.

With a mechanical life expectancy of at least 1,000,000 operations, it ensures extended service without frequent maintenance or replacement. The unit includes a 2 meter pre-wired cable facilitating straightforward installation in control panels or machinery.

The IP67 protection class rating guarantees resistance against dust ingress and protected against temporary immersion in water, adding reliability in harsh industrial environments. It is compliant with IEC/EN 60947-5-1 and IEC/EN 60529 standards to ensure international safety and quality adherence.

Its dimensions - 215mm length, 138mm width, and 49mm height - allow it to fit within compact spaces without compromising ease of use. The black color and no guard cover design support general purpose foot control functionality.

Designed with a thermoplastic housing and ABS thermoplastic pedal for durability. SPST contact with momentary switch operation. Contact ratings include 2.5A current and 230V AC voltage. Rated IP67 protection against dust and water ingress.

Pre-wired 2 meter cable for simple installation. Mechanical life of one million operations ensures long-term use. Adheres to IEC/EN 60947-5-1 and IEC/EN 60529 standards. Compact dimensions tailor to space-constrained setups.

Suitable for general purpose industrial switching requirements.

This Foot Switch is ideal for electrical, automation, and manufacturing sectors requiring dependable and robust foot-operated control devices. Its design balances performance with long-term durability for demanding environments.
