| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN33NJ00D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 33nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 260mA |
| Pin Count | 2 |
| Maximum DC Resistance | 630mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.2GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

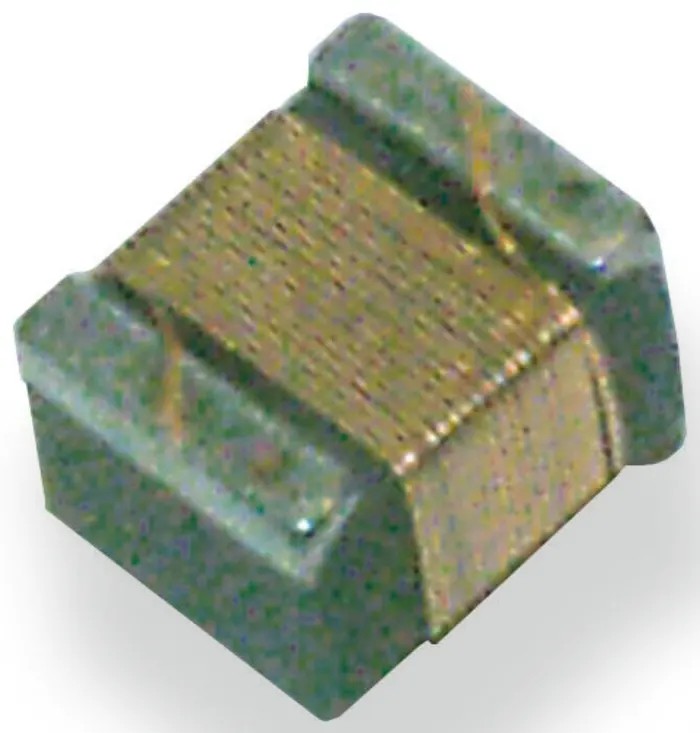

Murata LQW15AN33NJ00D is a high-quality 0402 unshielded wirewound surface mount inductor featuring a ferrite core designed for high frequency communication circuits.
It provides an inductance of 33 nanohenries with a tolerance of ±5%, suitable for use in VHF and UHF frequency ranges, including wireless telecommunications such as Bluetooth, GSM, and WLAN.
The compact 0402 package measures approximately 1 mm in length and 0.5 mm in both height and depth, supporting low profile designs and high-density PCB layouts. This inductor supports a maximum DC current rating of 260 mA and operates efficiently with a maximum DC resistance of 630 milliohms, ensuring minimal power loss.
With a high self-resonant frequency of 3.2 GHz and a minimum quality factor of 25, the component is optimized to deliver excellent performance in demanding RF applications. Constructed using wirewound technology with a molded ferrite core, it maximizes stability and reliability under a wide operating temperature range from -55°C to 125°C.
The component is RoHS compliant, uses solder termination style, and comes packaged in paper tape to facilitate automated PCB assembly and manufacturing efficiency.
This surface mount inductor is ideal for use in industrial, communication, and electronic manufacturing environments, offering reliable inductive properties in compact form factor applications.
Compact 0402 package suitable for high frequency applications. Ferrite core ensures stable inductance and low losses. Rated for a maximum DC current of 260 mA. Operates reliably from -55°C to 125°C. Maximum DC resistance of 630 milliohm for efficient performance.
High self-resonant frequency of 3.2 GHz enhances signal integrity. Wirewound construction improves Q factor and reduces noise. RoHS compliant and lead-free solder termination style. Paper tape packaging enables automated placement in assembly lines.
Explore more quality Surface Mount Inductors and related components at EnvMart to support your advanced electronic design and manufacturing needs.
