| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN43NJ00D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 43nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 250mA |
| Pin Count | 2 |
| Maximum DC Resistance | 700mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

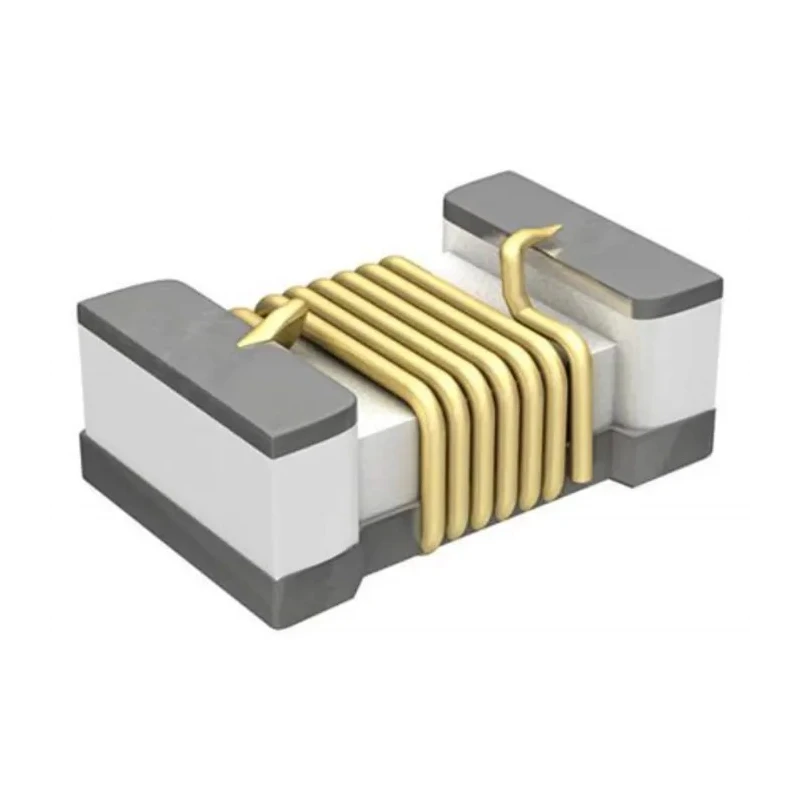

Murata LQW15AN43NJ00D is a 0402 size unshielded wirewound surface mount inductor featuring a ferrite core. This component delivers a nominal inductance of 43 nH with a tolerance of ±5% making it ideal for high frequency circuits. It supports a maximum DC current of 250 mA and is designed to perform reliably at operating temperatures ranging from -55°C to 125°C.

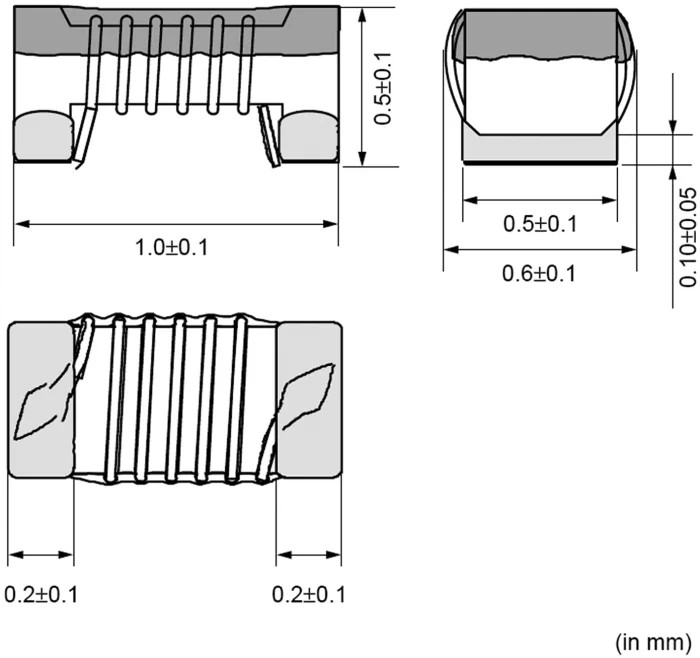

This inductor is constructed with high-quality wirewound technology to ensure low DC resistance of 700 mΩ which reduces power loss in circuit designs. The termination style is solder, facilitating seamless integration in PCB manufacturing. With a height and depth both measuring 0.5 mm, its compact 0402 package suits densely packed surface mount assemblies.
The device boasts a maximum self-resonant frequency of 3 GHz and a minimum quality factor of 25, attributes critical for applications requiring low noise and signal integrity. Packaging is provided on paper tape to assist modern automated assembly lines. The Murata LQW series is optimized for wireless telecommunications applications such as Bluetooth, GSM, and WLAN equipment where high resonance frequency and tight inductance tolerances are crucial.
Compact 0402 surface mount package. Wirewound ferrite core construction. Inductance: 43 nH ±5% tolerance. Max DC current: 250 mA. Max operating temperature: 125°C. Low DC resistance: 700 mΩ. Solder termination for reliable mounting.
Maximum self-resonant frequency: 3 GHz. Minimum quality factor: 25. Paper tape packaging for automated assembly.
This inductor is particularly suitable for industrial electronic manufacturing, wireless telecommunications, HVAC control systems, and other precision high-frequency circuit applications. Its small footprint and electrical characteristics enable engineers to design compact, efficient, and reliable devices. The Murata brand is synonymous with quality and innovation in electronic components.
