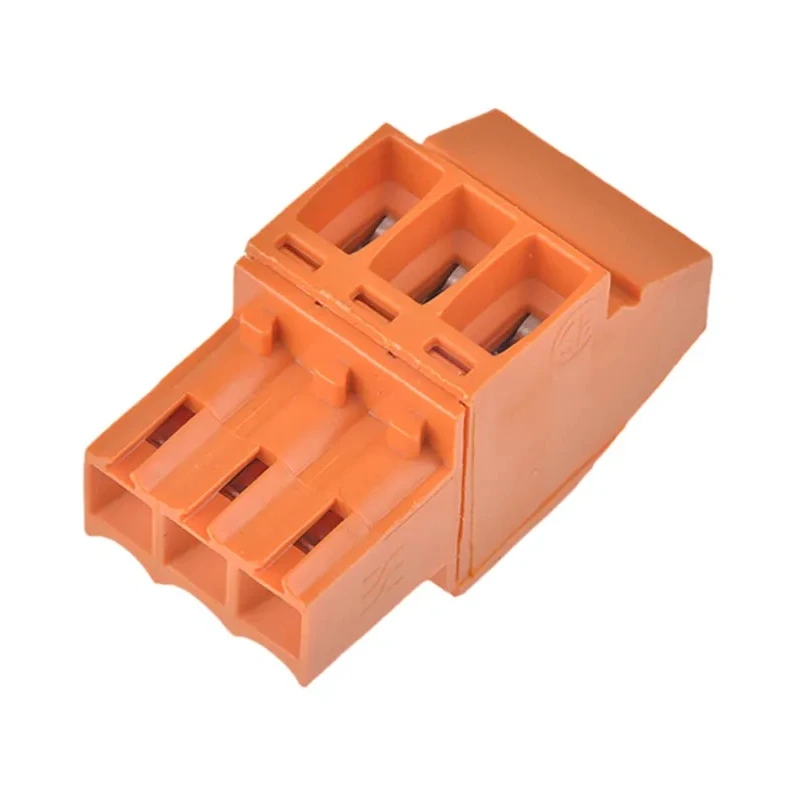

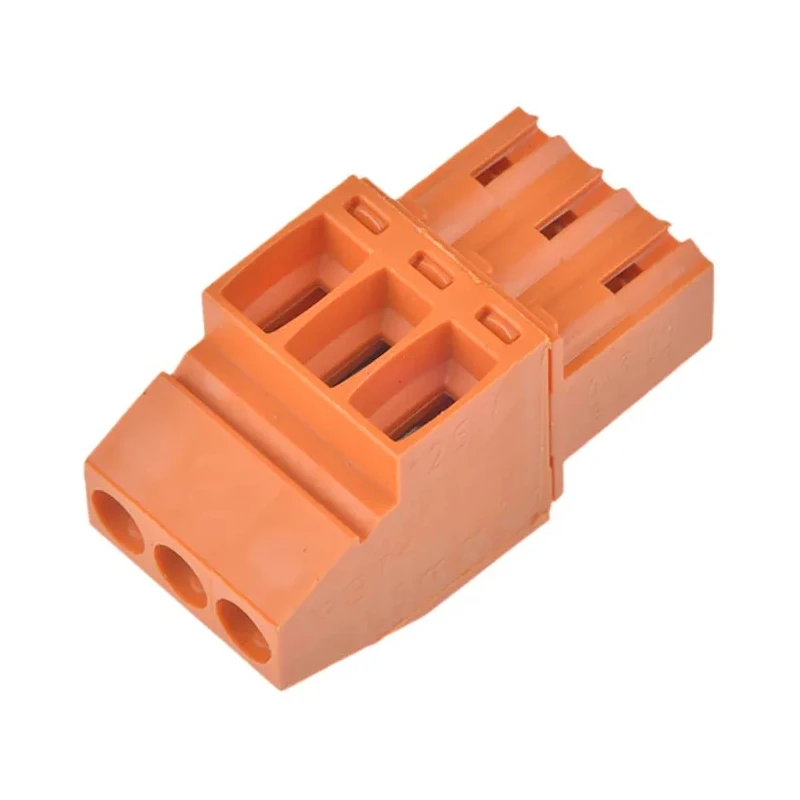

Weidmüller BL Series Pluggable Terminal Block 3-Contact, 3.5 mm Pitch, 1 Row, Screw Connection, 320V, 12A, Orange 1638560000
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Current | 12A |
| Depth | 12mm |
| Width | 22.45mm |
| Housing Material | Polybutylene Terephthalate |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Screw |
Key Features
- Supports a rated current of 12 amperes for dependable electrical performance.
- Features a single row and 3-contact design suitable for compact PCB applications.
- Constructed with orange polybutylene terephthalate housing for durability and insulation.
- Accommodates wire sizes from 0.08 mm² to 2.5 mm² with screw terminal connection.
- Designed with a 320 volt voltage rating suitable for various industrial electronic systems.
- Includes male connector gender and a 3.5 mm pitch for precise terminal spacing.
- Compact dimensions with a depth of 12 mm and width of 22.45 mm optimize PCB layout.
- Terminals feature screw-type wire connection providing secure and easy wiring installation.
Product Description
Weidmüller 1638560000 BL Series Pluggable Terminal Block is engineered for robust electrical wiring applications requiring dependable and space-efficient terminal solutions. This pluggable terminal block offers a 3-contact configuration arranged in a single row with a 3.5 mm pitch, ideal for PCB-mounted connections with vertical or horizontal headers.
The terminal block housing is constructed from polybutylene terephthalate, providing excellent mechanical strength and electrical insulation, while the terminals themselves use a hardened zinc-chromium plated clamping yoke screw system for reliable wire clamping and long-lasting durability.
Electrical characteristics include a rated current of 12A and voltage rating of 320V, supporting wire sizes from 0.08 mm² up to 2.5 mm² (28 AWG to 14 AWG), suitable for diverse industrial and commercial electronic assemblies.
The compact design features a 12 mm depth and 22.45 mm width, making it compatible with tight PCB layouts and automation systems. The connector is male gender, optimized for mating with corresponding female headers.
This terminal block is part of the Weidmüller BL Series, well-known for cost-effective and space-saving solutions in electronics and power connector applications, with easy wiring facilitated by the yoke clamp connection. Standard density connectors come with 90-degree cable mount screw options, enhancing installation versatility.
Rated current is 12 amperes ensuring reliable electrical performance. Housing material is durable polybutylene terephthalate for mechanical and electrical integrity. Screw termination method provides secure, easy-to-install wire connections.
Compact 3.5 mm pitch spacing ideal for modern PCB design. 3-contact, 1-row configuration for efficient signal or power distribution.
Applications include industrial automation, electronic control panels, power supply boards, and manufacturing equipment where reliable terminal block connections are essential. Manufactured in the Czech Republic, this product meets quality standards for European industrial components. Corresponding headers recommended are typically 171-499 for 180° connection and 171-578 for 90° connection to ensure compatibility and secure mating.
Explore more Pluggable Terminal Blocks and related connectors in our Electronics & Electricals category at EnvMart for your comprehensive industrial component needs.
