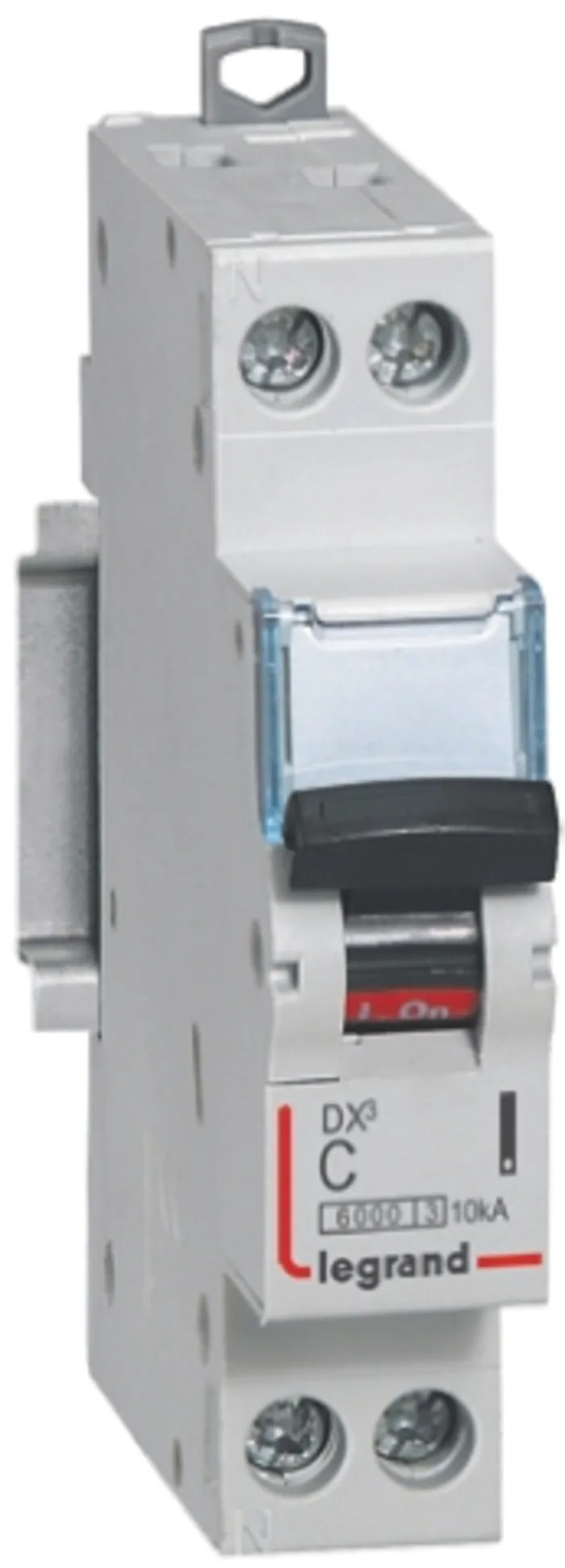

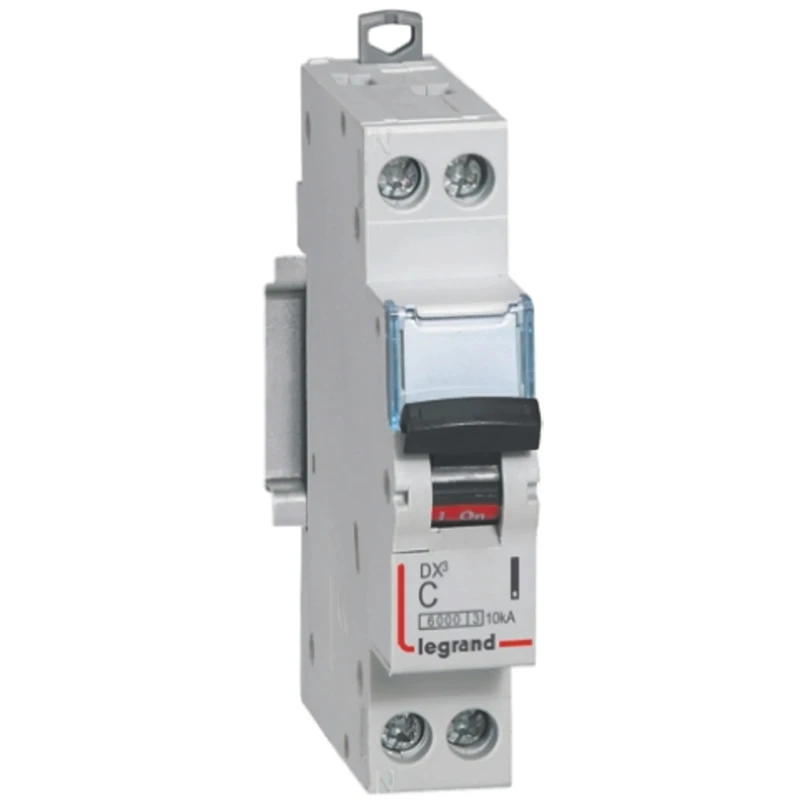

Legrand DX DX3 Miniature Circuit Breaker 1-Pole 20A Type C 230V AC 10 kA Breaking Capacity 4 077 01
Specifications
| Country of Origin | France |
|---|---|
| Range | DX |
| Brand | Legrand |
| Height | 94.8mm |
| Model | 4 077 01 |
| Connection Type | Screw / Screw or Auto / Screw |
| Depth | 77.6mm |
| IP Rating | IP20, IP40 |
| Width | 17.8mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | DX3 |
| Terminal type | Screw Cage Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | NF EN 60898-1, EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Magnetic |
| C type | Detect C components faults |
Key Features
- Single pole configuration ensures precise protection for individual circuits.
- Rated current of 20 amps suitable for various residential and commercial applications.
- Type C tripping characteristic ideal for general applications with moderate inrush currents.
- Operates at 230V AC voltage standard for many electrical systems.
- Breaking capacity of 10 kiloamperes ensures high fault current interruption capability.
- Mounts easily on DIN rail for convenient installation in standard enclosures.
- Screw cage terminal type provides secure wiring connections.
- Complies with NF EN 60898-1 and EN 60947-2 international standards.
Product Description
Legrand 4 077 01 Miniature Circuit Breaker DX3 series is a high-quality 1-pole device engineered for robust electrical circuit protection with a 20A rating and Type C magnetic tripping mechanism.
This breaker is designed for industrial, commercial, and residential electrical installations requiring reliable switching and fault interruption.
Its 10 kA breaking capacity provides safety against short circuits and overloads, complying with stringent European standards NF EN 60898-1 and EN 60947-2 to ensure performance and safety.
The device’s compact form factor with width 17.8mm, height 94.8mm, and depth 77.6mm allows efficient use in installations with limited space. The screw cage terminal system guarantees a secure and stable electrical connection, minimizing installation errors.
The product features an IP20 and IP40 rating suitable for indoor installation environments and provides protection according to international norms. Single pole breaker for individual circuit protection. 20A current rating for standard load circuits.
Type C tripping provides moderate surge current tolerance. 230V AC rated voltage for common electrical supplies. Robust 10 kA breaking capacity ensures safe interruption. DIN rail mounting compatibility for flexible installation.
Screw cage terminals for reliable wiring. Compliant with NF EN 60898-1, EN 60947-2 standards. Compact dimensions optimize electrical panel space.
This Miniature Circuit Breaker is suitable for use in electrical distribution in industrial plants, commercial buildings, residential homes, and infrastructure projects requiring high safety and dependable operation.
Reliable protection devices like this breaker help manage electrical load safely and reduce risks of equipment damage or fire. Explore the extensive range of Legrand electrical protection products at EnvMart and enhance your electrical system safety and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10 kA, which ensures high fault current interruption capability.
It has a rated current of 20A, making it suitable for various residential and commercial applications.
This unit features a Type C tripping characteristic, which is ideal for general applications with moderate inrush currents.
The rated voltage for this model is 230V AC, which is standard for many electrical systems.
It mounts easily on a DIN rail, allowing for convenient installation in standard enclosures.
The dimensions are 94.8mm in height, 17.8mm in width, and 77.6mm in depth.
This circuit breaker uses a screw cage terminal type, which provides secure wiring connections.
It has an IP20 and IP40 rating, making it suitable for indoor installation environments.
It complies with NF EN 60898-1 and EN 60947-2 international standards, ensuring performance and safety.
This model belongs to the DX3 series, which is designed for robust electrical circuit protection.
The connection type for this unit is screw, allowing for secure and stable electrical connections.
This miniature circuit breaker is manufactured in France.
