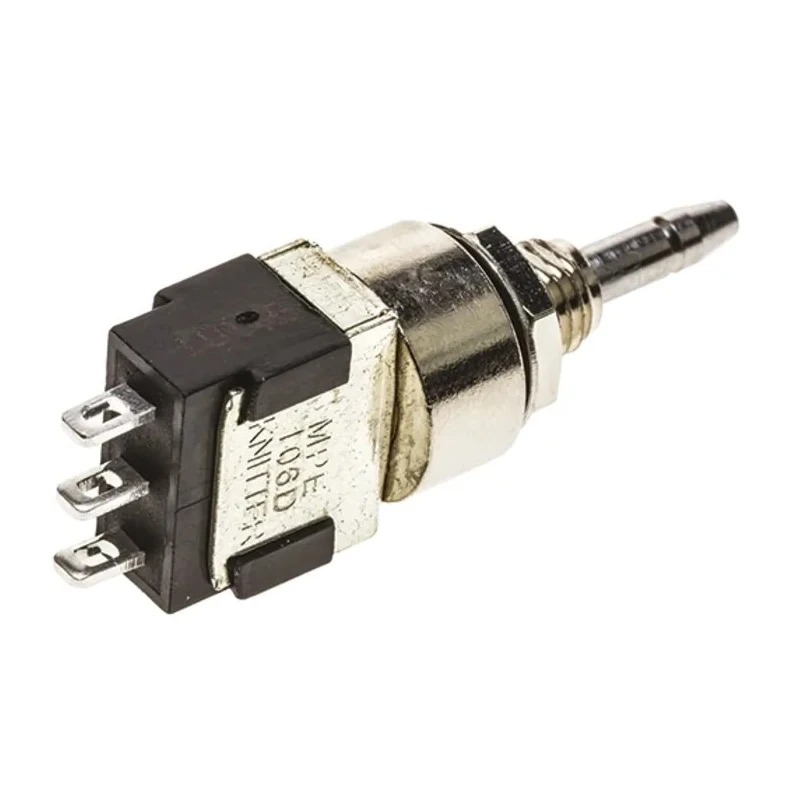

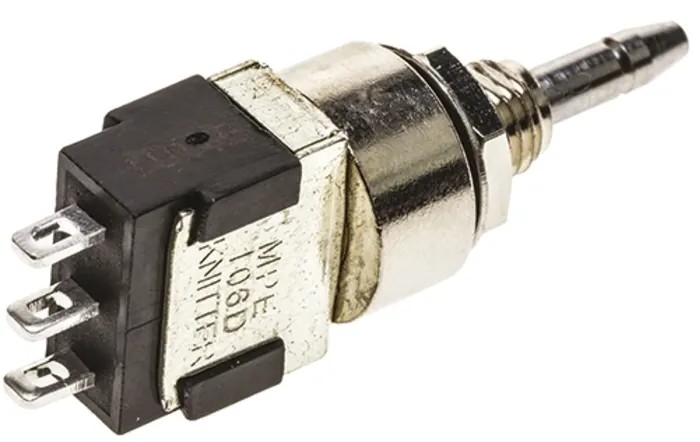

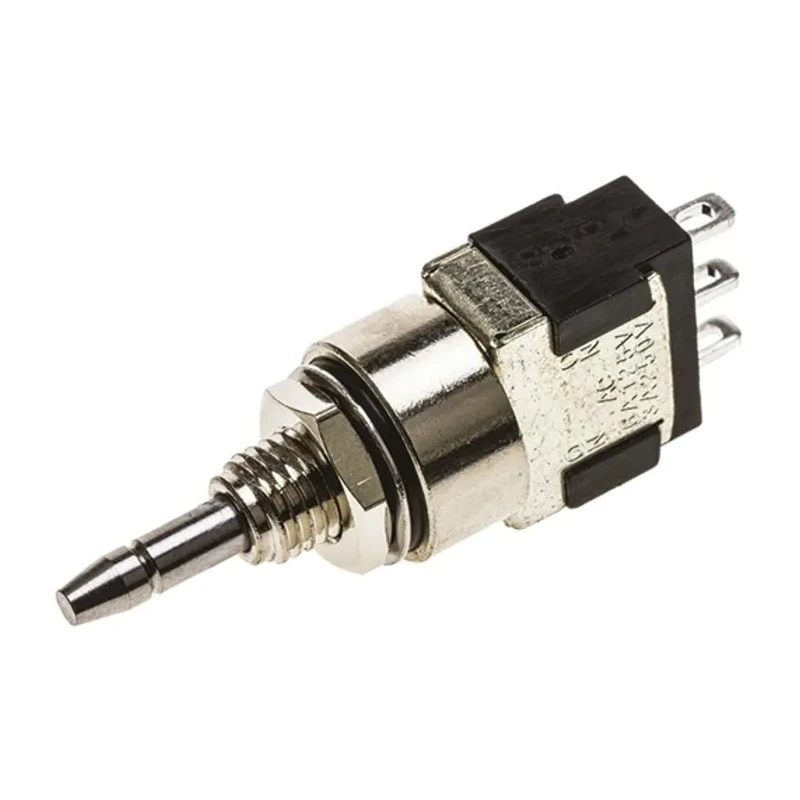

KNITTER-SWITCH MP Series Miniature Push Button Switch Latching Panel Mount 5.6 mm Cutout SPDT IP67 250 V ac MPE106D
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MPE106D |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MP |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -45°C |
| Panel Cutout Size | 5.6 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | Plunger |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator is black in color with a plunger style.
- Designed for panel mounting with solder terminals.
- Switch operation is latching and configured as On-Off SPDT contact.
- IP67 rated waterproof construction ensures reliable performance in harsh environments.
- Operating temperature ranges from -45°C to 120°C.
- Contact resistance is low and silver-plated contacts enhance durability.
- Switch contact current rating is 3 A at 250 V ac.
- Constructed with epoxy sealing for flux proofing and long service life.
Product Description
KNITTER-SWITCH MPE106D is a Miniature Push Button Switch from the MP series designed for latching panel-mounted switch applications. It features a compact 5.6 mm panel cutout and a single-pole double-throw (SPDT) contact configuration, with robust IP67 waterproof rating and a 250 V ac contact rating.
This switch has a black plunger actuator color and is equipped with solder terminals for secure electrical connections. It operates with a latching On-Off function, ideal for equipment requiring maintained switch states.
With an operating temperature range from -45°C up to 120°C, the MPE106D is suitable for harsh and industrial environments. The switch ensures low contact resistance of less than 10 mΩ and uses silver-plated contacts to enhance electrical conductivity and longevity.
It is epoxy sealed with flux proof construction, assuring durability and resistance to contaminants. The switch contact current rating is 3 A at 250 V ac, making it suitable for various electrical control and automation systems.
Mounting hardware is supplied with the switch; however, the actuator button is sold separately and can be ordered as a 15 mm diameter black button. This product is ideal for industrial, automation, laboratory, and commercial electrical control applications.
The actuator is black in color with a plunger style. Designed for panel mounting with solder terminals. Switch operation is latching and configured as On-Off SPDT contact. IP67 rated waterproof construction ensures reliable performance in harsh environments.
Operating temperature ranges from -45°C to 120°C. Contact resistance is low and silver-plated contacts enhance durability. Switch contact current rating is 3 A at 250 V ac. Constructed with epoxy sealing for flux proofing and long service life.
Suitable for industrial automation and equipment control applications. Includes mounting hardware; actuator buttons are sold separately. Explore more products in the Push Button Switches category at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for the MPE106D is 120°C, making it suitable for high-temperature environments.
It has an IP67 rating, ensuring it is waterproof and protected against dust, suitable for harsh environments.
The switch contact current rating is 3 A at 250 V ac, suitable for various electrical control applications.
It is equipped with solder terminals, providing secure electrical connections for installation.
The required panel cutout size for this model is 5.6 mm, designed for panel mounting.
The operating temperature range is from -45°C to 120°C, allowing it to function in extreme conditions.
It operates with a latching On-Off function, maintaining the switch state until manually changed.
The switch features silver-plated contacts and epoxy sealing, which enhance electrical conductivity and provide protection against contaminants.
It complies with CSA and UL standards, ensuring it meets safety and performance requirements.
The actuator style is a black plunger, designed for easy operation and a compact profile.
Yes, mounting hardware is supplied with the switch, although the actuator button is sold separately.
