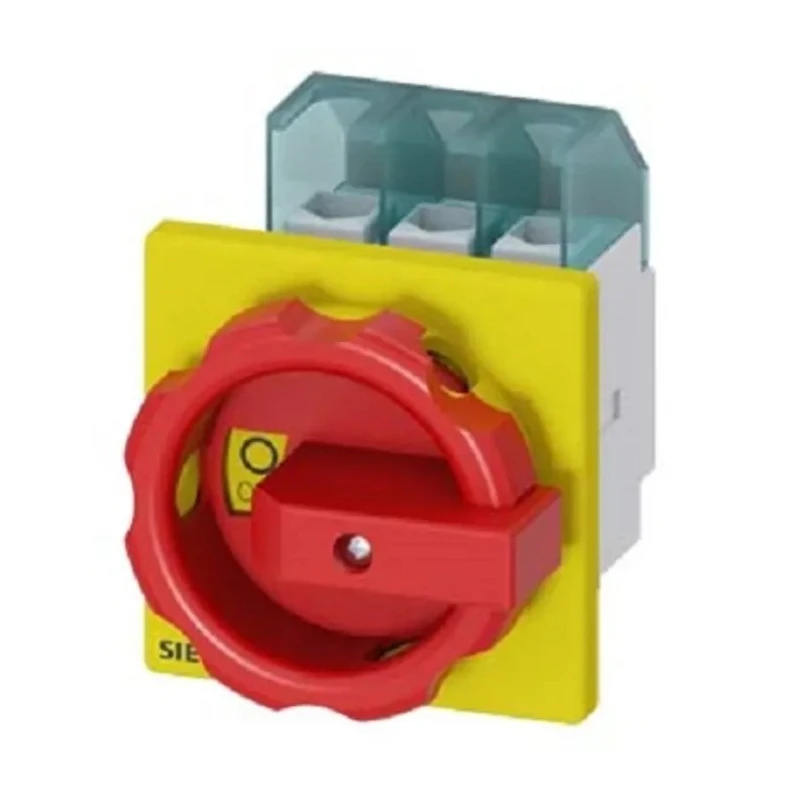

Siemens 3-Pole Panel Mount Isolator Switch, IP65, 32A, 12 kW, Red Handle, Screw Terminal,

Free Delivery in India | Lowest Global Shipping Charges

Siemens 3-Pole Panel Mount Isolator Switch, IP65, 32A, 12 kW, Red Handle, Screw Terminal,

Name: Siemens 3-Pole Panel Mount Isolator Switch, IP65, 32A, 12 kW, Red Handle, Screw Terminal,
Brand: Siemens
SKU: 392684
Price: 7362.55 INR
Availability: InStock



Category Isolator Switch Brand Siemens Condition New

Specifications

Country of Origin	Germany
Brand	Siemens
Length	67mm
Model	IP65
Depth	50mm
IP Rating	IP65
Width	67mm
Mount Type	Panel Mount
Series	3LD2203
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Switching Current	32A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Red
Number of Poles	3
Standards/Approvals	UKCA, UL, VDE, CCC, CE, CSA, EAC, LRS
Switching AC Voltage	690V ac
Switching Power	12kW
Siemens 3-Pole Panel Mount Isolator Switch -, IP65, 32A, 12 kWBrand	Siemens

Key Features

Rated for 32 amps switching current and 12 kW power handling.
Features a red handle for easy identification and screw-type terminals for secure connections.
Panel mount design allows flexible installation using screws or DIN rail.
Operates effectively between -25°C and 55°C ambient temperature.
Constructed to meet standards including UKCA, UL, VDE, CCC, CE, CSA, EAC, and LRS.
3-pole electrical configuration suitable for three-phase circuits.
IP65 dust-tight and protected against low-pressure water jets.
Non-fused design enables safe manual circuit isolation without fuse replacement.

Product Description

Siemens 3LD2203-0TK53 3-Pole Panel Mount Isolator Switch is designed for safe manual isolation of electrical circuits in industrial, electrical distribution, manufacturing, and commercial settings.

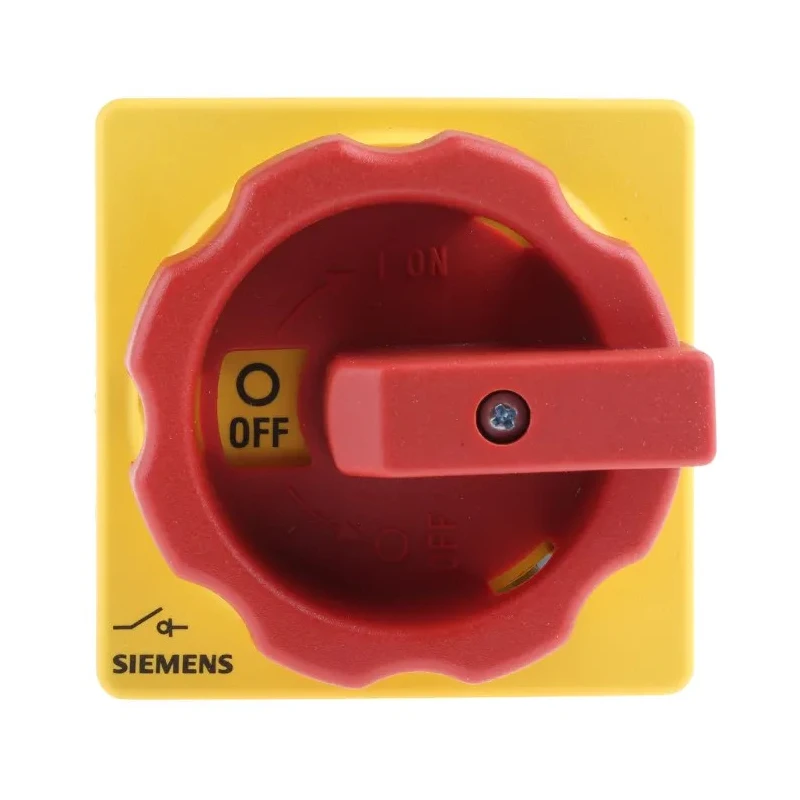

This non-fused isolator switch safely powers down circuits for maintenance using a rotary lever mechanism instead of a fuse, eliminating the need for fuse replacements and enabling quick resetting. Its bright red handle mounted on a yellow base provides high visibility during emergencies.

The device is engineered with an IP65 ingress protection rating, making it dust-tight and resistant to low-pressure water jets, suitable for both indoor and outdoor environments. The panel mount design supports installation by screwing directly onto panels or mounting on DIN rails, offering versatile equipment accommodation.

The isolator is rated for a switching current of 32A and a switching power of 12 kW, operating on three-phase electrical systems up to 690V AC. It performs reliably within a temperature range from -25°C to +55°C. The switch uses secure screw terminals and does not have auxiliary contacts or padlock compatibility.

Compliance with multiple international standards and approvals such as UKCA, UL, VDE, CCC, CE, CSA, EAC, and LRS ensures safety and performance in demanding industrial applications. The product is manufactured in Germany, reflecting Siemens’ commitment to quality and durability.

Rated switching current of 32A and switching power of 12 kW. Robust panel mount isolator with IP65 protection suitable for harsh environments. Red rotary lever handle allows easy manual operation for circuit isolation. Operates effectively from -25°C to 55°C ambient temperature.

Meets comprehensive international approvals including UKCA, UL, VDE, and CE. Three-pole configuration ideal for three-phase electrical systems. Secure screw terminals facilitate reliable electrical connections. Non-fused design offers quick resetting without fuse replacement.

Manufactured in Germany to Siemens quality standards. Select Siemens Isolator Switches from EnvMart for trusted industrial and electrical control solutions.
