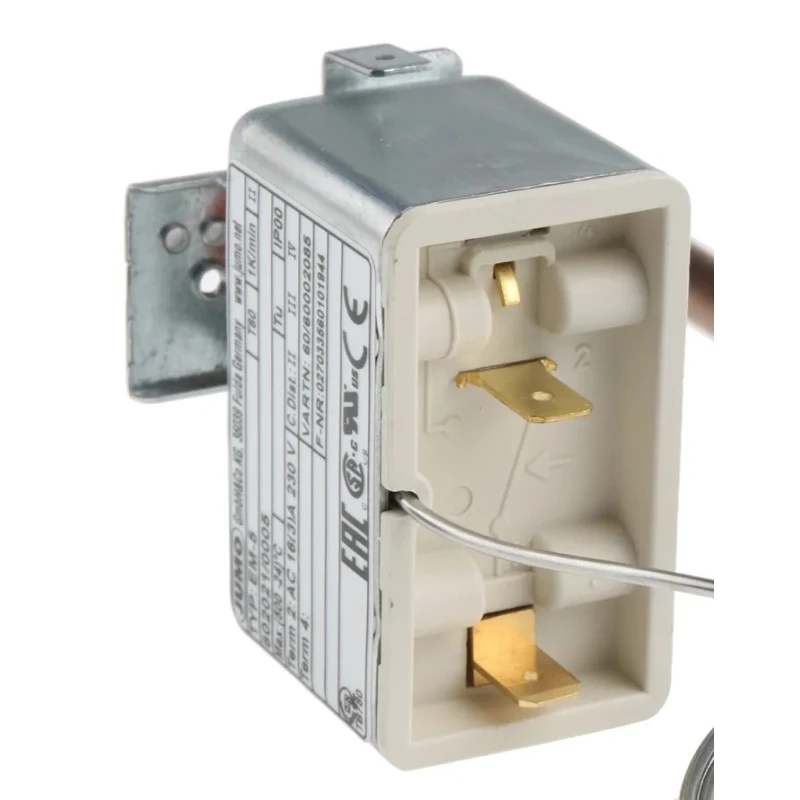

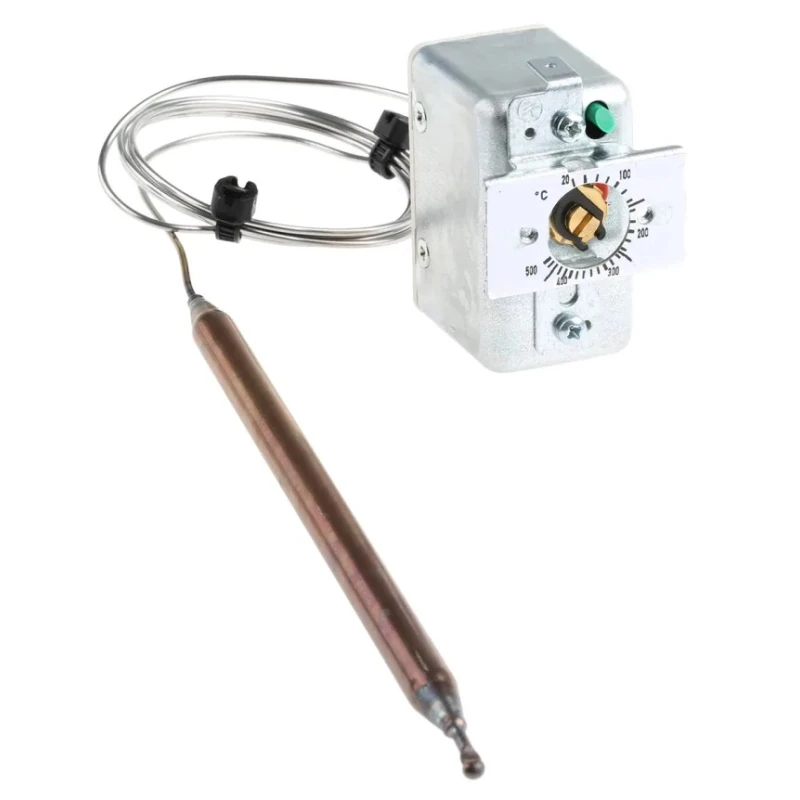

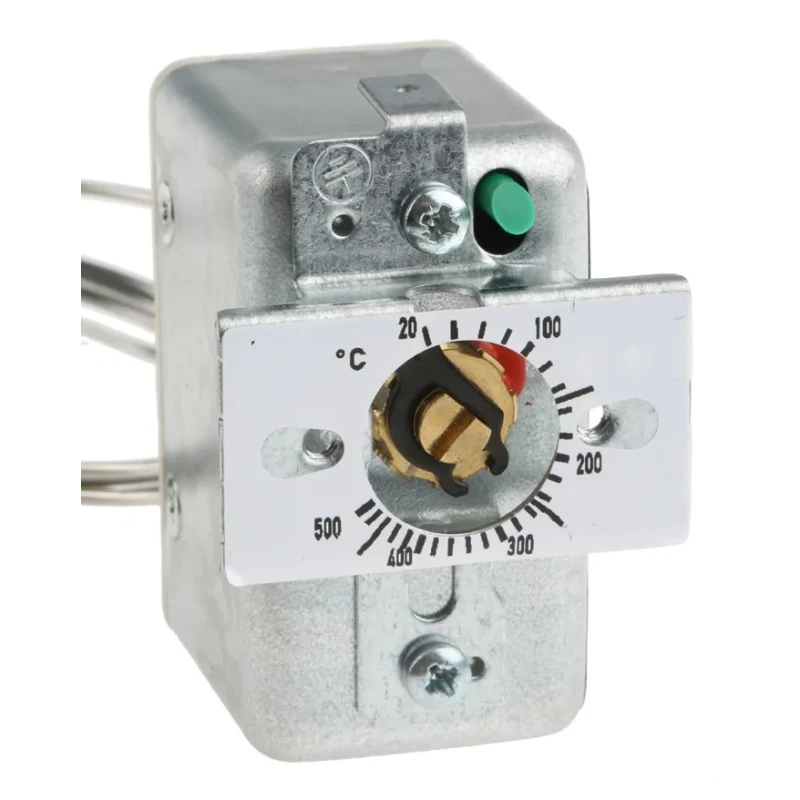

Jumo Capillary Thermostat Panel Mount Temperature Limiter Safety 602021/0005-046-000-50-1000-20-10-00-00-000-00-8

Jumo 602021/0005-046-000-50-1000-20-10-00-00-000-00-8 Capillary Thermostat is a high-quality panel-mounted device for precise temperature control and safety. It functions as a temperature limiter, safety temperature limiter, temperature monitor, and temperature controller, providing reliable thermal process monitoring in industrial, automation, and HVAC systems up to a maximum operating temperature of +500°C.

This thermostat features a capillary tube sensing element that reacts to fluid expansion, activating a microswitch. It incorporates a single pole single throw (SPST) switching contact rated 16A for both AC and DC voltages (230V). The switching differential is set at approximately 2.5%, with some variants at 4%, and the switching point can be adjusted conveniently using a screwdriver to match specific application requirements.

The robust solder tab terminals ensure secure and reliable electrical connections, and the automatic reset functionality adds to operational safety by eliminating manual intervention after a trip.

The device complies with numerous international certifications and standards including CSA-22.2 No. 24, UL 873, DIN EN ISO 13849-1, and EU standard 2014/68/EU, ensuring effective use in critical safety and control environments.

This thermostat is suitable for industrial machinery, automation systems, and equipment requiring reliable temperature monitoring and limiting under harsh operating conditions. Its panel mount design facilitates easy integration into control panels and systems.

Operates within a temperature range from +20°C to +500°C. Equipped with 1 x SPST switching contact rated for 16A at 230V AC/DC. Features solder tab terminals ensuring secure electrical connections. Automatic reset type enhances safety and operational reliability.

Switching differential approximately 2.5% (4% for RS stock no. 357-7840). Switching point is adjustable with a screwdriver for precise calibration. Complies with multiple international standards including CSA, UL 873, DIN EN ISO 13849-1, and 2014/68/EU.

Ideal for use as a temperature limiter, safety temperature limiter, temperature monitor, or controller in industrial and automation applications. Explore the Jumo category and other Thermostat options at EnvMart for comprehensive thermal control solutions.
