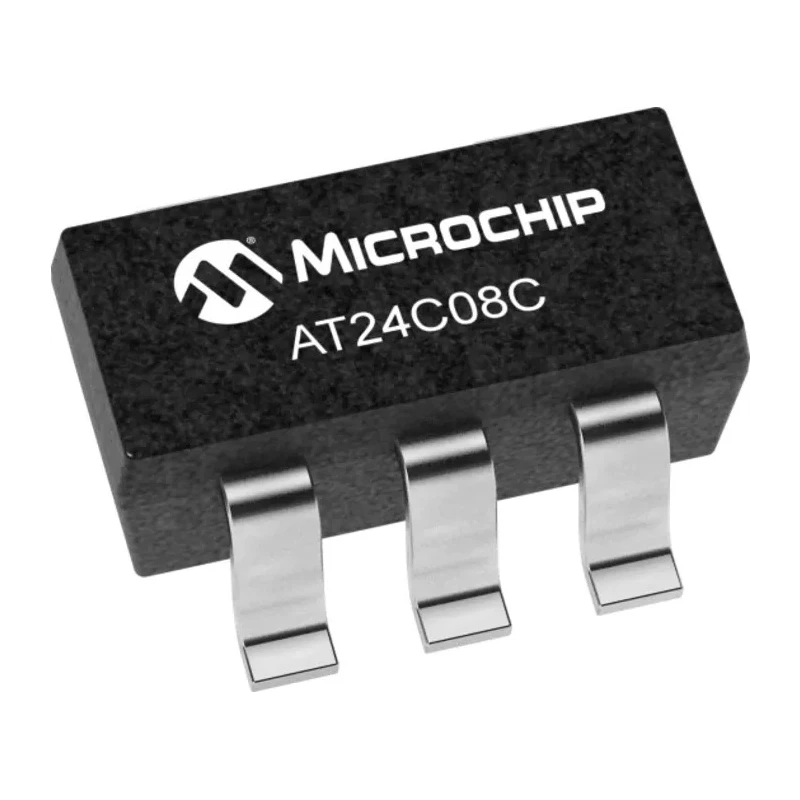

Microchip 8 kB Serial EEPROM 5-Pin SOT-23-5 Serial-I2C 1.7-5.5V 450ns AT24C08C-STUM-T

Microchip AT24C08C-STUM-T serial EEPROM provides a reliable 8 kB non-volatile memory solution in an efficient 5-pin SOT-23-5 surface mount package. Operating on a Serial-I2C (2 Wire) communication protocol with a maximum clock frequency of 1000 kHz, this EEPROM is suitable for a wide range of industrial and commercial electronic applications where low-power and low-voltage operation is critical.

Organized as 1K x 8 bits, the device delivers 8,192 bits of storage with excellent data retention of up to 100 years and robust endurance of over a million program-erase cycles. It supports a voltage supply range from 1.7 V to 5.5 V and features a low supply current of 400 μA, making it ideal for power-sensitive environments.

The device operates reliably over a temperature range from -40°C to +85°C, and provides a fast maximum random access time of 450 ns. Enhanced ESD protection exceeding 4000 V and Schmitt trigger inputs minimize noise susceptibility, ensuring stable performance. The device also offers cascading capability, allowing up to two devices to share a common I2C bus, facilitating memory expansion.

This EEPROM is compliant with RoHS environmental standards, ensuring safe use in various electronic manufacturing contexts. The compact 5-pin SOT-23-5 package supports easy surface mount assembly, reducing circuit board space and improving manufacturing efficiency.

Typical use cases include industrial control systems, consumer electronics, data logging, and embedded system memory storage applications. Its combination of durability, performance, and flexibility make the Microchip AT24C08C-STUM-T a dependable choice for memory solutions in HVAC, manufacturing, automation, and other sectors.

Provides 8,192 bits of EEPROM memory organized as 1,024 words of 8 bits each. Supports Serial-I2C communication protocol with up to 1000 kHz clock frequency. Operates on a voltage range of 1.7 V to 5.5 V with low power consumption.

Offers superior data retention of 100 years and over one million read/write cycles endurance. Compact 5-pin SOT-23-5 surface mount package for space-saving designs. Reliable operation from -40°C to +85°C for harsh industrial environments.

Equipped with ESD protection over 4000 V and noise-reducing Schmitt trigger inputs. Cascading capability enables sharing a common bus for memory expansion. RoHS compliant, ensuring environmental and regulatory standards adherence.

Ideal for industrial, commercial, and embedded electronics memory applications. Explore more Microchip semiconductor products and EEPROM memory solutions on EnvMart for your industrial and commercial electronics needs.
