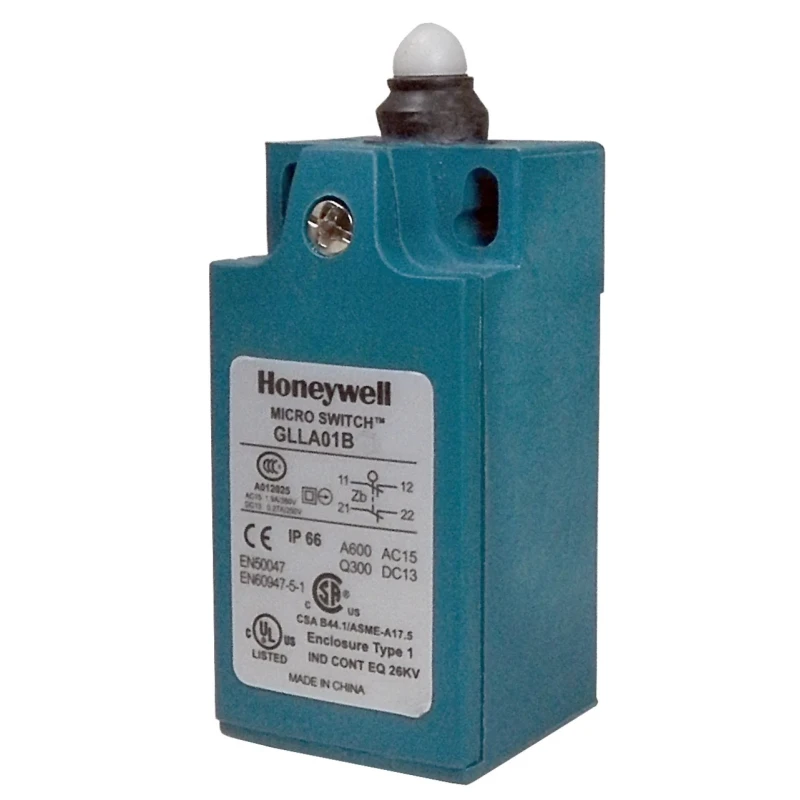

Honeywell Technologies GLL Series Plunger Limit Switch IP66 Plastic Housing 600V AC 1.2A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell Technologies |
| Length | 110mm |
| Model | IP66 |
| Depth | 31.1mm |
| IP Rating | IP66 |
| Width | 30.5mm |
| Housing Material | Plastic |
| Series | GLL |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Multi Directional |
| Contact Configuration | 1 NC/1 NO |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -10°C |
| Switching Current | 1.2A |
| Terminal type | Screw |
| Hazardous Area Certification | CSA, CCC, CE, cULus |
| Standards/Approvals | EN50047 |
| Operating Force | 9.8N |
| Mechanical Life | 5000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 600V ac |
| Conduit Entry | 20 mm |
Key Features
- Equipped with 1 NC and 1 NO contact configuration for versatile switching.
- Rated for switching voltages up to 600V AC and 250V DC with a current of 1.2A.
- Plastic housing provides electrical insulation and IP66 ingress protection for dust and water resistance.
- Mechanical life expectancy of 5 million operations ensures durability in demanding applications.
- Supports multi-directional mounting to adapt to various machine layouts and actuator positions.
- Operates reliably between -10°C and 80°C, suitable for diverse industrial environments.
- Screw terminals enable secure and easy wiring maintenance.
- Certified with CSA, CCC, CE, and cULus standards meeting EN50047 requirements.
Product Description
Honeywell Technologies GLLC01B GLL Series Plunger Limit Switch offers robust performance with an IP66 rated plastic housing to protect against dust and water ingress, suitable for demanding industrial control systems. It supports switching currents up to 1.2A at 600V AC and 250V DC, making it capable of handling a wide range of electrical loads.
This limit switch features a plunger actuator with snap-action contacts configured as 1 NC (Normally Closed) and 1 NO (Normally Open), providing flexible switching options. The device is engineered for a mechanical lifespan of 5 million operations, ensuring long-lasting and reliable operation in automated machinery.
Designed for multi-directional mounting, it can be oriented to fit actuator geometries and installation constraints in automation equipment, conveyor end-of-travel systems, pneumatic and hydraulic actuator monitoring, and machinery control cabinets requiring sealed enclosures.
The plastic housing offers electrical insulation, lightweight construction, and resistance to industrial wear. Screw terminals facilitate secure wiring and easy maintenance. Operating temperature ranges from -10°C to 80°C, suitable for varied industrial environments.
This product meets important international standards and certifications including CSA, CCC, CE, cULus, and complies with EN50047 for mounting assemblies, making it trusted for use in safety and control applications.
Equipped with 1 NC and 1 NO contact configuration for versatile switching. Rated for switching voltages up to 600V AC and 250V DC with a current of 1.2A. Plastic housing provides electrical insulation and IP66 ingress protection for dust and water resistance.
Mechanical life expectancy of 5 million operations ensures durability in demanding applications. Supports multi-directional mounting to adapt to various machine layouts and actuator positions. Operates reliably between -10°C and 80°C, suitable for diverse industrial environments.
Screw terminals enable secure and easy wiring maintenance. Certified with CSA, CCC, CE, and cULus standards meeting EN50047 requirements.
Ideal for industrial automation, manufacturing lines, pneumatic and hydraulic actuator monitoring, safety interlocks, and machinery control applications requiring reliable limit detection with sealed protection. Explore more in EnvMart's Electronics & Electricals > Switches & Sockets > Limit Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch is rated for switching voltages up to 600V AC and 250V DC.
It has a current rating of 1.2A.
The mechanical life expectancy is rated for 5 million operations.
This model uses a plunger actuator with snap-action contacts.
The dimensions are 110mm in length, 30.5mm in width, and 31.1mm in depth.
It operates reliably between -10°C and 80°C.
It supports multi-directional mounting to adapt to various machine layouts and actuator positions.
It features screw terminals for secure wiring and easy maintenance.
It is certified with CSA, CCC, CE, and cULus standards, meeting EN50047 requirements.
The housing has an IP66 ingress protection rating, providing resistance to dust and water.
It features a contact configuration of 1 Normally Closed (NC) and 1 Normally Open (NO).
The limit switch is manufactured in India.
