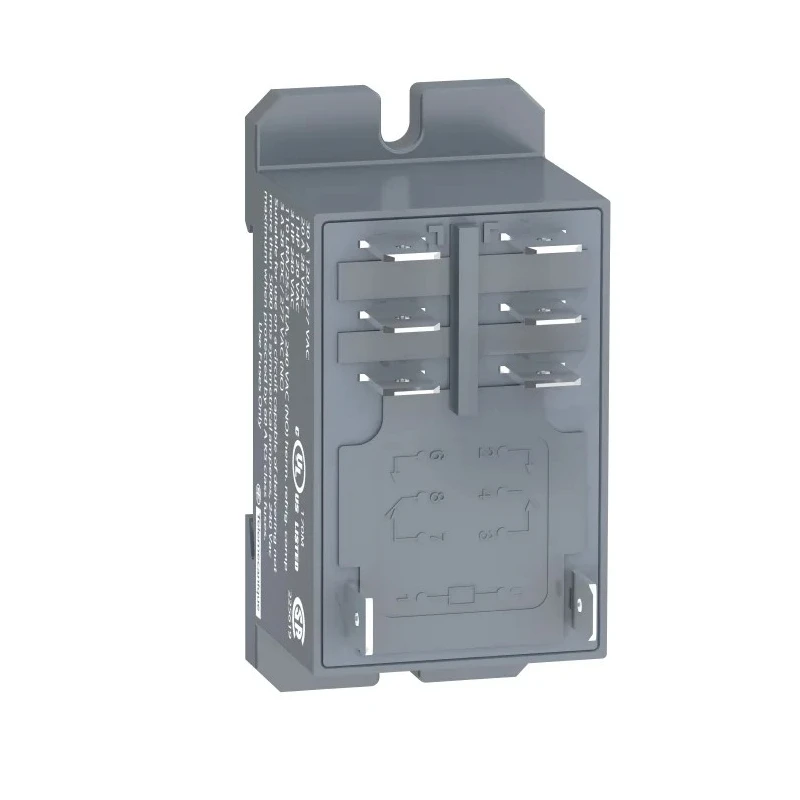

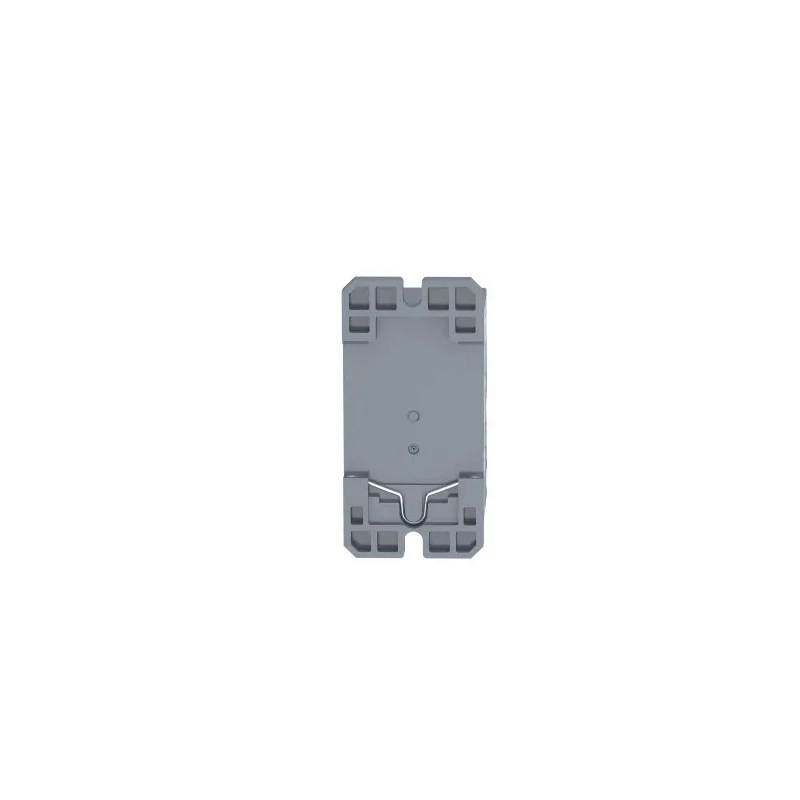

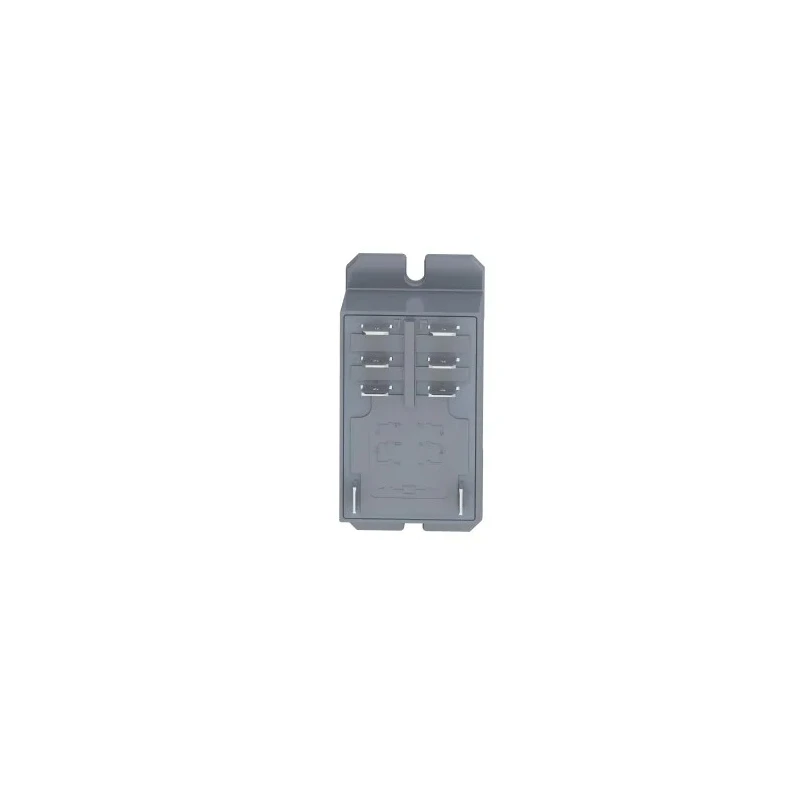

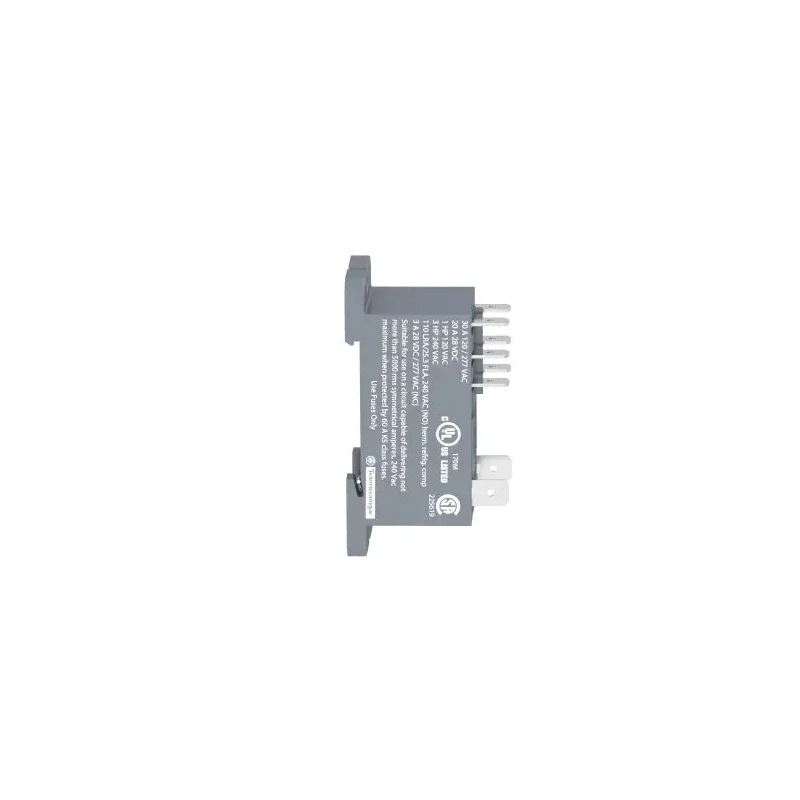

Schneider Electric DIN Rail Power Relay, 12V DC Coil, 25A Switching Current, DPDT RPF2BJD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 68.5mm |
| Length | 33.7mm |
| Model | RPF2BJD |
| Width | 30mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 25A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Resistance | 86Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.7W |
Key Features
- Compact size measuring 33.7mm length, 30mm width, and 68.5mm height for efficient DIN rail mounting.
- DPDT contact configuration to control two circuits simultaneously for space-saving system coverage.
- Coil power consumption of 1.7W ensuring energy-efficient operation.
- Silver alloy contacts rated for switching 28V DC and 250V AC voltages with 25A current capacity.
- Robust design operates reliably in temperatures ranging from -40°C to 55°C for various industrial environments.
- Durability with a typical electrical cycle life of approximately 100,000 operations.
- Plug-in terminal type for straightforward installation and maintenance.
- Suitable for use in telecommunications systems, printed circuit boards, and domestic appliances.
Product Description
Schneider Electric RPF2BJD is a high-performance DIN Rail power relay designed for industrial automation and control applications. Featuring a coil voltage of 12V DC and a 25A switching current, this DPDT relay delivers reliable switching performance within a compact footprint measuring 33.7mm in length, 30mm in width, and 68.5mm in height. Its plug-in terminal design facilitates easy mounting on standard DIN rails, optimizing space in electrical enclosures.
The relay contacts are made of silver alloy, ensuring high conductivity and durability, capable of switching voltages up to 28V DC and 250V AC. It consumes a low coil power of 1.7W, promoting energy-efficient operation, and withstands operating temperatures from -40°C to 55°C, making it suitable for demanding industrial environments.
The contact configuration is double-pole double-throw (DPDT), allowing simultaneous control of two separate circuits, which supports compact and efficient system layouts. This model is built to last for approximately 100,000 electrical cycles, promising long service life and dependable operation in automation systems.
Applications of the Schneider Electric RPF2BJD power relay include use in telecommunications systems, printed circuit boards (PCBs), and domestic appliances, supporting a wide range of electrical switching needs.
Compact dimensions allow neat installation on crowded DIN rails. DPDT design supports control of two circuits at once. Energy-efficient coil power of 1.7W minimizes operational costs. High-quality silver alloy contacts for reliable switching performance.
Wide operating temperature range from -40°C to 55°C. Long electrical cycle life with approximately 100,000 operations. Plug-in terminals simplify installation and maintenance. RoHS compliant ensuring eco-friendly manufacturing standards.
Suitable for telecommunications, PCB applications, and domestic appliances.
The Schneider Electric RPF2BJD relay is part of the Harmony Relay RP series, renowned for quality and performance in industrial control environments. Its DIN rail mountability and robust specifications make it an ideal choice for engineers and technicians seeking dependable power relay solutions.
Explore more products in the Power Relay category for versatile automation components suited to diverse industrial, laboratory, and manufacturing applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 12V DC.
It has a maximum switching current of 25A.
This relay measures 33.7mm in length, 30mm in width, and 68.5mm in height.
It features a double-pole double-throw (DPDT) contact configuration.
The coil power consumption is 1.7W, promoting energy-efficient operation.
It operates reliably within a temperature range of -40°C to 55°C.
The relay uses a plug-in terminal type for straightforward installation and maintenance.
The contacts are made of silver alloy, ensuring high conductivity and durability.
It has a typical electrical cycle life of approximately 100,000 operations.
It is rated for switching voltages up to 28V DC and 250V AC.
This model is suitable for telecommunications systems, printed circuit boards, and domestic appliances.
It complies with RoHS standards, ensuring eco-friendly manufacturing practices.
